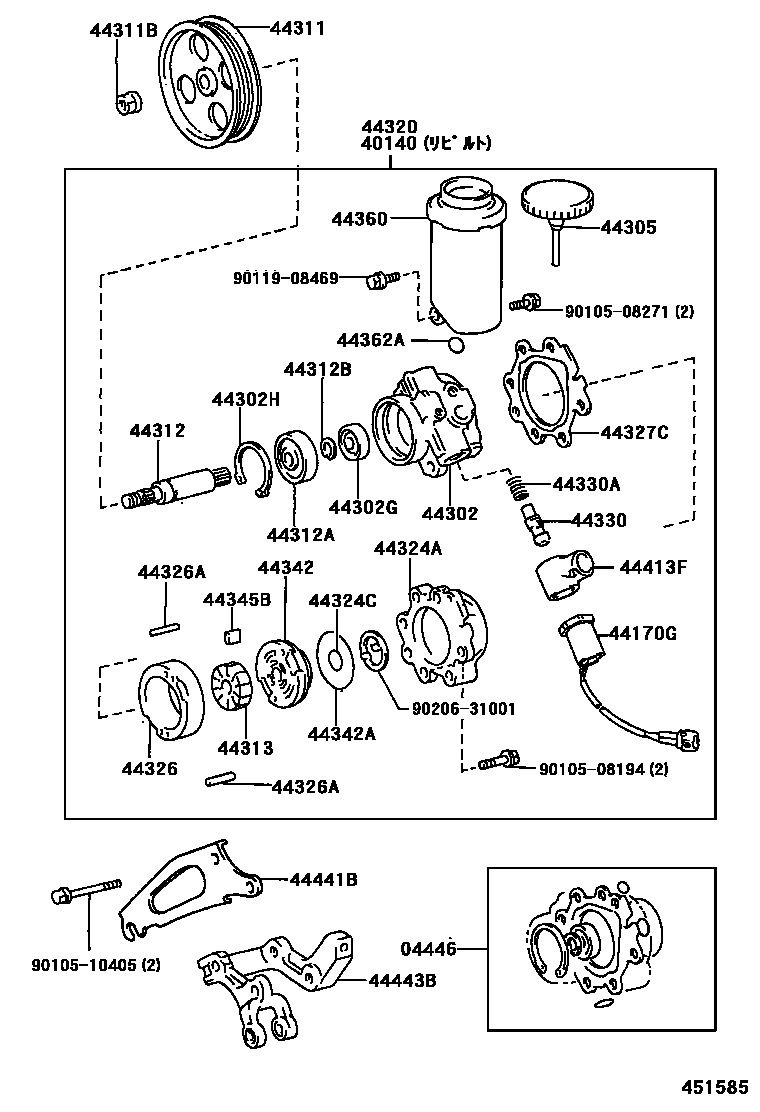

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
44170GVALVE ASSY, SOLENOID(FOR POWER STEERING)
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)
44312SHAFT, VANE PUMP
44312ABEARING(FOR VANE PUMP SHAFT)
sub90363-17013
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44324AHOUSING, PUMP, REAR
44324CRING, O(FOR PUMP HOUSING REAR)
44326RING, CAM(FOR VANE PUMP)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
44327CGASKET, VANE PUMP HOUSING
44330VALVE ASSY, FLOW CONTROL
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
44345BPLATE, VANE PUMP
44360RESERVOIR ASSY, VANE PUMP OIL
44362ARING, O(FOR VANE PUMP OIL RESERVOIR)
44413FTUBE, PRESSURE FEED, NO.2
44441BBRACKET, PUMP, FRONT
44443BBRACKET, VANE PUMP
9010508194
main90105-08194
9010508271
main90105-08271
9010510405
main90105-10405
9011908469
main90119-08469
9020631001
main90206-31001
34 parts on this diagram · 2 diagrams in section
