DISC WHEEL & WHEEL CAP

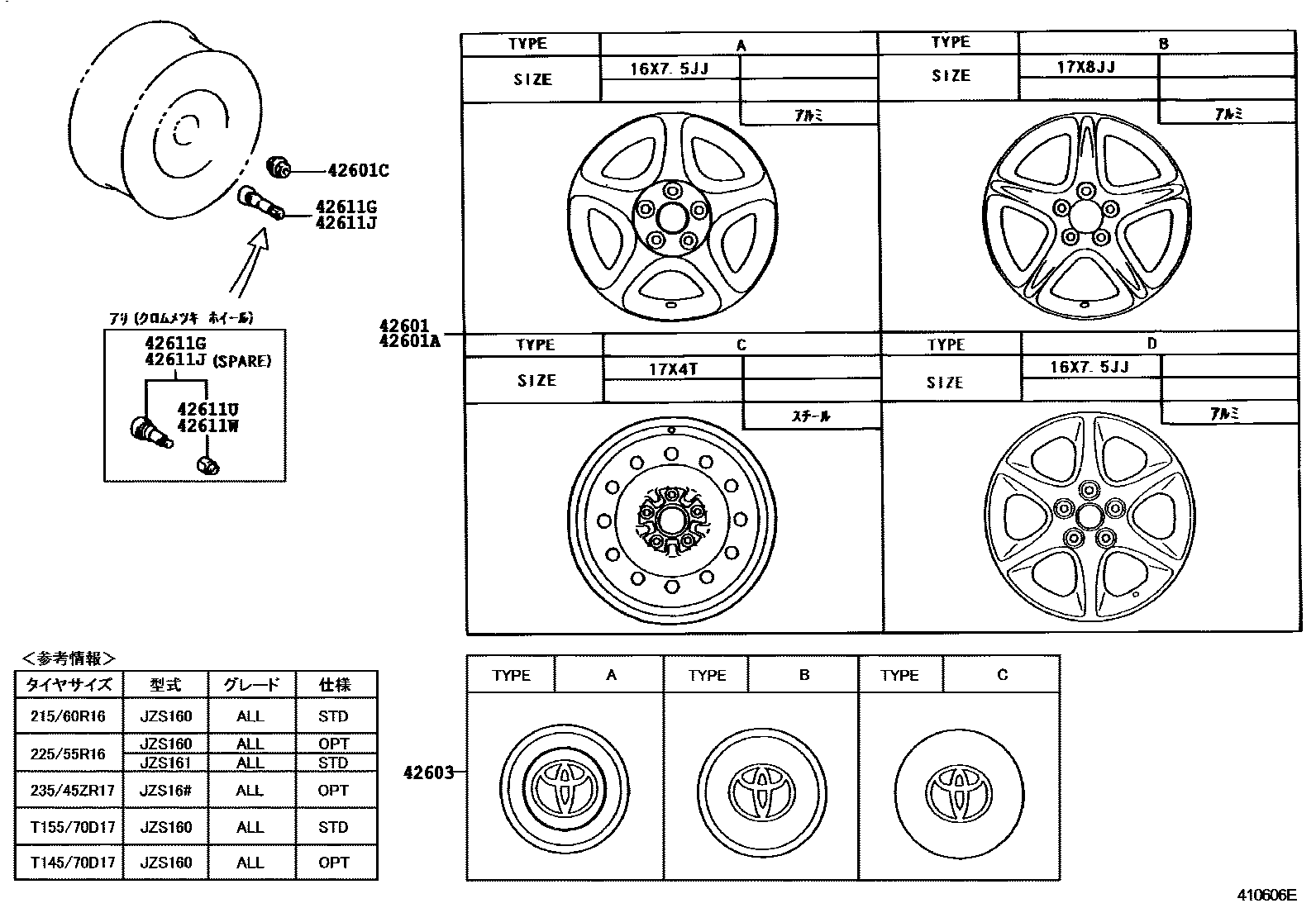

Parts diagram
42601WHEEL, DISC
main42611-3A080×4i199708-199802
main42611-3A081×4i199802-200007
main42611-3A090×4i199708-199802
main42611-3A091×4i199802-200007
main42611-3A120×4i199708-199802
main42611-3A121×4i199802-200007
main42611-3A130×4i199708-199802
main42611-3A131×4i200007
main42611-3A210×4i200007-200107
main42611-3A211×4i200107
main42611-3A230×4i200007
main42611-3A270×4i200107-200204
42601AWHEEL, DISC (FOR SPARE)
main42611-3A080i199708-199802
main42611-3A081i199802-200007
main42611-3A090i199708-199802
main42611-3A091i199802-200007
main42611-3A120i199708-199802
main42611-3A121i199802-200007
main42611-3A130i199708-199802
main42611-3A131i199908
main42611-3A210i200007-200107
main42611-3A211i200107
main42611-3A230i200007
main42611-3A270i200107-200204
main42611-50090i199708
sub42611-50091
42601CNUT, HUB (FOR AXLE)
main90942-01033×20i200007
main90942-01058×20i199708-200007
42603ORNAMENT SUB-ASSY, WHEEL HUB
main42603-30340×4i199708-200007
main42603-30350×4i199708-200007
main42603-30420×4i199708-200007
main42603-30430×4i199908
main42603-33140×4i200007
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009×4i199708
main90942-05028×4i199708
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i199708
main90942-05028i199708
42611UCAP, TIRE VALVE
main90942-05029×4i199708-200007
VERTEX EDITION
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05029i199708

8 parts on this diagram · 3 diagrams in section
