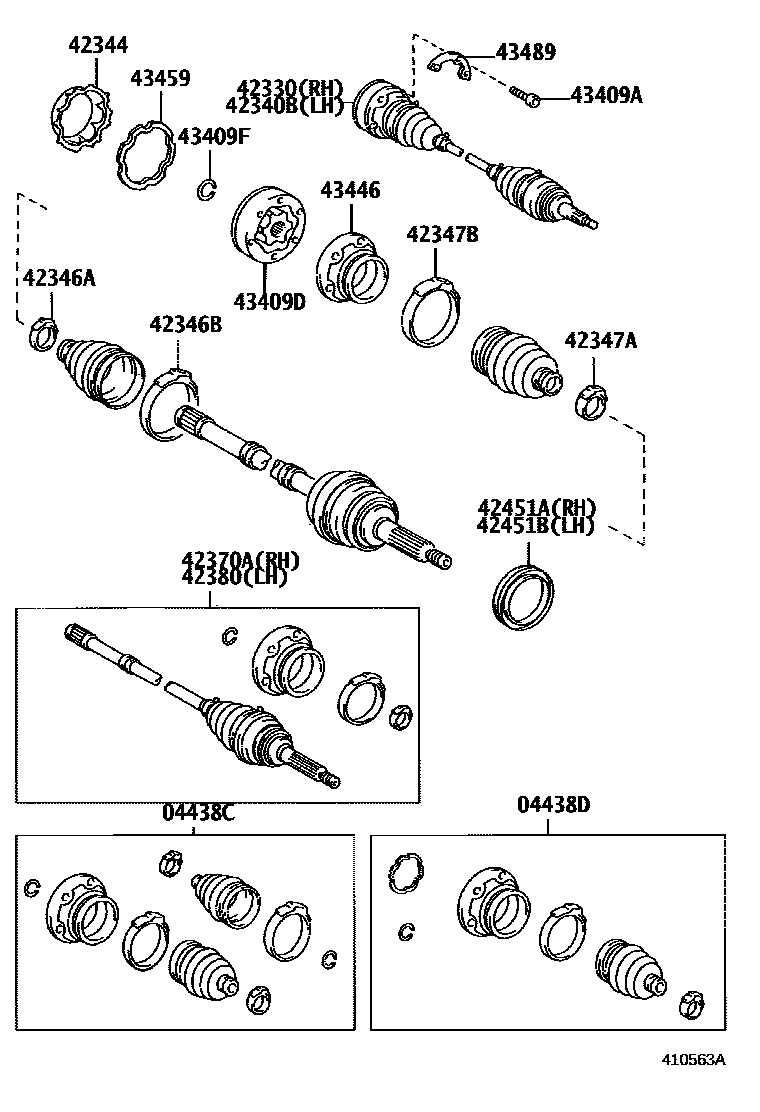

REAR AXLE SHAFT & HUB
42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
43409ABOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE
43409FRING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
43459GASKET, REAR AXLE INBOARD JOINT END COVER
43489WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT
19 parts on this diagram · 2 diagrams in section
