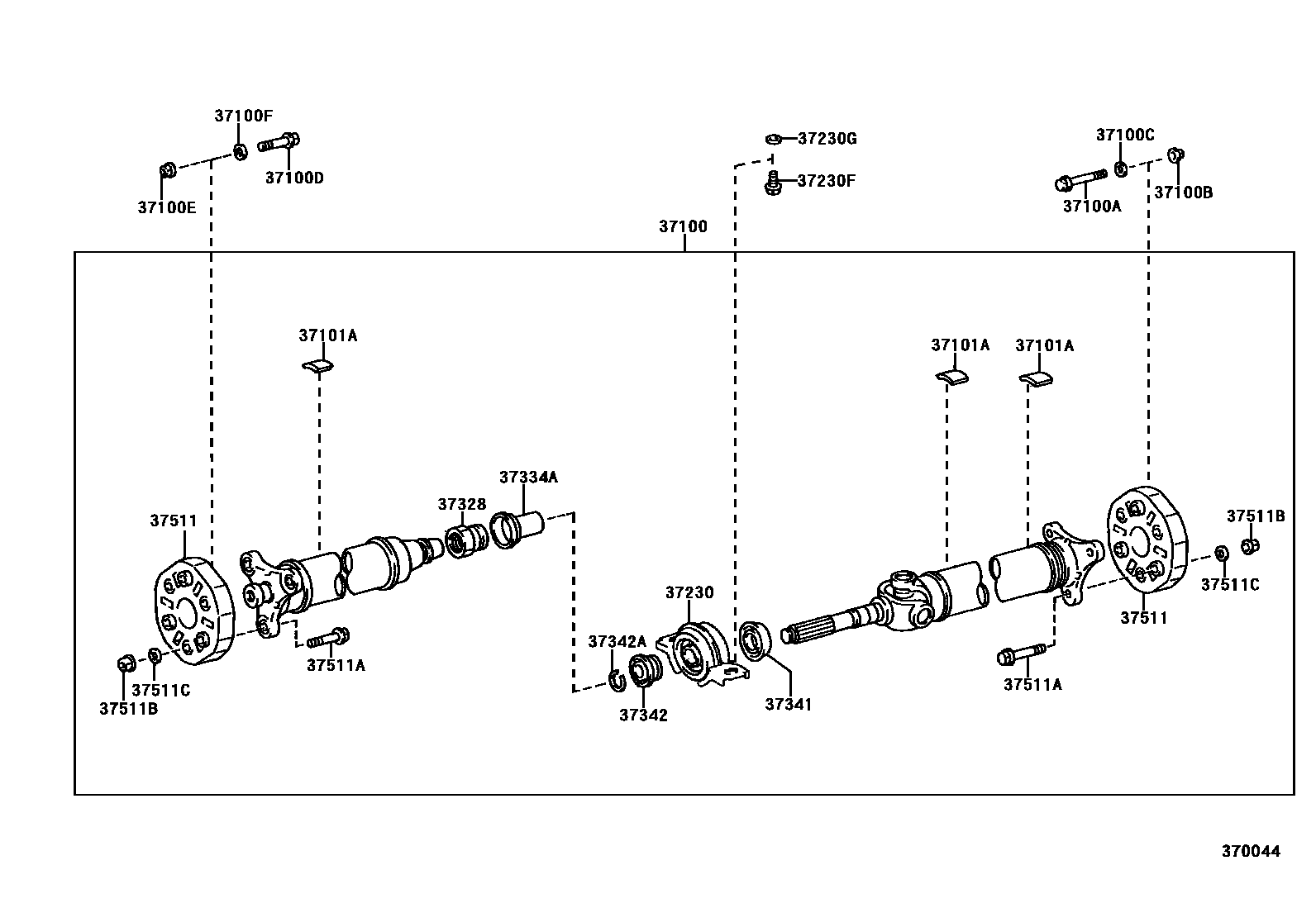

PROPELLER SHAFT & UNIVERSAL JOINT
37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100DBOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100ENUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100FWASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
37328NUT, PROPELLER SHAFT ADJUSTING
37334ABOOT, SLIDING SHAFT
37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342ARING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2)
37511ABOLT (FOR FLEXIBLE COUPLING)
37511BNUT (FOR FLEXIBLE COUPLING)
37511CWASHER, PLATE (FOR FLEXIBLE COUPLING)
20 parts on this diagram · 1 diagram in section
