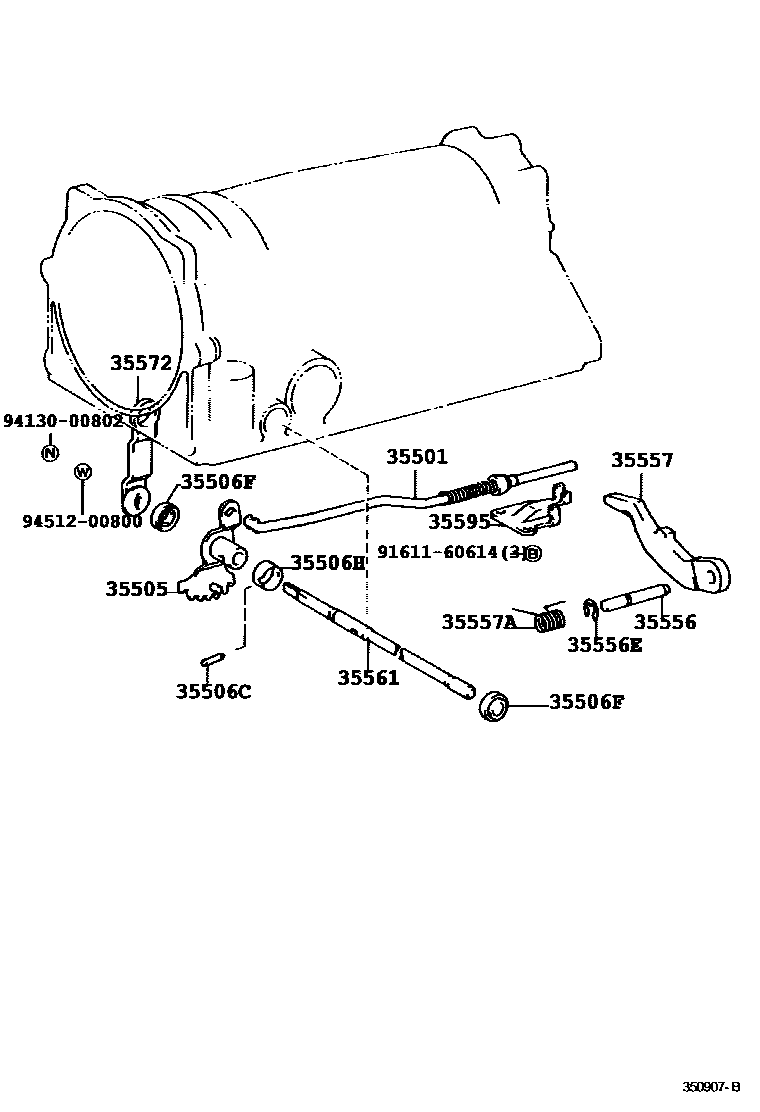

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E 0003 1A650E

35501ROD SUB-ASSY, PARKING LOCK

main35501-30020iJZS160200007-200501

main35501-60010iJZS16#..4FC199708-200501

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-50020iJZS16#199708-200501

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iJZS16#199708-200501

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iJZS16#199708-200501

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iJZS160199708-200007

main90560-20025iJZS16#200302-200501

35556SHAFT, PARKING LOCK PAWL

main35556-30020iJZS16#..4FC199708-200501

main35556-30030iJZS160200007-200501

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iJZS16#199708-200501

35557PAWL, PARKING LOCK

main35557-60020iJZS16#..4FC199708-200501

main35590-30010iJZS160200007-200501

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iJZS16#..4FC199708-200501

main90949-03065iJZS160200007-200501

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iJZS160199708-200007

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30070iJZS160199708-200007

main35572-30080iJZS160200007-200501

35595BRACKET, PARKING LOCK PAWL

main35595-30020iJZS160200007-200501

main35595-60010iJZS16#..4FC199708-200501

9161160614

main91611-60614

9413000802

main94130-00802

9451200800

main94512-00800

15 parts on this diagram · 2 diagrams in section
