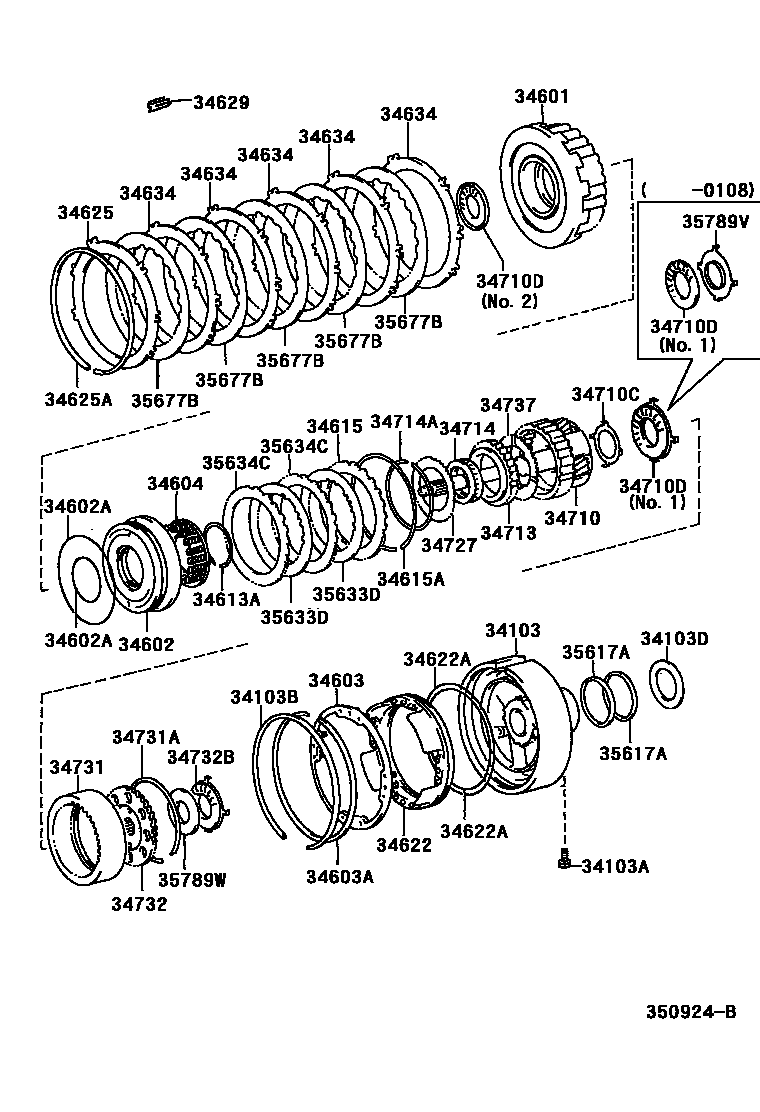

OVERDRIVE GEAR (ATM)
34103SUPPORT SUB-ASSY, OVERDRIVE
34103ABOLT (FOR OVERDRIVE SUPPORT)
34103BRING, HOLE SNAP (FOR OVERDRIVE SUPPORT)
34103DRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR)
34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)
34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN
34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)
34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN
34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)
34615FLANGE, OVERDRIVE CLUTCH
34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)
34622PISTON, OVERDRIVE BRAKE
34625FLANGE, OVERDRIVE BRAKE, NO.1
34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)
34629SPRING, OVERDRIVE BRAKE PLATE STOPPER
34634PLATE, OVERDRIVE BRAKE
34710GEAR ASSY, OVERDRIVE PLANETARY
34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)
34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)
34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)
34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)
34727PLATE, RETAINING (FOR OVERDRIVE)
34731GEAR, OVERDRIVE PLANETARY RING
34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)
34732FLANGE, OVERDRIVE PLANETARY RING GEAR
34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)
34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3
35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)
35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)
35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)
35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)
35789VRACE, THRUST BEARING
35789WRACE, THRUST BEARING
37 parts on this diagram · 1 diagram in section
