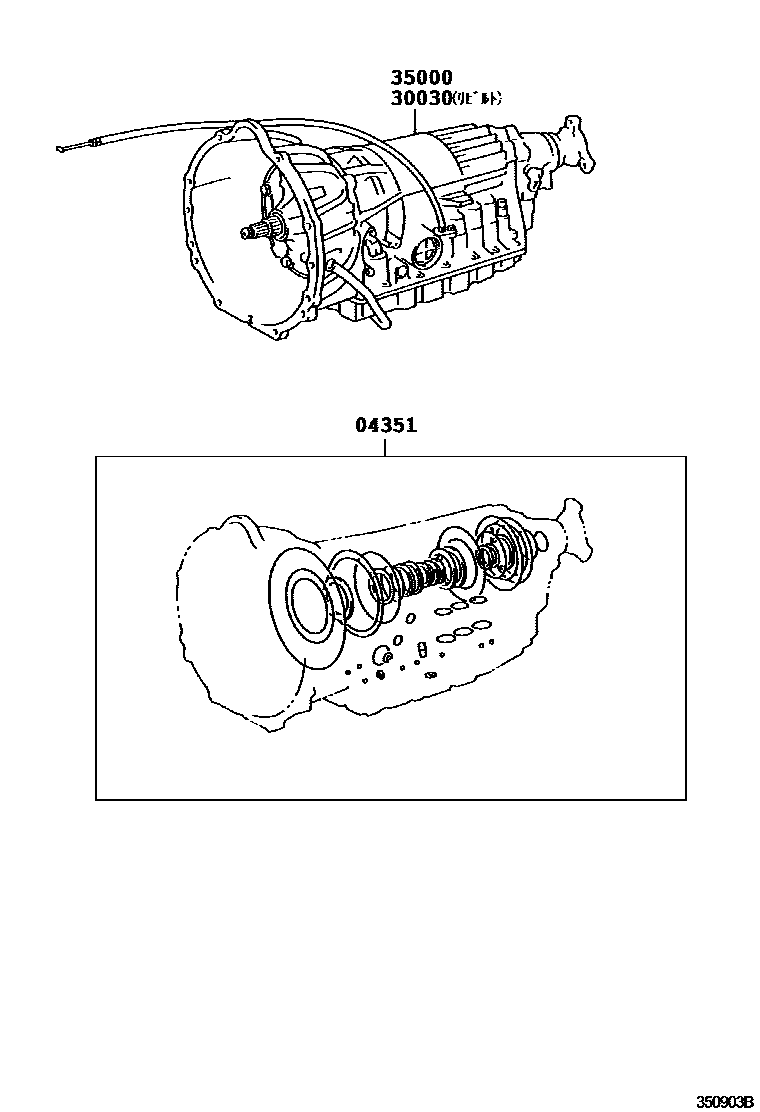

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A340E 0003 1A650E

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30290iJZS160199708-200007

main04351-30360iJZS160200007-200210

main04351-30361iJZS160200210-200501

main04351-30370iJZS161199708-200210

main04351-30371iJZS161200210-200501

30030TRANSMISSION ASSY, REBUILT

main30030-3F450iJZS161199708-200501

main30030-3F460iJZS160199708-200007

main30030-3F540iJZS160200007-200501

35000TRANSMISSION ASSY, AUTOMATIC

main35000-3F450iJZS161199708-200501

main35000-3F460iJZS160199708-200007

main35000-3F540iJZS160200007-200501

3 parts on this diagram · 2 diagrams in section
