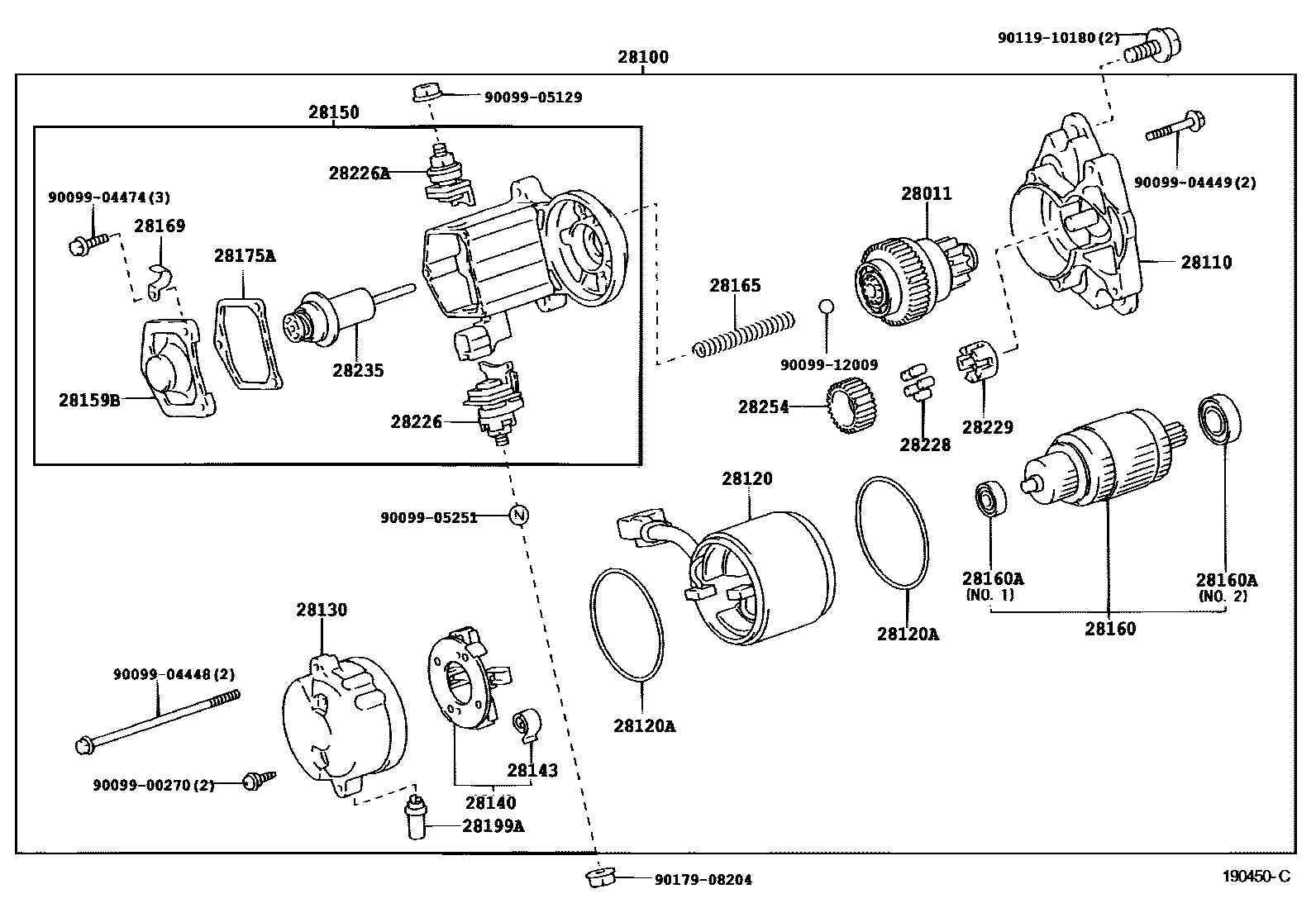

STARTER

0001 112V 1.4KW 0002 112V 1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-46240i2JZGE..JZS160200107-200501

12V 1.0KW

main28011-70020i2JZGE..JZS160199708-200107

12V 1.0KW

main28011-76070i2JZ#..JZS16#199708-200501

12V 1.4KW

28100STARTER ASSY

main28100-46140i2JZ#..JZS16#199708

main28100-46200i2JZGE..JZS160199708-200107

main28100-46240i2JZGE..JZS160200107

28110HOUSING ASSY, STARTER DRIVE

main28110-46090i2JZ#..JZS16#199708-200501

12V 1.4KW

main28110-46130i2JZGE..JZS160199708-200107

12V 1.0KW

main28110-46240i2JZGE..JZS160200107-200501

28120YOKE ASSY, STARTER

main28120-66040i2JZ#..JZS16#199708-200501

12V 1.4KW

main28120-70050i2JZGE..JZS160199708-200501

12V 1.0KW

28120ARING, O(FOR STARTER YOKE)

main90099-14064i2JZ#..JZS16#199708-200501

12V 1.4KW

main90099-14092i2JZGE..JZS160199708-200501

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15190i2JZGE..JZS160199708-200501

12V 1.0KW

main28130-46090i2JZ#..JZS16#199708-200501

12V 1.4KW

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i2JZGE..JZS160199708-200501

12V 1.0KW

main28140-76070i2JZ#..JZS16#199708-200501

12V 1.4KW

28143SPRING, STARTER BRUSH

main28143-70020i2JZGE..JZS160199708-200501

12V 1.0KW

main90099-17112i2JZ#..JZS16#199708-200501

12V 1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-46150i2JZ#..JZS16#199708-200501

12V 1.4KW

main28150-70030i2JZGE..JZS160199708-200501

sub28150-22100

28159BCOVER, MAGNET SWITCH

main28159-55050i2JZGE..JZS160199708-200501

28160ARMATURE ASSY, STARTER

main28160-70050i2JZGE..JZS160199708-200501

12V 1.0KW

main28160-74070i2JZ#..JZS16#199708-200501

12V 1.4KW

28160ABEARING, STARTER ARMATURE

main90099-10196i2JZ#..JZS16#199708-200501

main90099-10197i2JZ#..JZS16#199708-200501

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-76070i2JZ#..JZS16#199708-200501

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-55050i2JZ#..JZS16#199708

28175AGASKET, MAGNET SWITCH COVER

main28175-55050i2JZGE..JZS160199708-200501

28199APROTECTOR, DUST STARTER

main28199-46080i2JZGE..JZS160199708-200501

12V 1.0KW

main28199-74110i2JZ#..JZS16#199708-200501

12V 1.4KW

28226STARTER KIT, BATTERY TERMINAL

main28226-22050i2JZ#..JZS16#199708-200501

28226ASTARTER KIT, MOTOR TERMINAL

main28226-74070i2JZGE..JZS160199708-200501

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i2JZ#..JZS16#199708-200501

28229RETAINER, STARTER IDLE GEAR

main28229-74070i2JZ#..JZS16#199708-200501

28235PLUNGER, MAGNET SWITCH

main28235-55050i2JZ#..JZS16#199708-200501

28254PINION, STARTER IDLE GEAR

main28254-74070i2JZ#..JZS16#199708-200501

9009900270

main90099-00270

9009904448

main90099-04448

9009904449

main90099-04449

9009904474

main90099-04474

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9011910180

main90119-10180

9017908204

main90179-08204

31 parts on this diagram · 2 diagrams in section
