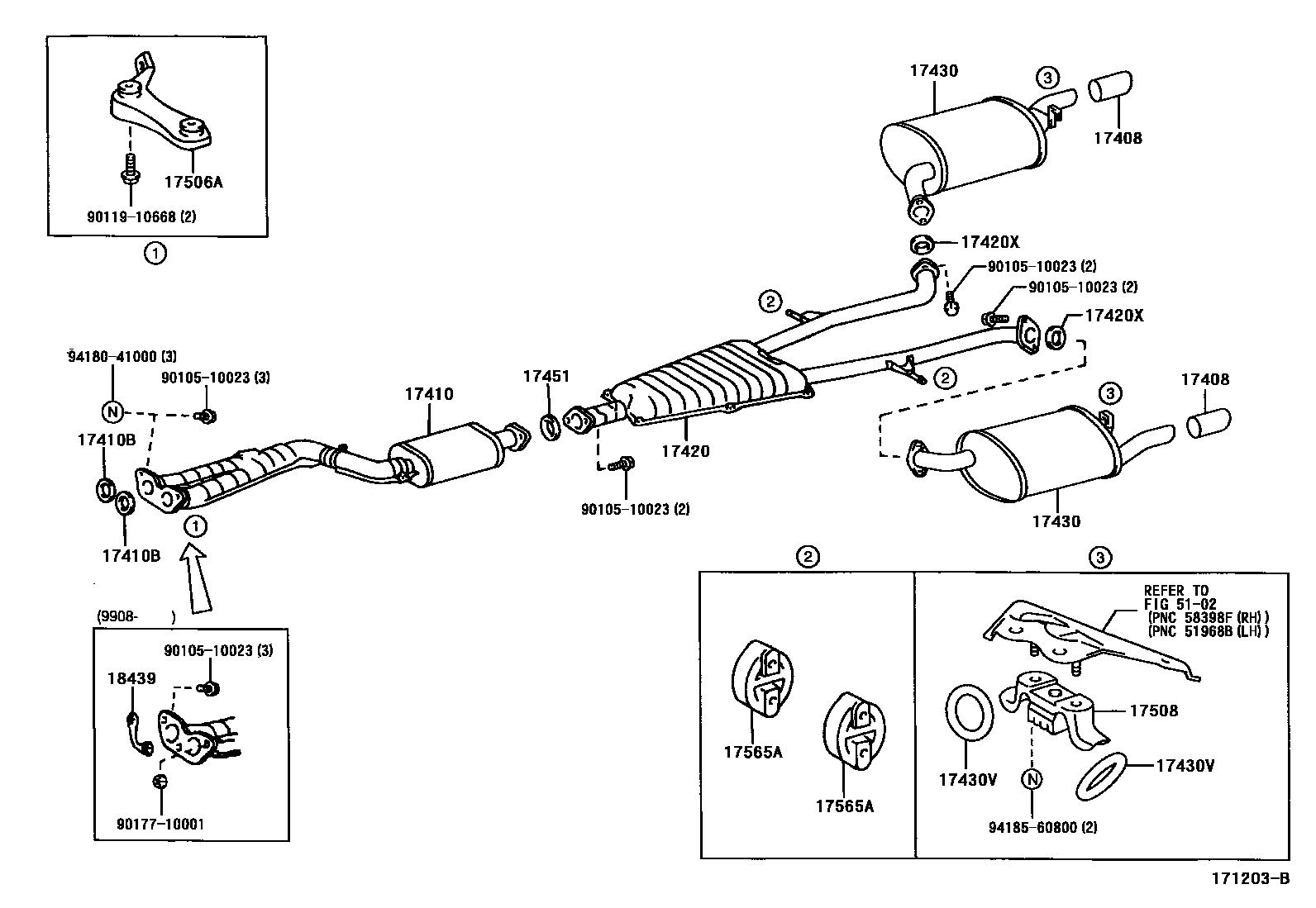

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
18439BRACKET, CONVERTOR PROTECTOR, REAR
5102SUSPENSION CROSSMEMBER & UNDER COVER
9010510023
main90105-10023
9011910668
main90119-10668
9017710001
main90177-10001
9418041000
main94180-41000
9418560800
main94185-60800
18 parts on this diagram · 3 diagrams in section
