V-BELT

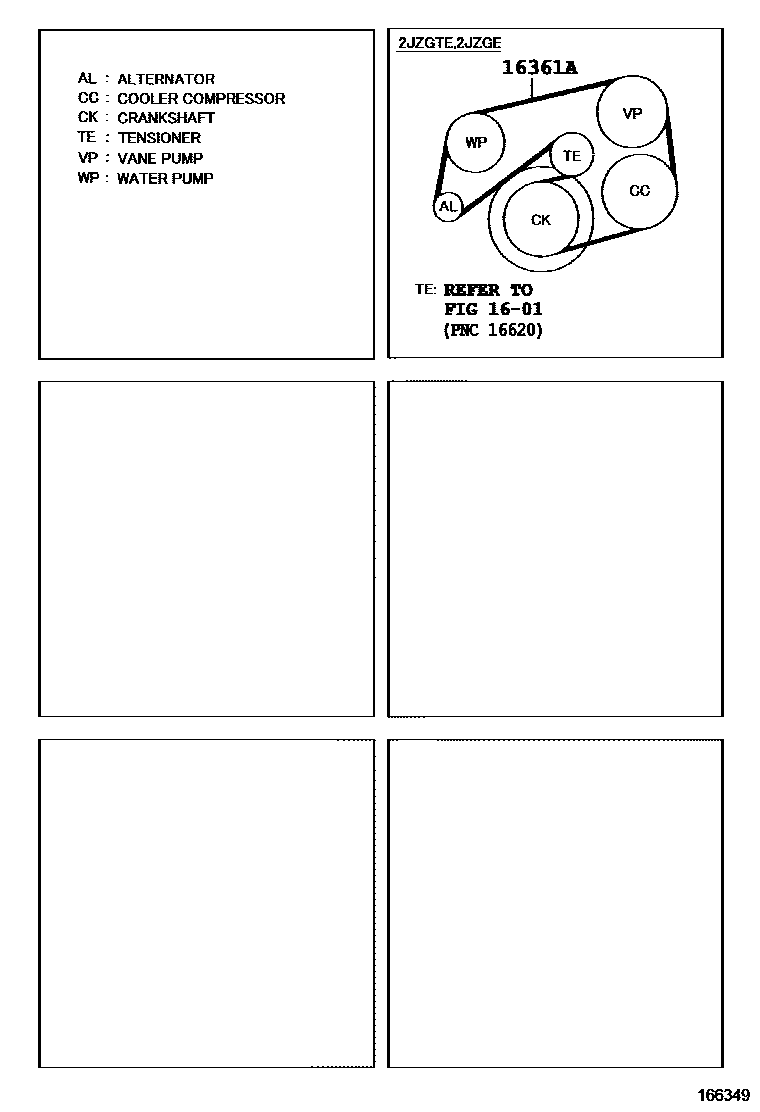

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02412i199708-200406

main99366-D1930i199802-200410

2 parts on this diagram · 1 diagram in section
