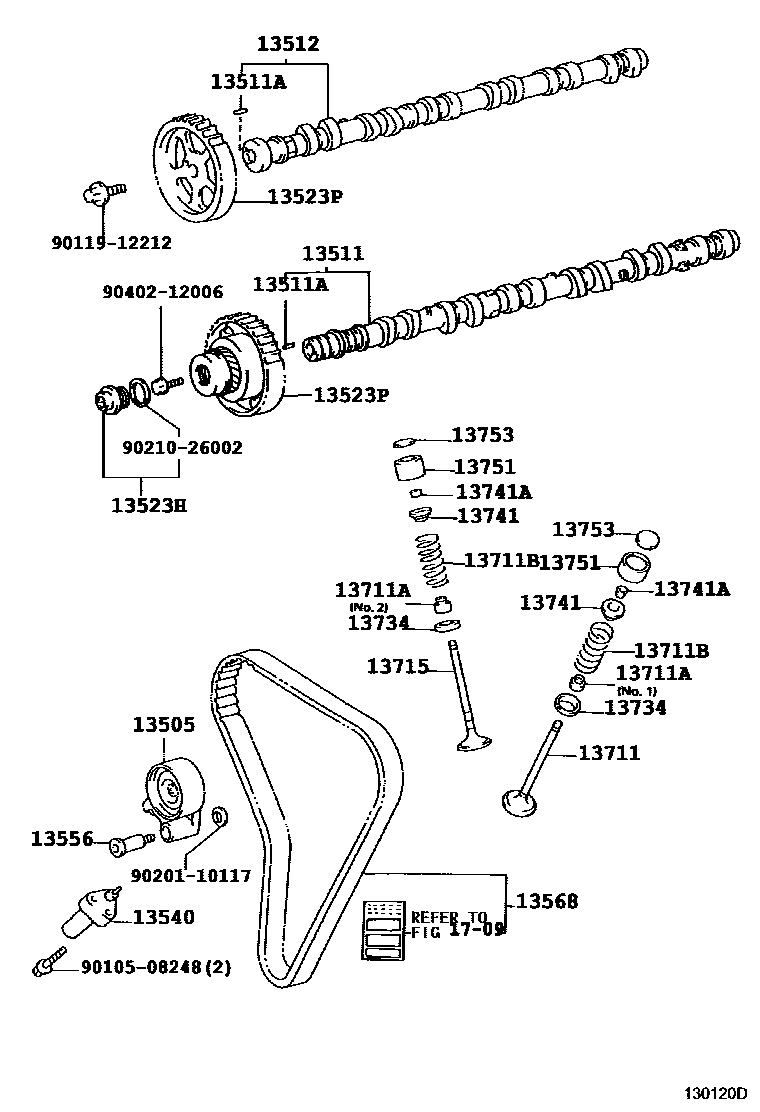

CAMSHAFT & VALVE
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
13512CAMSHAFT, NO.2
13523HPLUG, STRAIGHT SCREW W/HEAD(FOR CAMSHAFT TIMING PULLEY)
13523PPULLEY, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
sub13753-74010
sub13753-74020
sub13753-74030
sub13753-74030
sub13753-74040
sub13753-74050
sub13753-74060
sub13753-74070
sub13753-74070
sub13753-74080
sub13753-74090
sub13753-74100
sub13753-74110
sub13753-74110
sub13753-74120
sub13753-74130
sub13753-74140
sub13753-74150
sub13753-74150
sub13753-74160
sub13753-74170
sub13753-74180
sub13753-74190
sub13753-74190
sub13753-74200
sub13753-74210
sub13753-74220
sub13753-74230
sub13753-74230
sub13753-74240
sub13753-74250
sub13753-74260
sub13753-74270
sub13753-74270
sub13753-74280
sub13753-74290
sub13753-74300
sub13753-74310
sub13753-74310
sub13753-74320
sub13753-74330
1709
9010508248
main90105-08248
9011912212
main90119-12212
9020110117
main90201-10117
9021026002
main90210-26002
9040212006
main90402-12006
24 parts on this diagram · 1 diagram in section
