MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-46120i2JZ#..JZS16#199708-199908

main12311-46140i2JZGE..JZS160199908-200501

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-46110i2JZ#..JZS16#199708-199908

main12315-46120i2JZGE..JZS160199908-200501

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-46190i2JZGE..JZS160199708-200501

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-46160i2JZ#..JZS16#199708

12381STABILIZER, ENGINE MOUNTING

main12381-46070i2JZGE..JZS160199708-200501

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-46020i2JZGE..JZS160199708-200103

main12391-46020i2JZGTE..JZS161200106-200501

main12391-46040i2JZGTE..JZS161200106-200501

main12391-46040i2JZGTE..JZS161200103-200106

main12391-46040i2JZGE..JZS160200103-200501

9010510417

main90105-10417

9010510429

main90105-10429

9017812018

main90178-12018

9017912153

main90179-12153

91671J0820

main91671-J0820

9415180841

main94151-80841

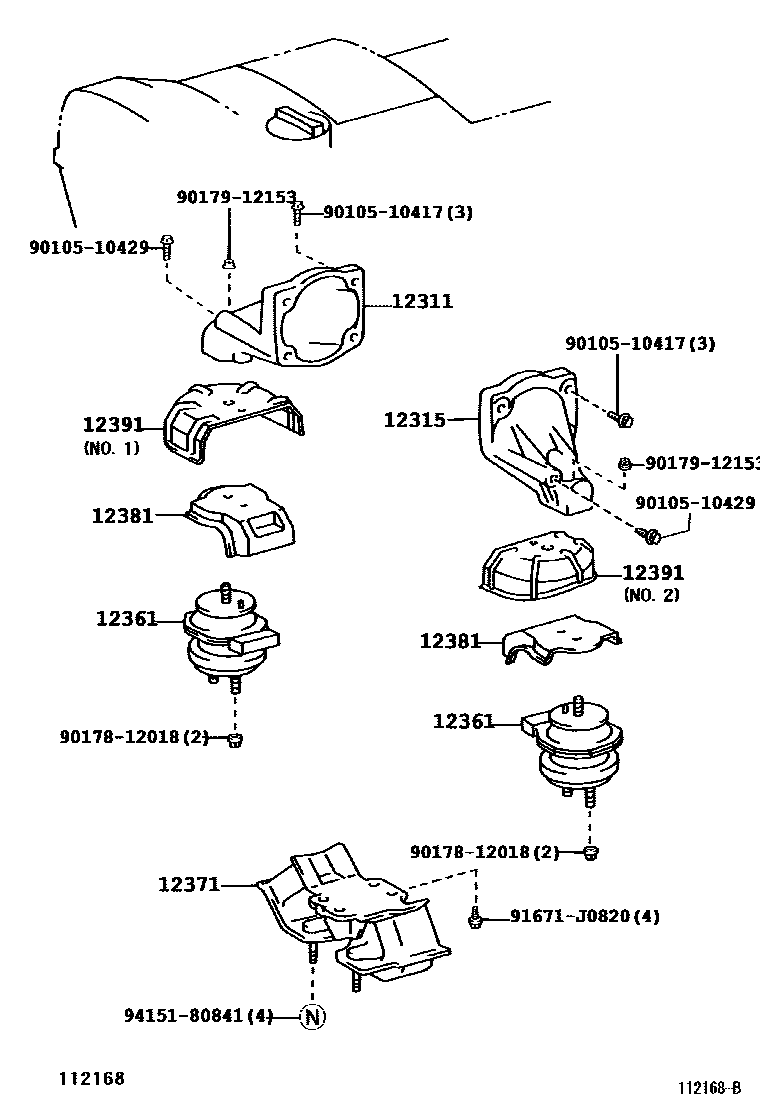

12 parts on this diagram · 1 diagram in section
