STANDARD TOOL

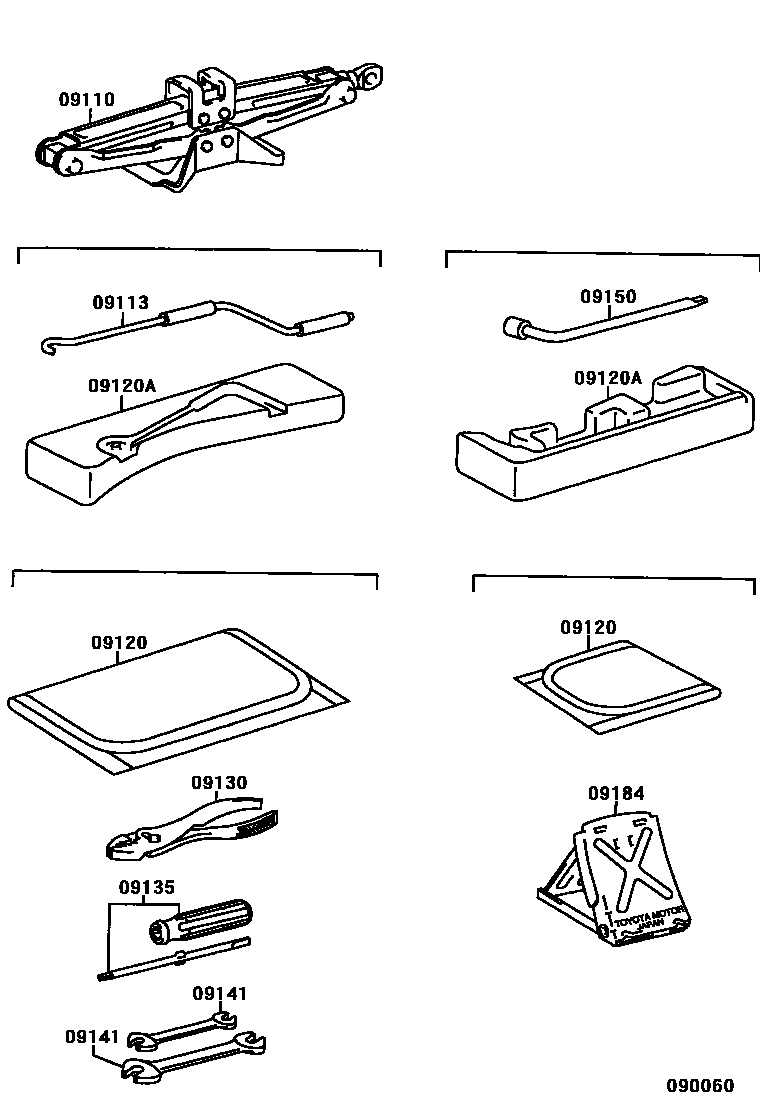

Parts diagram
09110JACK ASSY
main09111-30120i199708-200107
main09111-50050i200107-200112
sub09111-50051
main09111-50051i200112
sub09111-76011
09113HANDLE, JACK
main09113-14030i199708-199909
main09113-22020i199909
09120BAG, TOOL
main09120-24010i199708
main09120-28040i199708
09120ACASE, TOOL
main09120-30090i199708-199909
main09120-30100i199708-199909
09130PLIERS
main99913-11500i199708
09135DRIVER, SCREW
main99915-10700i199708
09141SPANNER
main99914-10810i199708
main99914-11214i199708
09150WRENCH, HUB NUT BOX
main09150-26010i199708-199910
main09150-40010i199910
09184STOPPER, WHEEL
main09184-00010i199708-200501

9 parts on this diagram · 1 diagram in section
