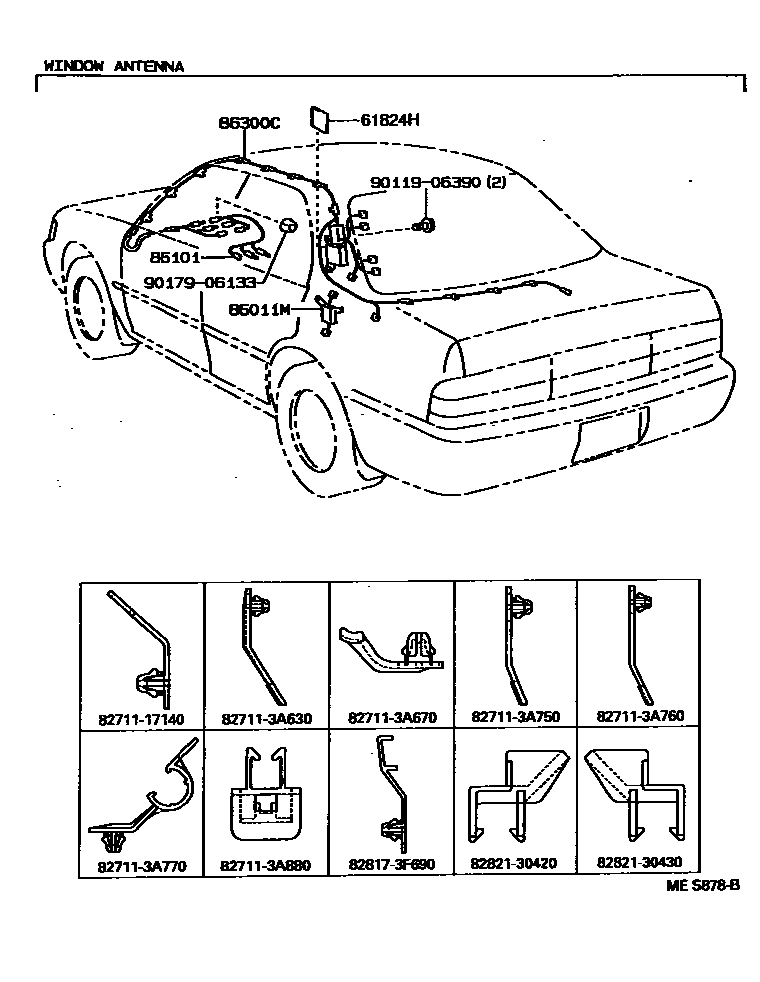

ANTENNA

61824HPLATE, NOISE CONTROL, NO.1

main61824-30010iJZS147,UZS143199608-199708

86011MFILTER, NOISE

main90980-05212iJZS147,UZS143199110-199708

86101CORD SUB-ASSY, ANTENNA

main86101-30390iJZS147,UZS143199110-199508

main86101-30510iJZS147,UZS143199408-199508

main86101-30640iJZS147,UZS143199608-199708

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-30680iJZS147,UZS143199110-199508

main86300-3A050iJZS147,UZS143199408-199508

8271117140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-17140

827113A630WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A630

827113A670WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A670

827113A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A750

827113A760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A760

827113A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A770

827113A880WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A880

828173F690PROTECTOR, WIRING HARNESS, NO.1

main82817-3F690

8282130420RETAINER, HEADLAMP HARNESS

main82821-30420

8282130430RETAINER, HEADLAMP HARNESS

main82821-30430

9011906390

main90119-06390

9017906133

main90179-06133

16 parts on this diagram · 1 diagram in section
