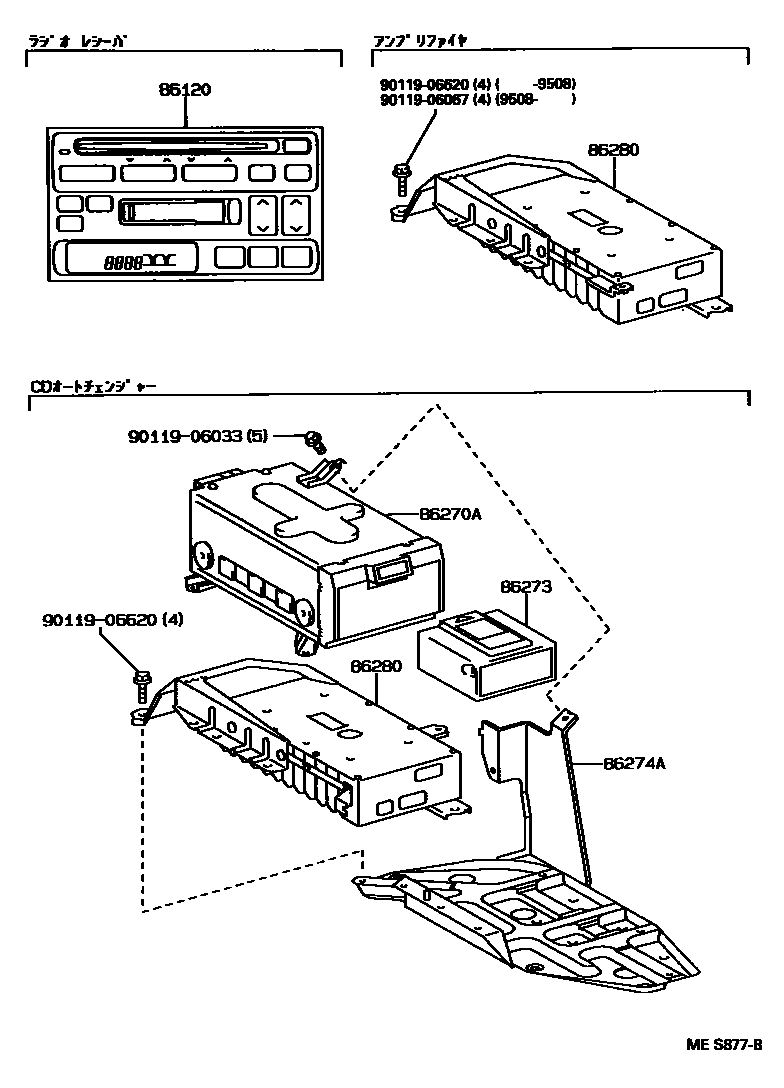

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-3A190iJZS147199110-199210

main86120-3A200iJZS147,UZS143199110-199708

main86120-3A250iJZS147199210-199408

main86120-3A360iJZS147..Q199408-199708

86270ADISC PLAYER ASSY

main86270-30050iJZS147,UZS143199110-199408

main86270-30051iJZS147,UZS143199408-199708

86273MAGAZINE, DISC PLAYER

main86273-33010iJZS147,UZS143199110-199708

86274ABRACKET, DISC PLAYER

main86274-30030iUZS143199210-199708

main86274-30100iJZS147,UZS143..V,Z; JZS147..Q199408-199708

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-30180iJZS147,UZS143199110-199708

main86280-30190iJZS147,UZS143199110-199408

9011906033

main90119-06033

9011906067

main90119-06067

9011906620

main90119-06620

8 parts on this diagram · 2 diagrams in section
