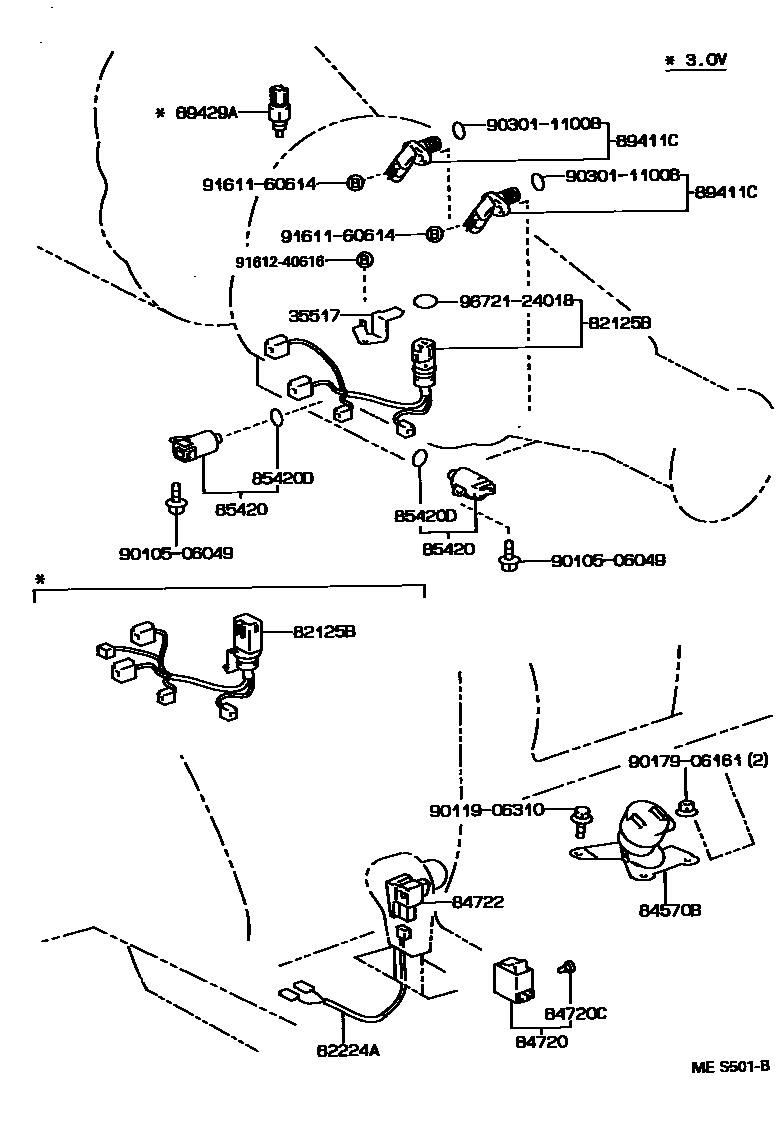

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

35517PLATE, TRANSMISSION WIRE LOCK

main35517-50010iJZS147199110-199708

82125BWIRE, TRANSMISSION

main82125-30170iJZS147..V199110-199708

main82125-30380iJZS147..Q199308-199708

main82125-50010iJZS147..Q199110-199308

main82125-50030iUZS143199210-199708

82224AWIRE, OVERDRIVE

main82224-30040iJZS147,UZS143199110-199708

84570BSWITCH ASSY, KICK DOWN

main84570-30020iJZS147,UZS143..V,Z199110-199308

main84570-30030iJZS147,UZS143..V,Z199110-199308

84720SWITCH ASSY, PATTERN SELECT

main84720-30170iJZS147,UZS143199110-199708

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10320iJZS147,UZS143199110-199708

84722SWITCH, TRANSMISSION CONTROL

main84722-30170-B0iJZS147,UZS143199110-199708

SHADOW GRAY,TRIM1#

main84722-30170-E1iJZS147,UZS143199110-199708

DK.ROSE,TRIM0#

main84722-30170-G0iJZS147,UZS143199110-199708

SPRUCE GRAY,TRIM6#

85420SOLENOID ASSY, TRANSMISSION

main85420-30190iJZS147..Q199308-199708

LOCK UP SOLENOID

main85420-50020iJZS147,UZS143..V,Z199110-199708

main85420-50020iJZS147..Q199308-199708

SHIFT SOLENOID

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iJZS147199110-199708

89411CSENSOR, SPEED

main89411-50010iJZS147199110-199708

89429ASENSOR, TEMPERATURE

main89429-30010iJZS147..V199110-199708

main89429-50010iUZS143199210-199708

main89429-50020iUZS143199210-199708

9010506049

main90105-06049

9011906310

main90119-06310

9017906161

main90179-06161

9030111008

main90301-11008

9161160614

main91611-60614

9161240616

main91612-40616

9672124018

main96721-24018

18 parts on this diagram · 2 diagrams in section
