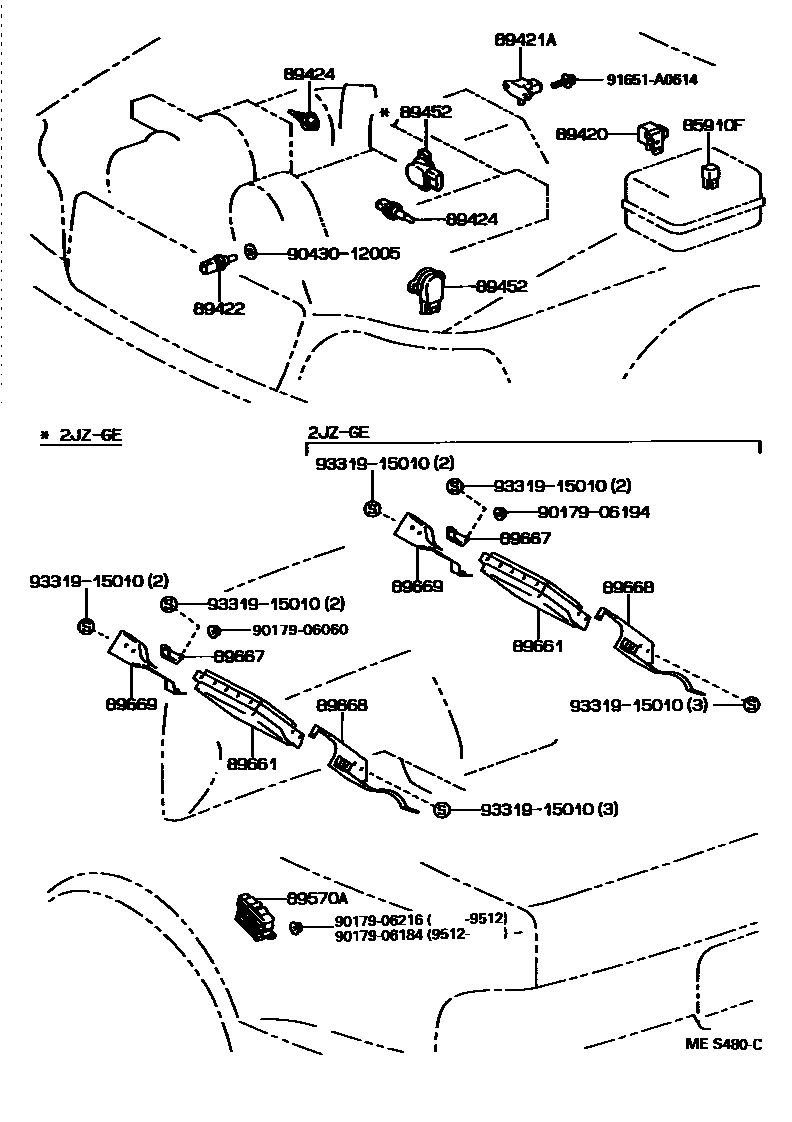

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iJZS147,UZS143199110-199708

89420SENSOR ASSY, VACUUM

main89420-30060iJZS147..Q199110-199708

89421ASENSOR, TURBO PRESSURE

main89421-12110iJZS147..V199110-199208

main89421-12111iJZS147..V199208-199708

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iJZS147,UZS143..Q,Z199110-199708

main89422-35010iJZS147..V199110-199708

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iJZS147..Q199110-199708

main89424-24010iJZS147..V199110-199708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22080iJZS147..V199110-199410

main89452-22090iJZS147,UZS143..Q,Z199408-199708

main89452-33010iJZS147,UZS143..Q,Z199110-199408

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-30150iJZS147,UZS143..Q,Z199110-199708

main89570-30160iJZS147..V199110-199708

89661COMPUTER, ENGINE CONTROL

main89661-30510iJZS147..Q199110-199308

main89661-30560iJZS147..V199110-199308

main89661-30660iUZS143199210-199308

main89661-30750iJZS147..Q199502-199508

main89661-30860iUZS143199308-199708

main89661-30870iJZS147..V199308-199708

main89661-30880iJZS147..Q199407-199502

main89661-3A180iJZS147..Q199508-199708

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30060iJZS147,UZS143199110-199708

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30070iJZS147,UZS143199110-199708

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-30040iJZS147199110-199708

main89669-30100iUZS143199210-199708

9017906060

main90179-06060

9017906184

main90179-06184

9017906194

main90179-06194

9017906216

main90179-06216

9043012005

main90430-12005

91651A0614

main91651-A0614

9331915010

main93319-15010

18 parts on this diagram · 2 diagrams in section
