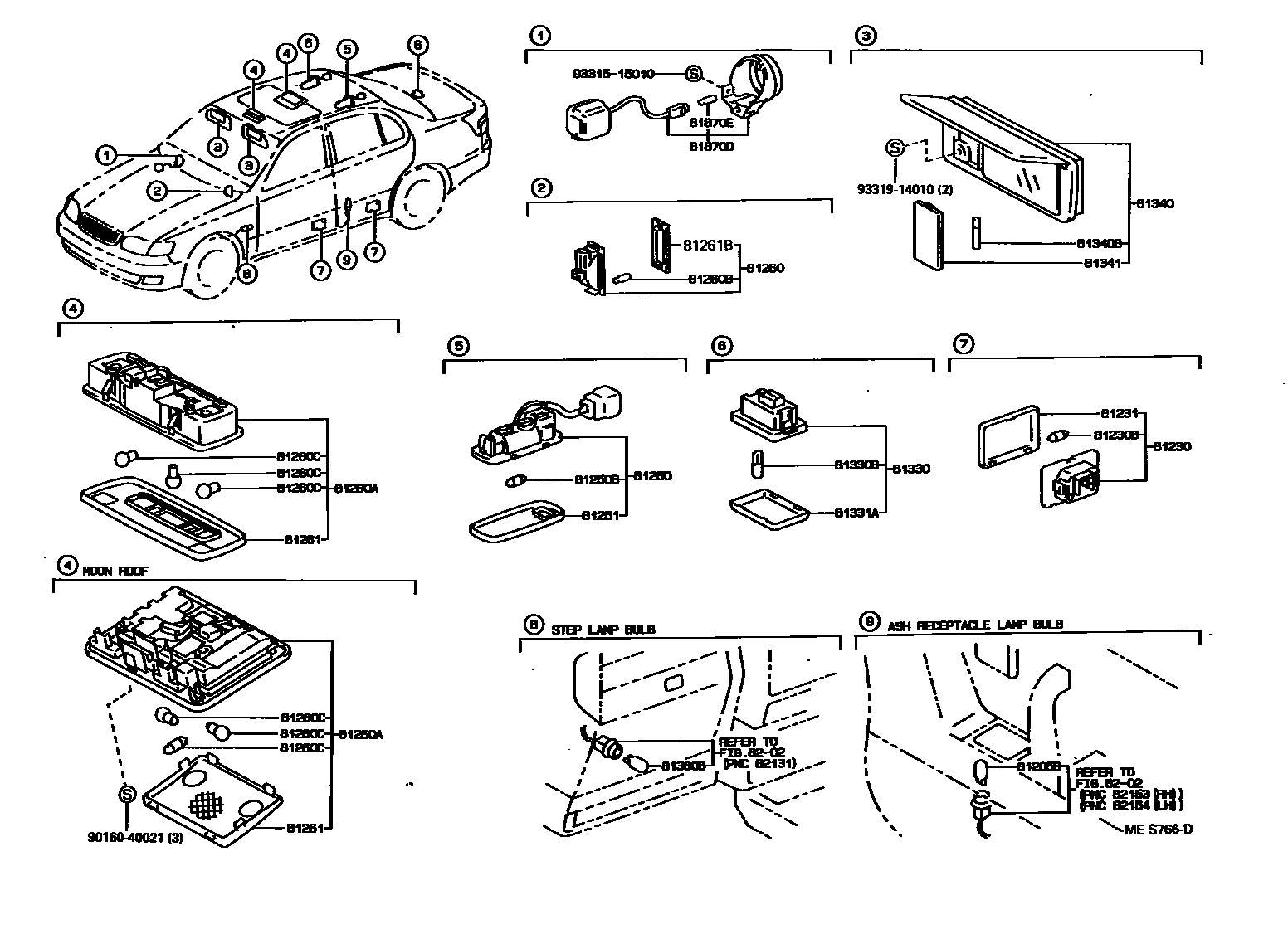

INTERIOR LAMP
81205BBULB, ASH RECEPTACLE LAMP
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
81231LENS, COURTESY LAMP
81250LAMP ASSY, ROOM, NO.2
IVORY,TRIM0#
LI.GRAY,TRIM1#
LI.SPRUCE,TRIM6#
81250BBULB, ROOM LAMP, NO.2
81251LENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
IVORY,TRIM0#
LI.GRAY,TRIM1#
LI.SPRUCE,TRIM6#
81260BBULB(FOR GLOVE BOX)
81260CBULB(FOR MAP LAMP)
81261LENS AND COVER, MAP LAMP
IVORY,TRIM0#
LI.GRAY,TRIM1#
LI.SPRUCE,TRIM6#
81261BLENS,GLOVE BOX LAMP
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81331ACOVER, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
IVORY,TRIM0#
LI.GRAY,TRIM1#
LI.SPRUCE,TRIM6#
81340BBULB (FOR VANITY LAMP)
81341LENS, VANITY LAMP
81360BBULB, STEP OR SPOT LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
8202WIRING & CLAMP
9016040021
main90160-40021
9331515010
main93315-15010
9331914010
main93319-14010
26 parts on this diagram · 1 diagram in section
