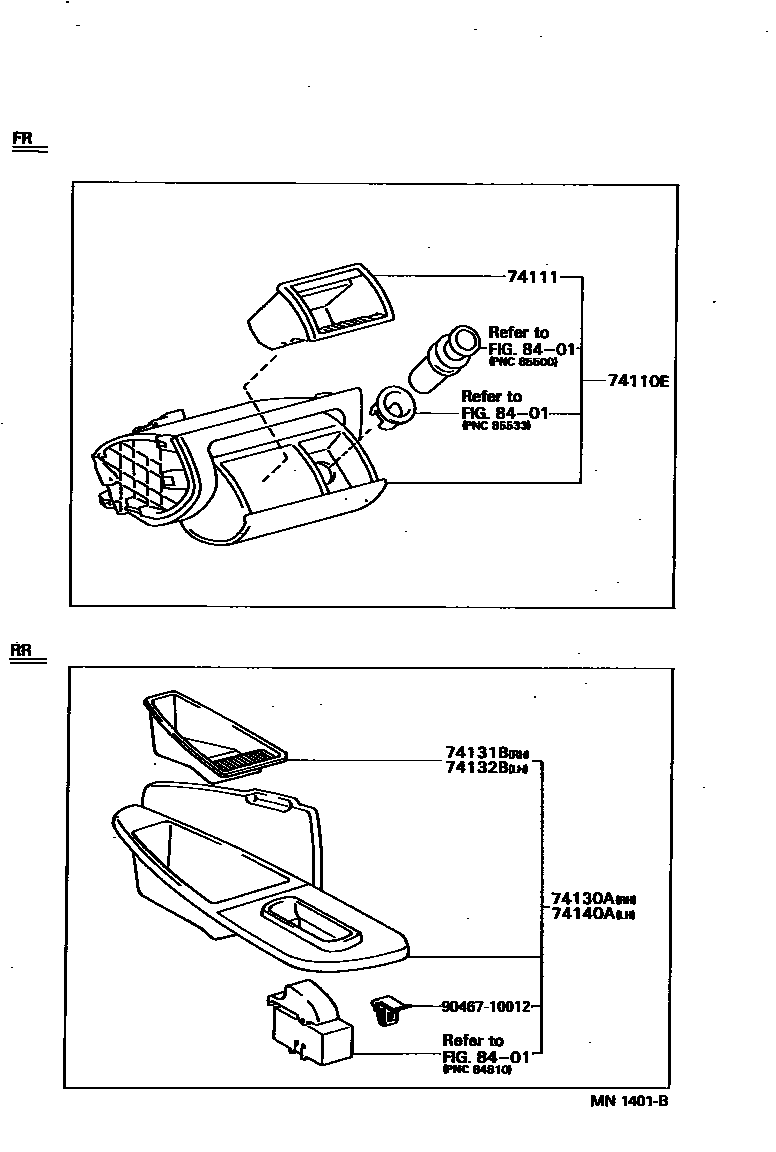

ASH RECEPTACLE

74110ERECEPTACLE ASSY, FRONT ASH

main74110-30160iJZS147,UZS143199110-199708

74111BOX, FRONT ASH RECEPTACLE

main74111-30130iJZS147,UZS143199110-199612

main74111-33020iJZS147,UZS143199612-199708

74130ARECEPTACLE ASSY, REAR ASH, RH

main74270-30010iJZS147,UZS143199110-199212

main74270-30011iJZS147,UZS143199212-199708

74131BBOX, REAR ASH RECEPTACLE, RH

main74131-30180iJZS147,UZS143199110-199708

74132BBOX, REAR ASH RECEPTACLE, LH

main74132-30100iJZS147,UZS143199110-199708

74140ARECEPTACLE ASSY, REAR ASH, LH

main74280-30010iJZS147,UZS143199110-199212

main74280-30011iJZS147,UZS143199212-199708

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046710012

main90467-10012

8 parts on this diagram · 1 diagram in section
