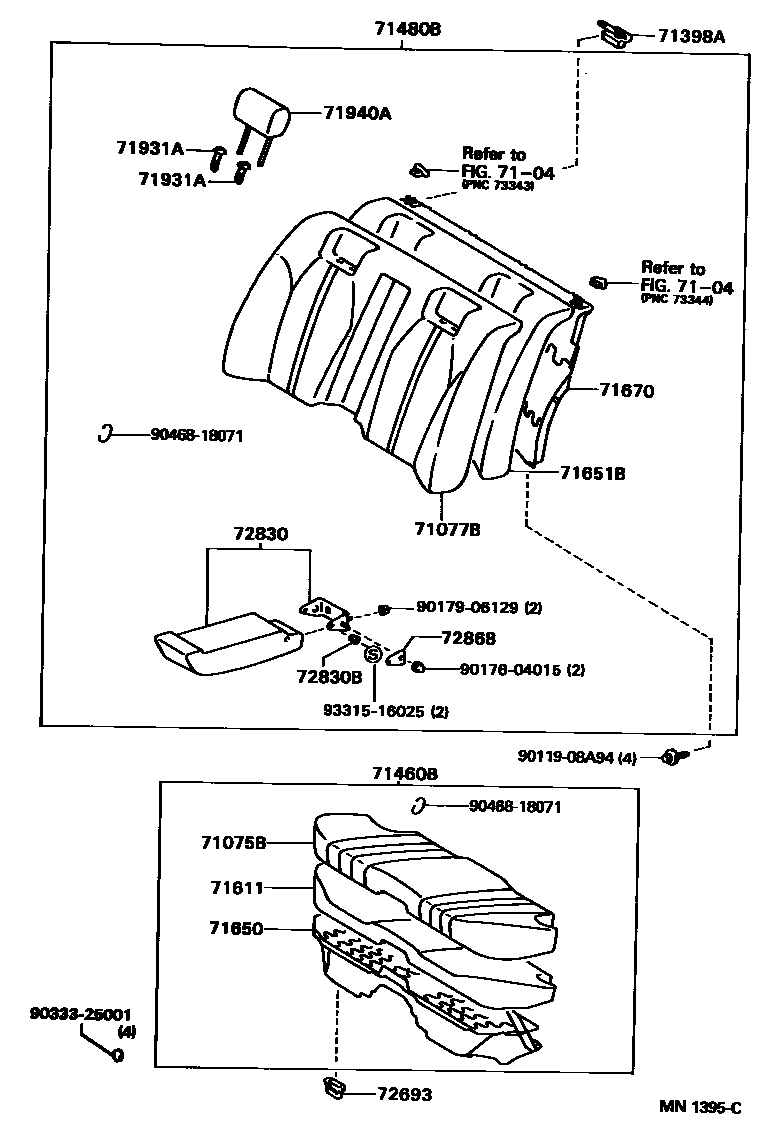

REAR SEAT & SEAT TRACK

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-30640-A0iJZS147,UZS143199110-199308

IVORY,TRIM0#

main71065-30640-B0iJZS147,UZS143199110-199308

GRAY,TRIM1#

main71065-30640-G0iJZS147,UZS143199110-199308

LI.SPRUCE,TRIM6#

main71065-30641-A0iJZS147,UZS143199308-199408

IVORY,TRIM0#

main71065-30641-B0iJZS147,UZS143199308-199408

GRAY,TRIM1#

main71065-30641-G0iJZS147,UZS143199308-199408

LI.SPRUCE,TRIM6#

main71065-30642-A0iJZS147,UZS143199408-199708

IVORY,TRIM0#

main71065-30642-B0iJZS147,UZS143199408-199708

MD.GRAY,TRIM1#

main71065-30642-B3iJZS147..Q199508-199708

main71065-30642-B4iJZS147199608-199707

main71065-30642-G0iJZS147,UZS143199408-199708

SPRUCE,TRIM6#

main71065-30650-A0iJZS147,UZS143..V,Z199110-199311

main71065-30650-B0iJZS147,UZS143..V,Z199110-199311

main71065-30860-A0iJZS147,UZS143199210-199408

main71065-30860-B0iJZS147,UZS143199210-199408

main71065-30860-G0iJZS147,UZS143199210-199408

main71065-30861-A0iJZS147,UZS143199408-199708

main71065-30861-B0iJZS147,UZS143199408-199708

main71065-30861-G0iJZS147,UZS143199408-199708

main71075-3A030-A0iJZS147,UZS143..V,Z199311-199708

main71075-3A030-B0iJZS147,UZS143..V,Z199311-199708

main71075-3A030-G0iJZS147199608-199707

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-3A730-A0iJZS147,UZS143199210-199308

main71077-3A730-B0iJZS147..V199110-199210

main71077-3A730-G0iJZS147..V199110-199210

main71077-3A731-A0iJZS147,UZS143199308-199708

main71077-3A731-B0iJZS147,UZS143199308-199708

main71077-3A731-G0iJZS147,UZS143199308-199708

main71077-3A740-A0iJZS147,UZS143..V,Z199110-199308

main71077-3A740-B0iJZS147,UZS143..V,Z199110-199308

main71077-3A741-A0iJZS147,UZS143..V,Z199308-199311

main71077-3A741-B0iJZS147,UZS143..V,Z199308-199311

main71077-3A750-A0iJZS147,UZS143199110-199308

IVORY,TRIM0#

main71077-3A750-B0iJZS147,UZS143199110-199308

GRAY,TRIM1#

main71077-3A750-G0iJZS147,UZS143199110-199308

LI.SPRUCE,TRIM6#

main71077-3A751-A0iJZS147,UZS143199308-199408

IVORY,TRIM0#

main71077-3A751-B0iJZS147,UZS143199308-199408

GRAY,TRIM1#

main71077-3A751-G0iJZS147,UZS143199308-199408

LI.SPRUCE,TRIM6#

main71077-3A752-A0iJZS147,UZS143199408-199708

IVORY,TRIM0#

main71077-3A752-B0iJZS147,UZS143199408-199708

MD.GRAY,TRIM1#

main71077-3A752-B3iJZS147..Q199408-199507

main71077-3A752-B4iJZS147199608-199707

main71077-3A752-G0iJZS147,UZS143199408-199708

SPRUCE,TRIM6#

main71077-3F110-A0iJZS147,UZS143..V,Z199311-199408

main71077-3F110-B0iJZS147,UZS143..V,Z199311-199408

main71077-3F111-A0iJZS147,UZS143..V,Z199408-199508

main71077-3F111-B0iJZS147,UZS143..V,Z199408-199508

main71077-3F112-A0iJZS147199608-199707

main71077-3F112-B0iJZS147,UZS143..V,Z199508-199708

main71077-3F112-G0iJZS147..V199608-199708

71398AHOLDER, REAR SEATBACK

main71398-24010×4iJZS147,UZS143199110-199708

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-3A300-A0iJZS147,UZS143..V,Z199311-199708

main71460-3A300-B0iJZS147,UZS143..V,Z199311-199708

main71460-3A300-G0iJZS147..V199608-199708

main71560-30840-A0iJZS147,UZS143199210-199408

main71560-30840-B0iJZS147..V199110-199210

main71560-30840-G0iJZS147,UZS143199210-199408

main71560-30841-A0iJZS147,UZS143199408-199708

main71560-30841-B0iJZS147,UZS143199408-199708

main71560-30841-G0iJZS147,UZS143199408-199708

main71560-30850-A0iJZS147,UZS143..V,Z199110-199311

main71560-30850-B0iJZS147,UZS143..V,Z199110-199311

main71560-30860-A0iJZS147,UZS143199110-199308

***,IVORY,TRIM0#

main71560-30860-B0iJZS147,UZS143199110-199308

***,GRAY,TRIM1#

main71560-30860-G0iJZS147,UZS143199110-199308

***,LI.SPRUCE,TRIM6#

main71560-30861-A0iJZS147,UZS143199308-199408

***,IVORY,TRIM0#

main71560-30861-B0iJZS147,UZS143199308-199408

***,GRAY,TRIM1#

main71560-30861-G0iJZS147,UZS143199308-199408

***,LI.SPRUCE,TRIM6#

main71560-30862-A0iJZS147,UZS143199408-199708

***,IVORY,TRIM0#

main71560-30862-B0iJZS147,UZS143199408-199708

***,MD.GRAY,TRIM1#

main71560-30862-B3iJZS147199608-199707

main71560-30862-G0iJZS147,UZS143199408-199708

***,SPRUCE,TRIM6#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-3A850-A0iJZS147..V199110-199210

main71480-3A850-B0iJZS147..V199110-199210

main71480-3A850-G0iJZS147,UZS143199210-199308

main71480-3A851-A0iJZS147,UZS143199308-199508

main71480-3A851-B0iJZS147,UZS143199308-199508

main71480-3A851-G0iJZS147,UZS143199308-199508

main71480-3A852-A0iJZS147,UZS143199508-199708

main71480-3A852-B0iJZS147,UZS143199508-199708

main71480-3A852-G0iJZS147,UZS143199508-199708

main71480-3A860-A0iJZS147,UZS143..V,Z199110-199308

main71480-3A860-B0iJZS147,UZS143..V,Z199110-199308

main71480-3A861-A0iJZS147,UZS143..V,Z199308-199311

main71480-3A861-B0iJZS147,UZS143..V,Z199308-199311

main71480-3A870-A0iJZS147,UZS143199110-199308

***,IVORY,TRIM0#

main71480-3A870-B0iJZS147,UZS143199110-199308

***,GRAY,TRIM1#

main71480-3A870-G0iJZS147,UZS143199110-199308

***,LI.SPRUCE,TRIM6#

main71480-3A871-A0iJZS147,UZS143199308-199408

***,IVORY,TRIM0#

main71480-3A871-B0iJZS147,UZS143199308-199408

***,GRAY,TRIM1#

main71480-3A871-G0iJZS147,UZS143199308-199408

***,LI.SPRUCE,TRIM6#

main71480-3A872-A0iJZS147,UZS143199408-199508

***,IVORY,TRIM0#

main71480-3A872-B0iJZS147,UZS143199408-199508

***,MD.GRAY,TRIM1#

main71480-3A872-G0iJZS147,UZS143199408-199508

***,SPRUCE,TRIM6#

main71480-3A873-A0iJZS147,UZS143199508-199708

***,IVORY,TRIM0#

main71480-3A873-B0iJZS147,UZS143199508-199708

***,MD.GRAY,TRIM1#

main71480-3A873-B3iJZS147199608-199707

main71480-3A873-G0iJZS147,UZS143199508-199708

***,SPRUCE,TRIM6#

main71480-3F310-A0iJZS147,UZS143..V,Z199311-199408

main71480-3F310-B0iJZS147,UZS143..V,Z199311-199408

main71480-3F311-A0iJZS147,UZS143..V,Z199408-199508

main71480-3F311-B0iJZS147,UZS143..V,Z199408-199508

main71480-3F312-A0iJZS147,UZS143..V,Z199508-199708

main71480-3F312-B0iJZS147,UZS143..V,Z199508-199708

main71480-3F312-G0iJZS147199608-199707

71611PAD, REAR SEAT CUSHION

main71611-30710iJZS147,UZS143199110-199708

71650SPRING ASSY, REAR SEAT CUSHION

main71650-30440iJZS147,UZS143199110-199708

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-30790iJZS147,UZS143199110-199708

main71651-30870iJZS147,UZS143..V,Z199402-199708

71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)

main71670-30560iJZS147,UZS143199110-199308

main71670-30561iJZS147,UZS143199308-199708

71931ASUPPORT, REAR SEAT HEADREST

main71930-12070-A0×2iJZS147,UZS143199110-199708

main71930-12070-B2×2iJZS147,UZS143199110-199708

main71930-12070-G0×2iJZS147,UZS143199110-199708

main71931-12040-A0×2iJZS147,UZS143199110-199708

main71931-12040-B2×2iJZS147,UZS143199110-199708

main71931-12040-G0×2iJZS147,UZS143199110-199708

71940AHEADREST ASSY, REAR SEAT

main71940-30420-A1×2iJZS147,UZS143199210-199708

main71940-30420-B1×2iJZS147..V199110-199210

main71940-30420-G1×2iJZS147,UZS143199210-199708

main71940-30430-A0×2iJZS147,UZS143..V,Z199110-199311

main71940-30430-B0×2iJZS147,UZS143..V,Z199110-199311

main71940-30440-A1×2iJZS147,UZS143199110-199308

IVORY,TRIM0#

main71940-30440-B1×2iJZS147,UZS143199110-199308

GRAY,TRIM1#

main71940-30440-G1×2iJZS147,UZS143199110-199308

LIGHT SPRUCE,TRIM6#

main71940-30441-A1×2iJZS147,UZS143199308-199408

IVORY,TRIM0#

main71940-30441-B1×2iJZS147,UZS143199308-199408

GRAY,TRIM1#

main71940-30441-G1×2iJZS147,UZS143199308-199408

LI.SPRUCE,TRIM6#

main71940-30442-A3×2iJZS147,UZS143199408-199708

IVORY,TRIM0#

main71940-30442-B3×2iJZS147,UZS143199408-199708

MEDIUM GRAY,TRIM1#

main71940-30442-G2×2iJZS147,UZS143199408-199708

LT. SPRUCE,TRIM6#

main71940-30610-A0×2iJZS147,UZS143..V,Z199311-199708

main71940-30610-B0×2iJZS147,UZS143..V,Z199311-199708

main71940-30610-G0×2iJZS147..V199608-199708

72693HOOK, REAR SEAT CUSHION LOCK

main72693-14050×2iJZS147,UZS143199508-199708

main72693-32020×2iJZS147,UZS143199110-199508

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-30790-A1iJZS147,UZS143199110-199408

IVORY,TRIM0#

main72830-30790-B1iJZS147,UZS143199110-199408

GRAY,TRIM1#

main72830-30790-G1iJZS147,UZS143199110-199408

LIGHT SPRUCE,TRIM6#

main72830-30791-A3iJZS147,UZS143199408-199708

IVORY,TRIM0#

main72830-30791-B3iJZS147,UZS143199408-199708

MEDIUM GRAY,TRIM1#

main72830-30791-G2iJZS147,UZS143199408-199708

LT. SPRUCE,TRIM6#

main72830-30800-A1iJZS147..V199110-199210

main72830-30800-B1iJZS147,UZS143199210-199708

main72830-30800-G1iJZS147,UZS143199210-199708

main72830-30810-A0iJZS147,UZS143..V,Z199110-199311

main72830-30810-B0iJZS147,UZS143..V,Z199110-199311

main72830-3A180-A0iJZS147,UZS143..V,Z199311-199708

main72830-3A180-B0iJZS147,UZS143..V,Z199311-199708

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main90386-06035×2iJZS147,UZS143199110-199708

72868COVER, CENTER ARMREST HINGE, RH

main72868-30020-A0iJZS147,UZS143199110-199708

IVORY,TRIM0#

main72868-30020-B0iJZS147,UZS143199110-199708

GRAY,TRIM1#

main72868-30020-G0iJZS147,UZS143199110-199708

LI.SPRUCE,TRIM6#

9011908A94

main90119-08A94

9017604015

main90176-04015

9017906129

main90179-06129

9033325001

main90333-25001

9046818071

main90468-18071

9331516025

main93315-16025

22 parts on this diagram · 1 diagram in section
