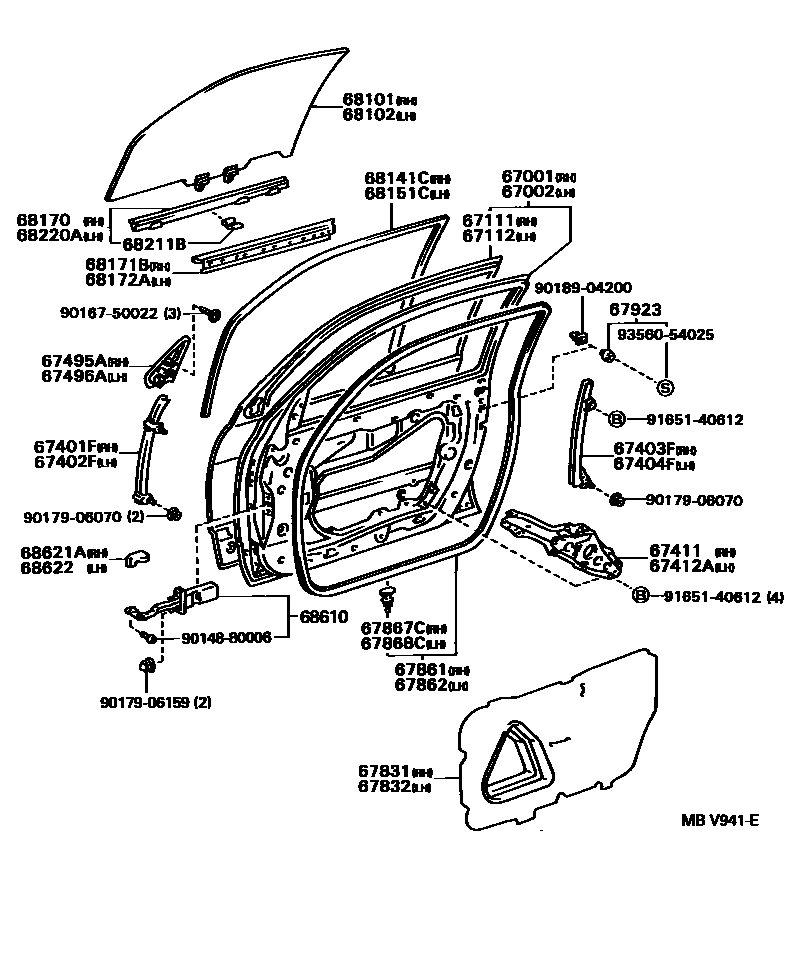

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-30660iJZS147,UZS143199110-199708

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-30730iJZS147,UZS143199110-199708

67111PANEL, FRONT DOOR, OUTER RH

main67111-30380iJZS147,UZS143199110-199708

67112PANEL, FRONT DOOR, OUTER LH

main67112-30440iJZS147,UZS143199110-199708

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-30210iJZS147,UZS143199110-199708

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-30210iJZS147,UZS143199110-199708

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-30130iJZS147,UZS143199110-199708

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-30130iJZS147,UZS143199110-199708

67411FRAME, FRONT DOOR WINDOW, FRONT UPPER RH

main67411-30180iJZS147,UZS143199110-199508

main67411-30181iJZS147,UZS143199508-199708

67412AFRAME, FRONT DOOR WINDOW, FRONT UPPER LH

main67412-30180iJZS147,UZS143199110-199508

main67412-30181iJZS147,UZS143199508-199708

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-30060iJZS147,UZS143199110-199708

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-30050iJZS147,UZS143199110-199708

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-30350iJZS147,UZS143199110-199708

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-30210iJZS147,UZS143199110-199708

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-30220iJZS147,UZS143199110-199708

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-30220iJZS147,UZS143199110-199708

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-30060×34iJZS147,UZS143199110-199708

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-30060×34iJZS147,UZS143199110-199708

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-30010×2iJZS147,UZS143199110-199708

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-30470iJZS147,UZS143199110-199708

main68101-30480iJZS147..V199110-199210

main68101-30530iJZS147,UZS143199110-199708

main68101-30540iJZS147,UZS143..V,Z199210-199708

main68101-30550iJZS147,UZS143199110-199708

main68101-30560iJZS147,UZS143..V,Z199210-199708

main68101-30690iJZS147199608-199707

main68101-30700iJZS147199608-199707

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-30470iJZS147,UZS143199110-199708

main68102-30480iJZS147,UZS143..V,Z199210-199408

main68102-30530iJZS147,UZS143199110-199708

main68102-30540iJZS147,UZS143..V,Z199210-199708

main68102-30550iJZS147,UZS143199110-199708

main68102-30560iJZS147..V199110-199210

main68102-30690iJZS147199608-199707

main68102-30700iJZS147199608-199707

68141CRUN, FRONT DOOR GLASS, RH

main68141-30250iJZS147,UZS143199110-199708

68151CRUN, FRONT DOOR GLASS, LH

main68151-30100iJZS147,UZS143199110-199708

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-30250iJZS147,UZS143199110-199708

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-30110iJZS147,UZS143199110-199708

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-30050iJZS147,UZS143199110-199708

68211BCLIP(FOR FRONT DOOR GLASS WEATHERSTRIP)

main68212-30020×4iJZS147,UZS143199110-199708

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-30180iJZS147,UZS143199110-199708

68610CHECK ASSY, FRONT DOOR

main68610-30100iJZS147,UZS143199110-199708

main68620-30040iJZS147,UZS143199110-199708

68621ACOVER, FRONT DOOR CHECK, RH

main68621-30020iJZS147,UZS143199110-199708

68622COVER, FRONT DOOR CHECK, LH

main68622-30020iJZS147,UZS143199110-199708

9014880006

main90148-80006

9016750022

main90167-50022

9017906070

main90179-06070

9017906159

main90179-06159

9018904200

main90189-04200

9165140612

main91651-40612

9356054025

main93560-54025

38 parts on this diagram · 3 diagrams in section
