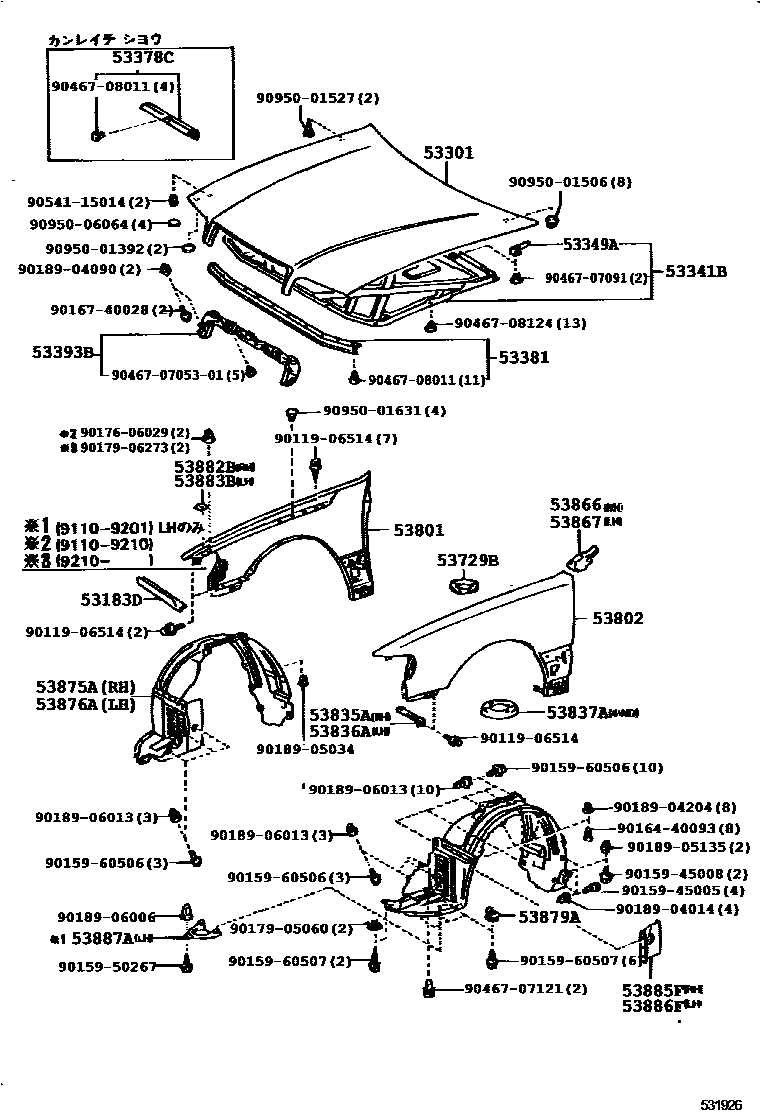

HOOD & FRONT FENDER
53183DSEAL, HEADLAMP COVER TO HOOD
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53349ARETAINER, HOOD INSULATOR
53378CSEAL, HOOD AIR INTAKE DUCT
53381SEAL, HOOD TO RADIATOR SUPPORT
53393BPROTECTOR, HOOD, FRONT
53729BREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53835ABRACE, FRONT FENDER TO APRON, RH
53836ABRACE, FRONT FENDER TO APRON, LH
53837ABRACKET, FRONT SIDE PANEL, NO.2
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53876ALINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53885FSHIELD, FRONT FENDER SPLASH, REAR RH
53886FSHIELD, FRONT FENDER SPLASH, REAR LH
53887ASEAL, FRONT FENDER SPLASH SHIELD, NO.1
9011906514
main90119-06514
9015945005
main90159-45005
9015945008
main90159-45008
9015950267
main90159-50267
9015960506
main90159-60506
9015960507
main90159-60507
9016440093
main90164-40093
9016740028
main90167-40028
9017606029
main90176-06029
9017905060
main90179-05060
9017906273
main90179-06273
9018904014
main90189-04014
9018904090
main90189-04090
9018904204
main90189-04204
9018905034
main90189-05034
9018905135
main90189-05135
9018906006
main90189-06006
9018906013
main90189-06013
904670705301
main90467-0705301
9046707091
main90467-07091
9046707121
main90467-07121
9046708011
main90467-08011
9046708124
main90467-08124
9054115014
main90541-15014
9095001392
main90950-01392
9095001506
main90950-01506
9095001527
main90950-01527
9095001631
main90950-01631
9095006064
main90950-06064
52 parts on this diagram · 1 diagram in section
