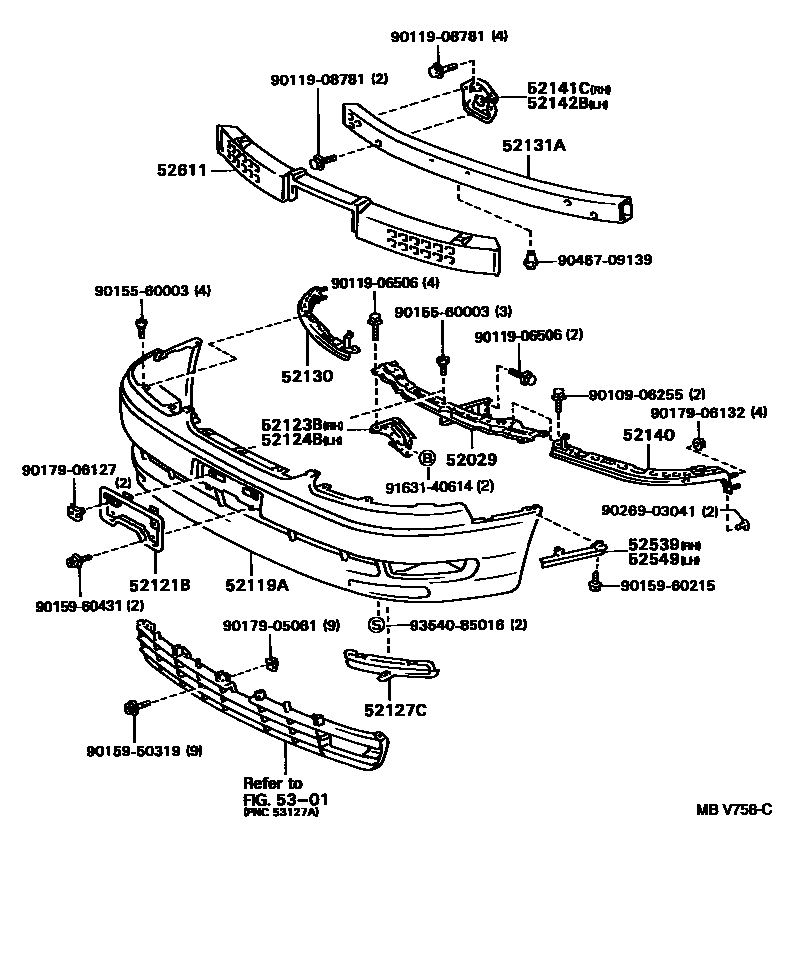

FRONT BUMPER & BUMPER STAY
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52119ACOVER, FRONT BUMPER
WARM GRY P MC/SLVR M,046
WHITE PM./SILVER M,051
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SILVER ME,199
BLACK,202
DK MAUVE M.I.O,3K8
MEDIUM BEIGE M,4H6
BEIGE ME,4K9
DK GREEN M,6K2
BL.GREEN MIO,6M2
D GREEN MC/D GRAY MM,6N9
GRAYISH GREEN M.M.,6N0
DK BLUE MICA FP,8J5
DK. BLUE MC.,8L1
52121BBRACKET, FRONT LICENCE PLATE MOUNTING
52123BPLATE, FRONT BUMPER REINFORCEMENT, RH
52124BPLATE, FRONT BUMPER REINFORCEMENT, LH
52127CCOVER, FRONT BUMPER HOLE
52130BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
52131AREINFORCEMENT, FRONT BUMPER
52140BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH
52141CARM, FRONT BUMPER, RH
52142BARM, FRONT BUMPER, LH
52539RETAINER, FRONT BUMPER SIDE, NO.3 RH
52549RETAINER, FRONT BUMPER SIDE, NO.3 LH
52611ABSORBER, FRONT BUMPER ENERGY
5301RADIATOR GRILLE
9010906255
main90109-06255
9011906506
main90119-06506
9011908781
main90119-08781
9015560003
main90155-60003
9015950319
main90159-50319
9015960215
main90159-60215
9015960431
main90159-60431
9017905061
main90179-05061
9017906127
main90179-06127
9017906132
main90179-06132
9026903041
main90269-03041
9046709139
main90467-09139
9163140614
main91631-40614
9354085016
main93540-85016
29 parts on this diagram · 1 diagram in section
