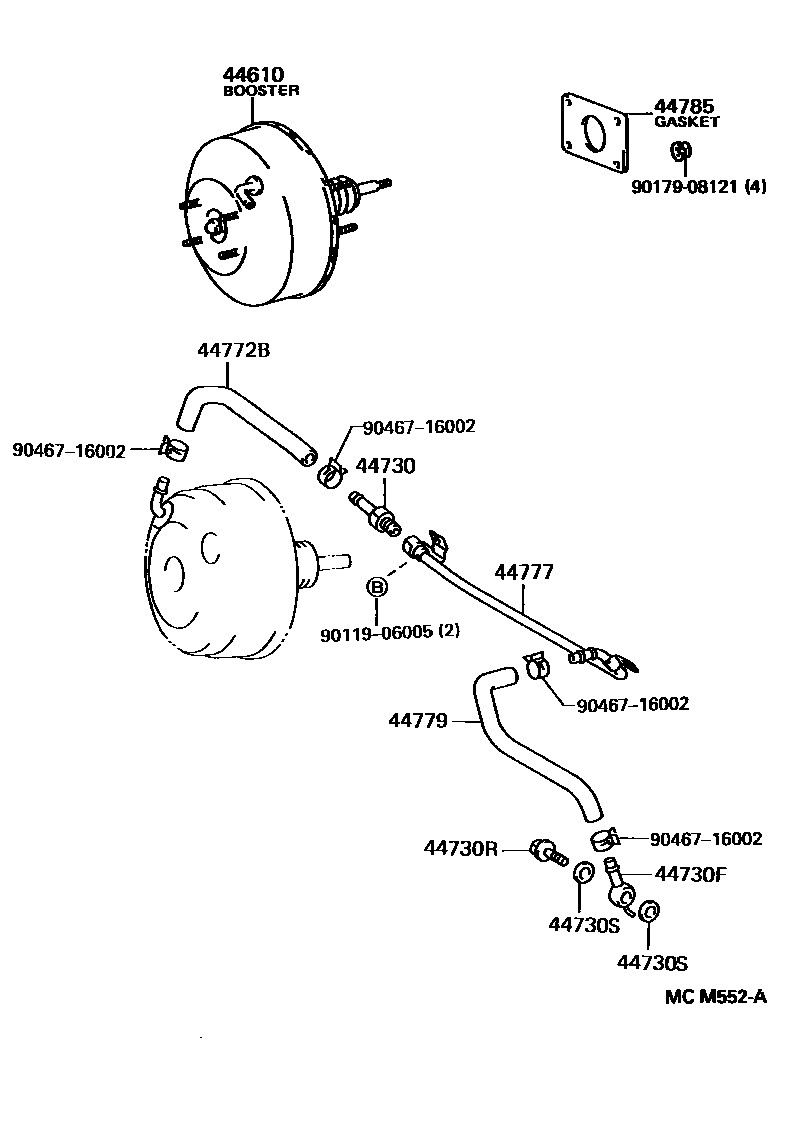

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-30780iJZS147..Q199110-199508

main44610-3A060iJZS147..Q199508-199708

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22120iJZS147..Q199110-199708

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90405-09160iJZS147..Q199110-199708

44730RBOLT, UNION(FOR VACUUM HOSE UNION)

main90401-12012iJZS147..Q199110-199708

44730SGASKET(FOR VACUUM HOSE UNION)

main90430-12005×2iJZS147..Q199110-199708

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-30150iJZS147..Q199110-199508

main44772-30160iJZS147..Q199508-199708

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-30160iJZS147..Q199110-199708

44779HOSE, UNION TO CONNECTOR

main44774-30040iJZS147..Q199508-199708

main44779-30280iJZS147..Q199110-199508

44785GASKET, BRAKE BOOSTER

main44785-30030iJZS147..Q199110-199708

9011906005

main90119-06005

9017908121

main90179-08121

9046716002

main90467-16002

12 parts on this diagram · 1 diagram in section
