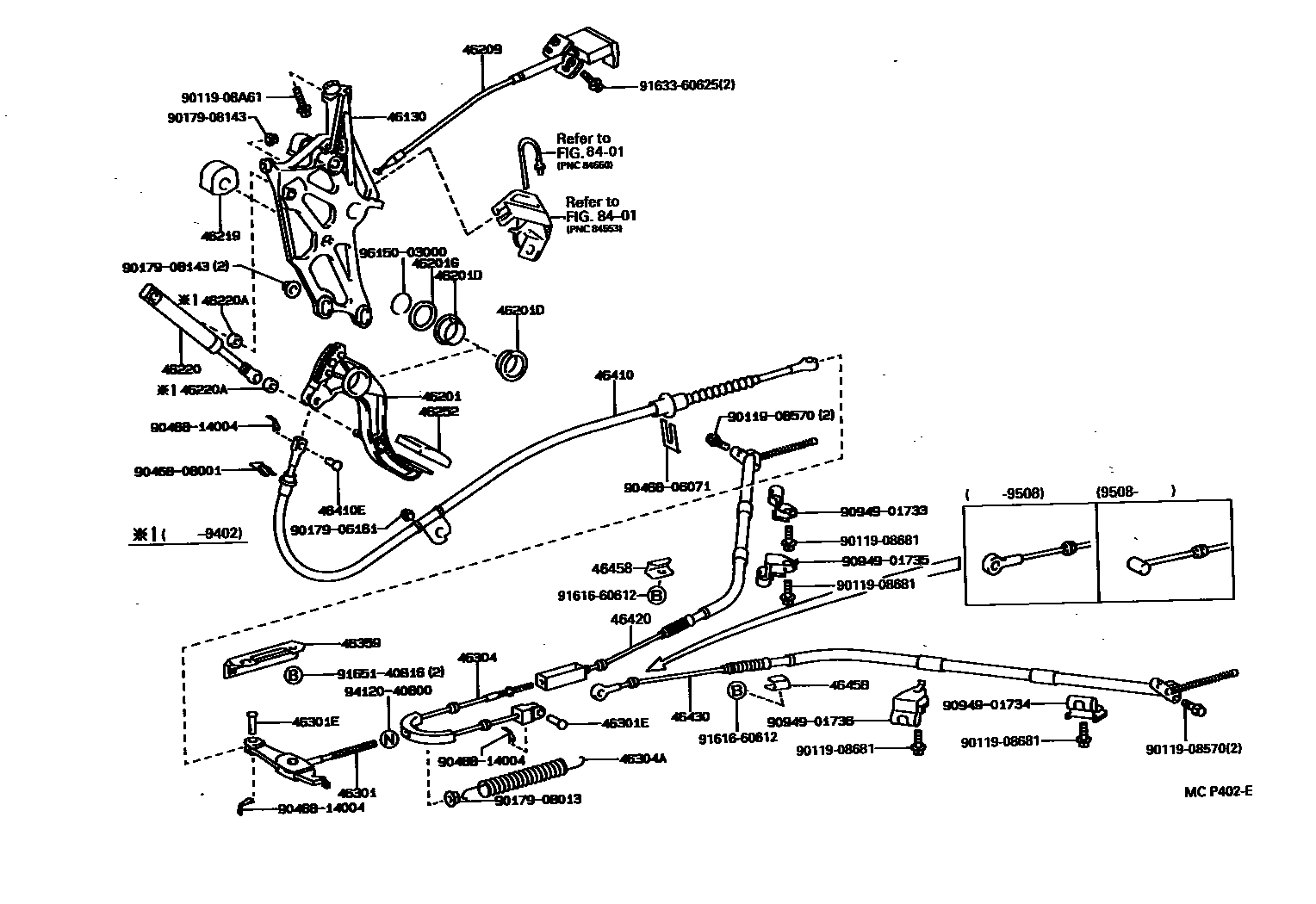

PARKING BRAKE & CABLE

0001 1 0002 1

46130BRACKET ASSY, PARKING BRAKE PEDAL

main46130-30130iJZS147,UZS143199110-199708

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-30120iJZS147,UZS143199110-199708

46201DBUSH(FOR PARKING BRAKE PEDAL)

main90386-30002iJZS147,UZS143199110-199708

main90386-30003iJZS147,UZS143199110-199708

46201GSPACER(FOR PARKING BRAKE PEDAL)

main90560-30010iJZS147,UZS143199110-199708

46209CABLE SUB-ASSY, PARKING BRAKE RELEASE

main46209-30090-A0iJZS147,UZS143199110-199609

IBORY,TRIM0#

main46209-30090-B0iJZS147,UZS143199110-199609

GRAY,TRIM1#

main46209-30090-G0iJZS147,UZS143199110-199609

LIGHT SPRUCE,TRIM6#

main46209-30091-A0iJZS147,UZS143199609-199708

IVORY,TRIM0#

main46209-30091-B0iJZS147,UZS143199609-199708

GRAY,TRIM1#

main46209-30091-G0iJZS147,UZS143199609-199708

LI.SPRUCE,TRIM6#

46219STOPPER, PARKING PEDAL

main90541-15013iJZS147,UZS143199110-199708

46220ABSORBER ASSY, PARKING BRAKE PEDAL RETURN

main46220-30010iJZS147,UZS143199110-199708

46220ACUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER)

main90540-07010×2iJZS147,UZS143199110-199401

46252PAD, PARKING PEDAL

main46252-20010iJZS147,UZS143199110-199708

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-30230iJZS147,UZS143199110-199508

main46301-30260iJZS147,UZS143199508-199708

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08059×2iJZS147,UZS143199210-199708

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-30070iJZS147,UZS143199110-199508

main46304-30090iJZS147,UZS143199508-199708

46304ASPRING, TENSION(FOR PARKING BRAKE EQUALIZER)

main46305-50010iJZS147,UZS143199508-199708

main90507-22001iJZS147,UZS143199110-199508

46359GUIDE, PARKING BRAKE INTERMEDIATE LEVER

main46359-30140iJZS147,UZS143199110-199708

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30520iJZS147,UZS143199110-199708

46410EPIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)

main90240-08062iJZS147,UZS143199110-199708

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-30410iJZS147,UZS143199110-199708

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-30050iJZS147,UZS143199110-199508

main46430-30100iJZS147,UZS143199508-199708

46458RETAINER, CABLE

main46458-30060×2iJZS147,UZS143199110-199708
