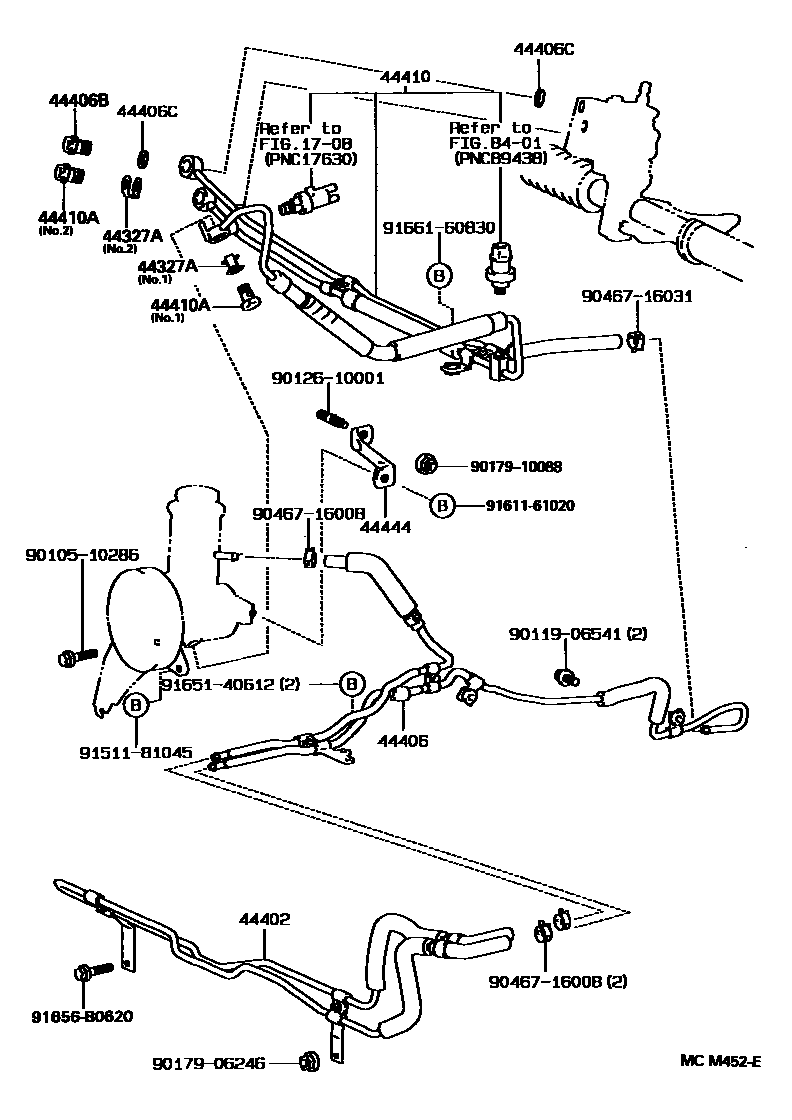

POWER STEERING TUBE

0001 1 0002 1 0003 1

1708VACUUM PIPING

→ Go to FIG 17-08

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iJZS147199110-199308

main44327-26020iJZS147199110-199308

main44327-30030×3iJZS147; UZS143199308-199708

main44327-30040iJZS147199308-199708

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-30150iJZS147199110-199112

main44402-30151iJZS147199112-199708

main44402-30171iUZS143199210-199708

44406TUBE SUB-ASSY, RETURN

main44406-30080iJZS147..Q199110-199112

main44406-30081iJZS147..Q199112-199508

main44406-30082iJZS147..Q199508-199708

main44406-30100iJZS147..V199110-199112

main44406-30101iJZS147..V199112-199508

main44406-30102iJZS147..V199508-199708

main44406-30120iUZS143199210-199708

44406BBOLT, UNION(FOR RETURN TUBE)

main90401-17002iJZS147,UZS143199110-199308

main96341-11703iJZS147,UZS143199308-199708

44406CGASKET(FOR RETURN TUBE)

main90430-17005×2iJZS147,UZS143199110-199308

main90430-17006×2iJZS147,UZS143199308-199708

44410TUBE ASSY, PRESSURE FEED

main44410-30220iJZS147..Q199110-199112

main44410-30221iJZS147..Q199112-199708

main44410-30280iJZS147..V199110-199112

main44410-30281iJZS147..V199112-199708

main44410-30310iUZS143199210-199708

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16013×3iUZS143199210-199308

main90401-16014iJZS147199110-199708

main96341-41603iJZS147; UZS143199308-199708

44444STAY, PUMP, REAR

main44444-22090iJZS147..V199110-199708

main44444-30100iJZS147..Q199110-199708

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510286

main90105-10286

9011906541

main90119-06541

9012610001

main90126-10001

9017906246

main90179-06246

9017910088

main90179-10088

9046716008

main90467-16008

9046716031

main90467-16031

9151181045

main91511-81045

9161161020

main91611-61020

9165140612

main91651-40612

91656B0620

main91656-B0620

9166160830

main91661-60830

22 parts on this diagram · 3 diagrams in section
