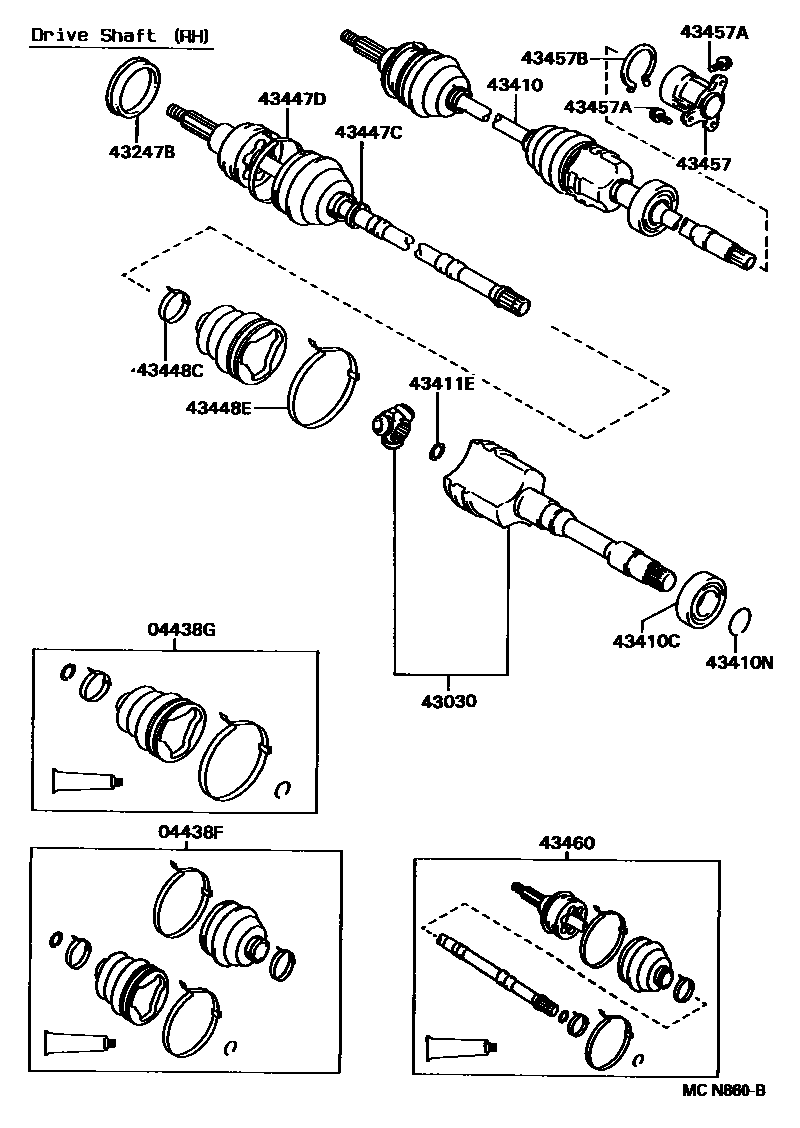

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-10080iUZS143199210-199708

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-10070iUZS143199210-199708

sub04438-30050

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-30010iUZS143199210-199708

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iUZS143199210-199708

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-30010iUZS143199210-199708

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36001iUZS143199701-199708

sub90363-36004

sub90363-36010

main90369-36001iUZS143199210-199701

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iUZS143199210-199708

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-20065iUZS143199210-199708

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01804iUZS143199210-199708

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01802iUZS143199210-199708

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01804iUZS143199210-199708

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01803iUZS143199210-199708

43457BRACKET, DRIVE SHAFT BEARING

main43044-22010iUZS143199308-199708

main43044-30010iUZS143199210-199308

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10373×3iUZS143199210-199309

main90105-10392×3iUZS143199309-199708

main90901-19023iUZS143199210-199708

sub90901-19060

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90520-65002iUZS143199210-199708

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-39225iUZS143199210-199708

16 parts on this diagram · 2 diagrams in section
