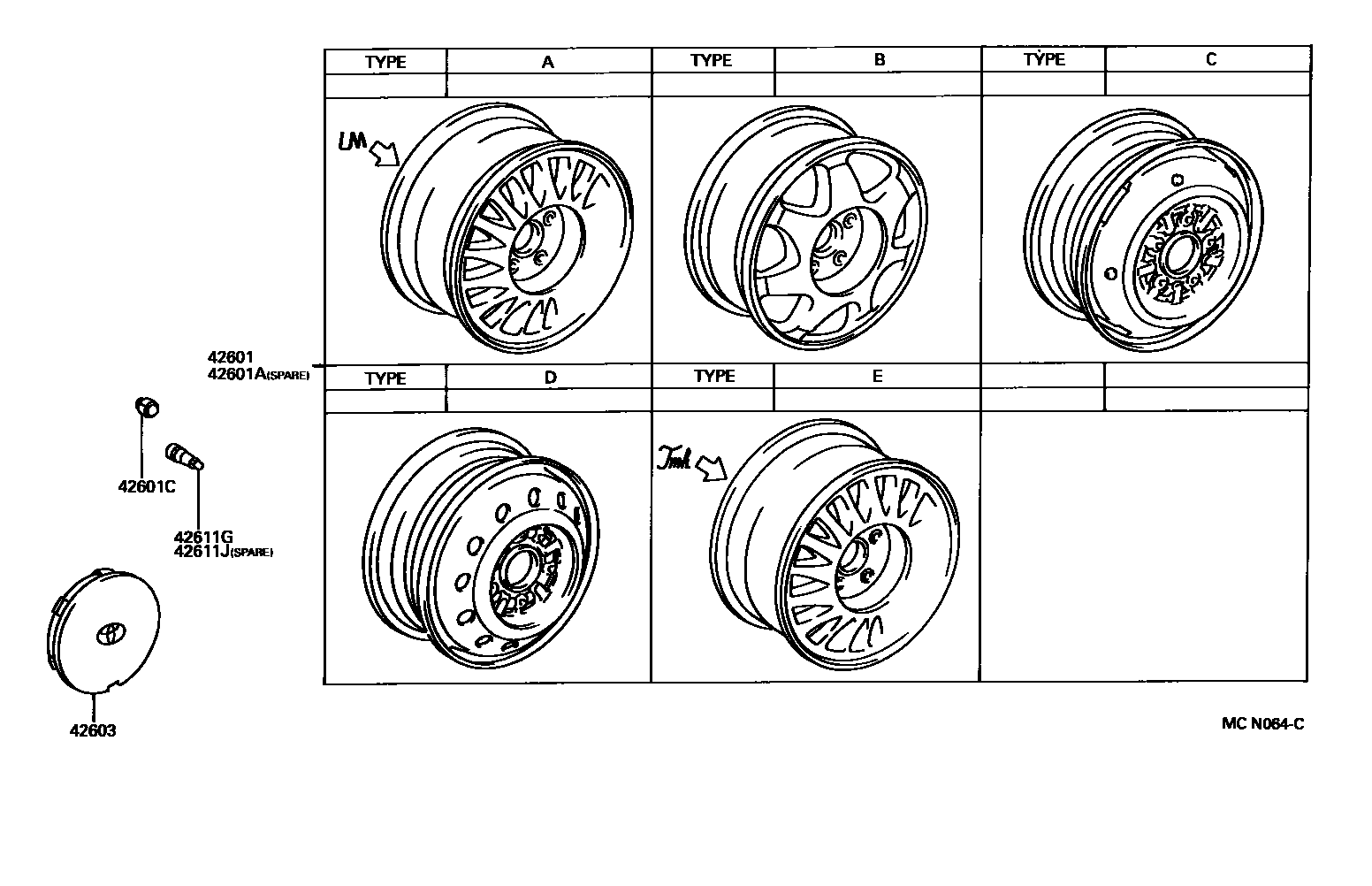

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-30580×4iJZS147..Q199408-199608

main42611-30740×4iJZS147..Q199110-199210

main42611-30751×4iJZS147..Q199402-199708

main42611-30760×2iJZS147,UZS143..V,Z; JZS147..Q; JZS147..V199110-199401

main42611-30761×4iJZS147,UZS143..V,Z; JZS147..Q; JZS147..V199401-199708

main42611-30770×2iJZS147..V199110-199401

main42611-30771×2iJZS147..V199401-199708

main42611-30810×4iJZS147..Q199210-199402

main42611-30811×4iJZS147..Q199402-199708

main42611-3A030×4iJZS147..Q; JZS147..V199608-199708

main42611-3A040×2iJZS147..V199608-199708

42601AWHEEL, DISC (FOR SPARE)

main42611-28210iJZS147..Q199110-199708

main42611-30580iJZS147..Q199508-199608

main42611-30740iJZS147..Q199110-199210

main42611-30751iJZS147..Q199402-199708

main42611-30760iJZS147..Q; JZS147..V199110-199401

main42611-30761iJZS147..Q; JZS147..V; UZS143199401-199708

main42611-30810iJZS147..Q199210-199402

main42611-30811iJZS147..Q199402-199708

main42611-3A030iJZS147..Q; JZS147..V199608-199708

main42611-50090iJZS147..Q199508-199608

42601CNUT, HUB (FOR AXLE)

main90942-01062×20iJZS147,UZS143199110-199708

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30170×4iJZS147..Q199110-199708

main42603-30180×4iJZS147,UZS143..V,Z; JZS147..Q199110-199708

main42603-30260×4iJZS147..Q199408-199608

main42603-30310×4iJZS147..Q; JZS147..V199608-199708

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iJZS147,UZS143..V,Z; JZS147..Q199608-199708

main90942-05028×4iJZS147..Q; JZS147..V199608-199708

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iJZS147,UZS143199110-199708

main90942-05028iJZS147..Q; JZS147..V199608-199708

6 parts on this diagram · 2 diagrams in section
