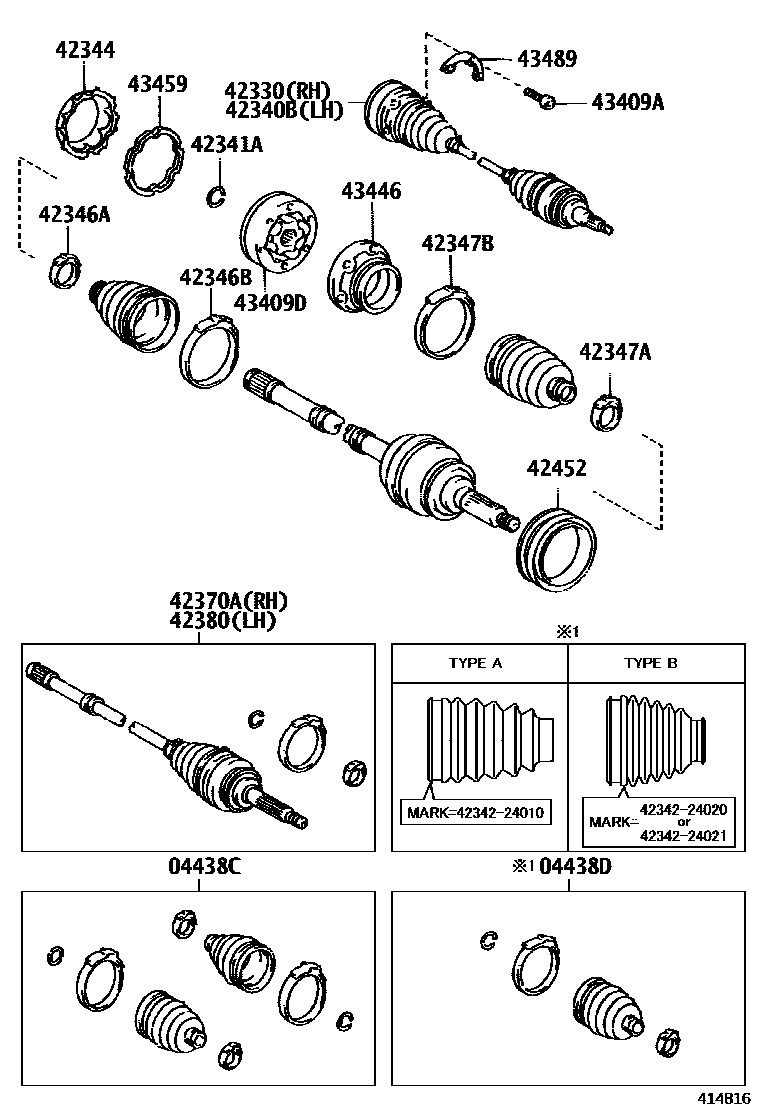

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-24020×2iJZS147,UZS143199110-199308

main04437-24021×2iJZS147,UZS143199308-199404

main04437-24040×2iJZS147,UZS143199404-199708

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-24010×2iJZS147; JZS147..Q; UZS143199110-199303

main04437-24011×2iJZS147,UZS143199308-199404

main04437-24030×2iJZS147,UZS143199404-199708

main04437-24050×2iJZS147,UZS143199110-199404

42330SHAFT ASSY, REAR DRIVE, RH

main42330-24010iJZS147..Q199110-199608

main42330-24020iJZS147,UZS143..Q,Z199608-199708

main42330-24030iJZS147..Q199608-199708

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-24040iJZS147..Q199110-199608

main42340-24050iJZS147..Q199110-199608

main42340-24060iJZS147..Q199608-199708

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-26028×2iJZS147,UZS143199305-199708

main90520-27052×2iJZS147,UZS143199110-199305

42344COVER, REAR AXLE INBOARD JOINT END

main42344-50011×2iJZS147,UZS143199110-199708

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01837×2iJZS147,UZS143199110-199708

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01838×2iJZS147,UZS143199110-199708

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90949-01837×2iJZS147,UZS143199110-199708

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90949-01838×2iJZS147,UZS143199110-199708

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-29096iJZS147..Q199110-199308

main42370-29097iJZS147..Q199308-199404

main42370-29098iJZS147..Q199404-199608

main42370-29105iUZS143199210-199301

main42370-29106iJZS147..Q; UZS143199301-199308

main42370-29107iJZS147..Q; UZS143199308-199404

main42370-29108iJZS147..Q; UZS143199404-199608

main42370-29115iJZS147..Q; JZS147..V199110-199301

main42370-29116iJZS147..Q; JZS147..V199301-199308

main42370-29117iJZS147..Q; JZS147..V199308-199404

main42370-29118iJZS147..V199404-199708

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-29016iJZS147..Q199110-199308

main42380-29017iJZS147..Q199308-199404

main42380-29018iJZS147..Q199404-199608

main42380-29025iUZS143199210-199301

main42380-29026iJZS147..Q; UZS143199301-199308

main42380-29027iJZS147..Q; UZS143199308-199404

main42380-29028iJZS147..Q; UZS143199404-199608

main42380-29035iJZS147..Q; JZS147..V199110-199301

main42380-29036iJZS147..Q; JZS147..V199301-199308

main42380-29037iJZS147..Q; JZS147..V199308-199404

main42380-29038iJZS147..Q199404-199608

42452DEFLECTOR, REAR WHEEL BEARING DUST, NO.2

main42452-22030×2iJZS147..Q199210-199608

main42453-50010×2iJZS147,UZS143..V,Z; JZS147..Q199210-199608

43409ABOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

main90110-12003×12iJZS147,UZS143199110-199708

43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE

main43409-24010×2iJZS147,UZS143199110-199708

43446COVER, REAR AXLE INBOARD JOINT

main43446-24020×2iJZS147,UZS143199110-199708

43459GASKET, REAR AXLE INBOARD JOINT END COVER

main43459-50011×2iJZS147,UZS143199110-199708

43489WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT

main43489-50010×4iJZS147,UZS143199110-199708

18 parts on this diagram · 3 diagrams in section
