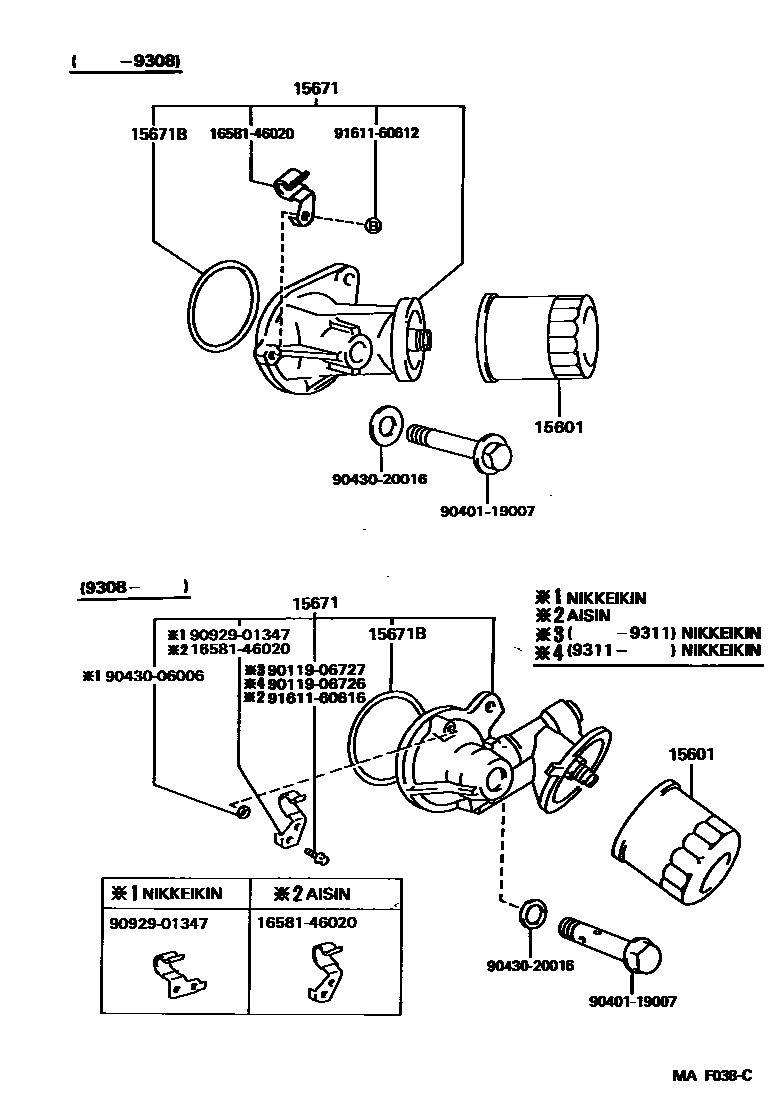

OIL FILTER

0001 1 0002 1 0003 1

15601FILTER SUB-ASSY, OIL

main90915-03002i2JZ#..JZS147199110-199204

main90915-20001i2JZGTE..JZS147199310-199311

main90915-20002i1UZFE..UZS143199210-199708

15671BRACKET, OIL FILTER

main15670-46010i2JZGE..JZS147199110-199308

main15670-46030i2JZGTE..JZS147199110-199308

main15670-46052i2JZGE..JZS147199501-199505

main15670-46062i2JZGTE..JZS147199501-199505

main15670-46070i2JZGE..JZS147199505-199708

main15670-46110i2JZGTE..JZS147199308-199501

15671BGASKET, OIL FILTER BRACKET

main15188-46010i2JZGTE..JZS147199110-199305

main90301-68004i2JZGE..JZS147199110-199305

1658146020CLAMP, HOSE(FOR WATER HOSE)

main16581-46020

9011906726

main90119-06726

9011906727

main90119-06727

9040119007

main90401-19007

9043006006

main90430-06006

9043020016

main90430-20016

9092901347

main90929-01347

9161160612

main91611-60612

9161160616

main91611-60616

12 parts on this diagram · 3 diagrams in section
