ENGINE OVERHAUL GASKET KIT

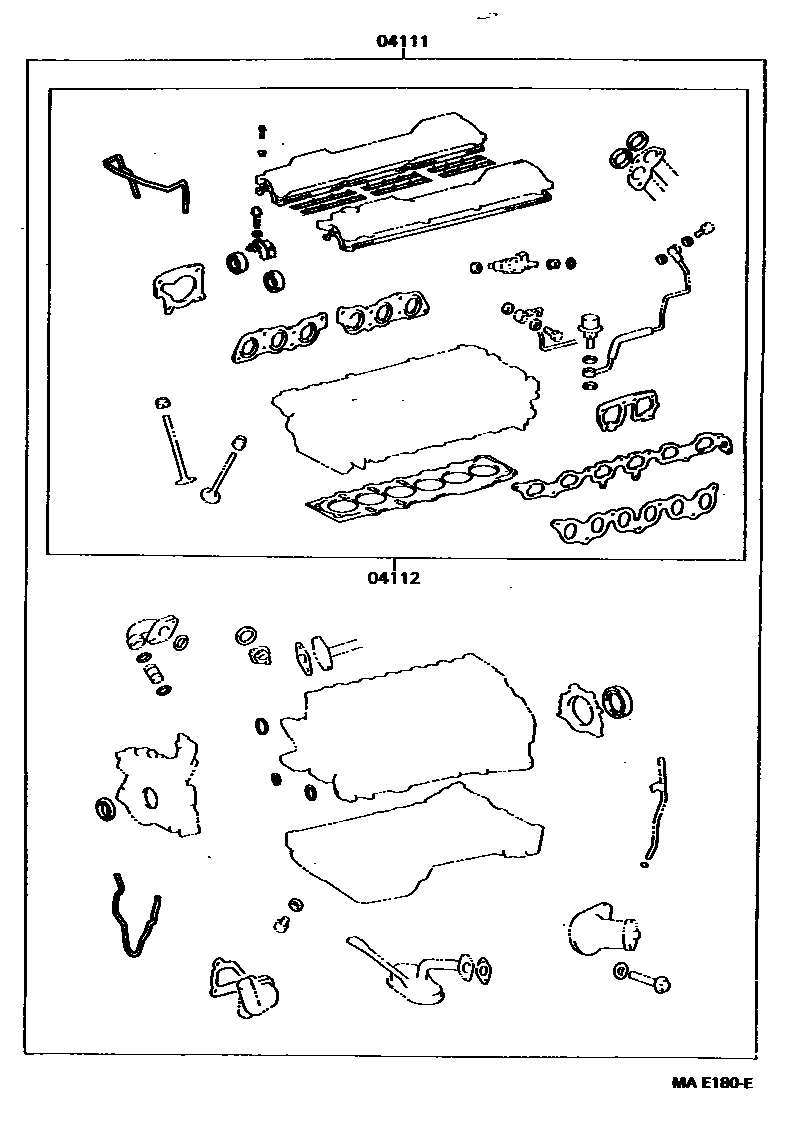

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-46050i199110-199210

main04111-46051i199301-199305

main04111-46055i199305-199708

main04111-46060i199110-199210

main04111-46061i199210-199304

main04111-46063i199304-199306

main04111-46064i199306-199608

main04111-46065i199608-199708

main04111-46080i199210-199301

main04111-50080i199210-199408

main04111-50082i199408-199509

main04111-50083i199509-199705

main04111-50084i199705-199708

04112GASKET KIT, ENGINE VALVE GRIND

main04112-46050i199110-199210

main04112-46051i199301-199305

main04112-46055i199305-199708

main04112-46060i199110-199210

main04112-46061i199210-199304

main04112-46063i199304-199306

main04112-46064i199306-199608

main04112-46065i199608-199708

main04112-46080i199210-199301

main04112-50080i199210-199408

main04112-50082i199408-199509

main04112-50083i199509-199705

main04112-50084i199705-199708

2 parts on this diagram · 3 diagrams in section
