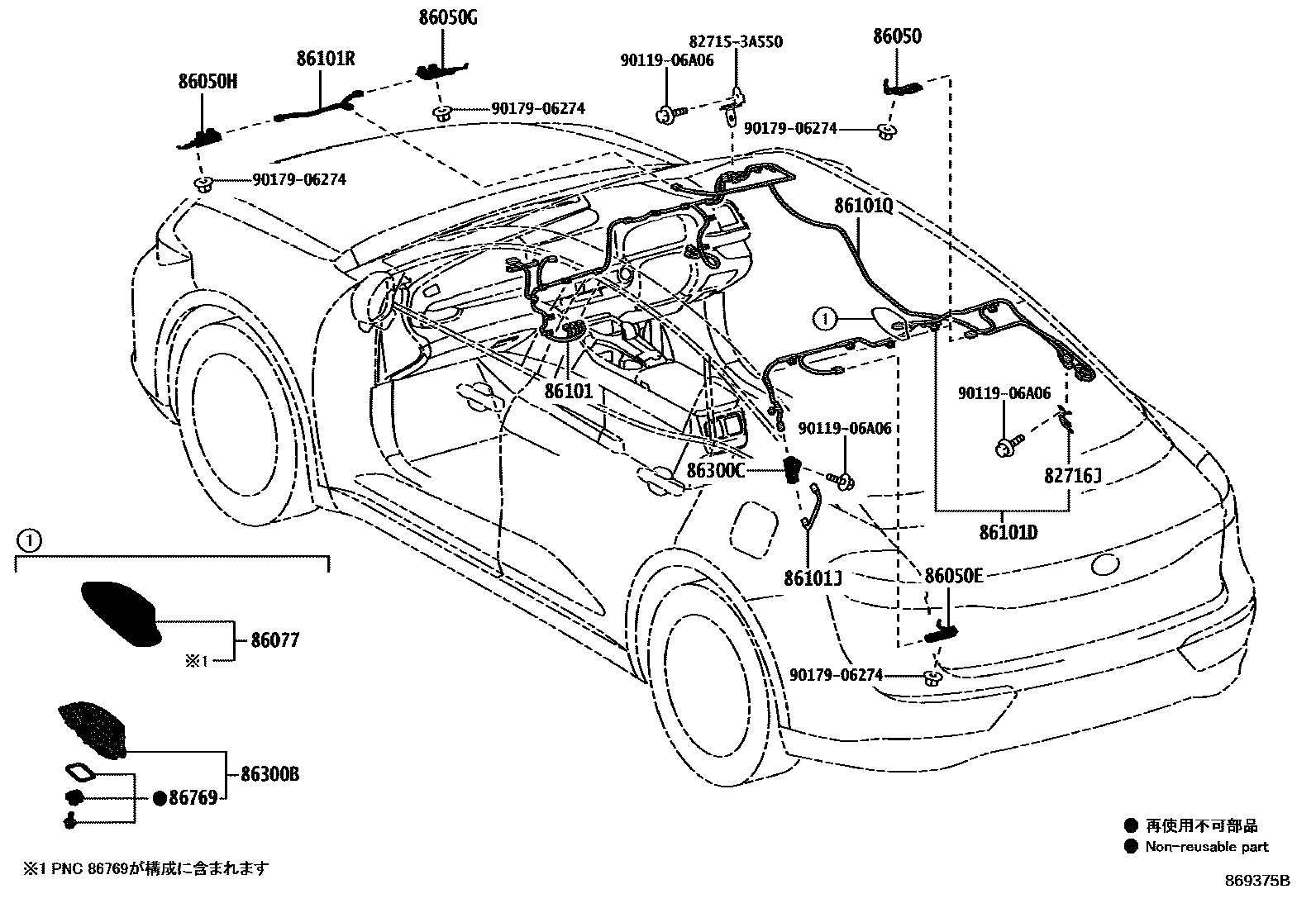

ANTENNA
82716JBRACKET, WIRING HARNESS CLAMP
86050ANTENNA ASSY, TELEVISION
86050EANTENNA ASSY, TELEVISION
86050GANTENNA ASSY, TELEVISION, NO.1 RH
86050HANTENNA ASSY, TELEVISION, NO.1 LH
86077COVER KIT, ANTENNA
PRECIOUS WHITE PEARL,090; PRECIOUS WHITE PEARL,090 ,M75
PRECIOUS METAL,1L5
PRECIOUS SILVER,1J6
BLACK,202; BLACK,202 ,2TB ,2WC ,2XW ,2XX ,2XY ,2XZ ,2YA ,2YZ ,2ZA ,2ZB ,2ZR; BLACK,202 ,2TB ,2WC ,2XW ,2XX ,2XY ,2XZ ,2YA ,2YZ ,2ZA ,2ZB ,2ZR ,M36 ,M76; BLACK,202 ,2TB ,2WC ,2XW ,2XX ,2XY ,2XZ ,2YA ,2YZ ,2ZA ,2ZB ,2ZR ,M76
EMOTIONAL RED 2,3U5
PRECIOUS BRONZE,4Y6
MASSIVE GRAY,1L6
GRAY METALLIC MATT,1M1
86101CORD SUB-ASSY, ANTENNA
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101RCORD SUB-ASSY, ANTENNA, NO.5
86300BANTENNA ASSY, AMPLIFIER, NO.1
86300CANTENNA ASSY, AMPLIFIER, NO.2
86769HOUSING, ROOF ANTENNA
827153A550BRACKET,WIRING HARNESS CLAMP
main82715-3A550
9011906A06
main90119-06A06
9017906274
main90179-06274
17 parts on this diagram · 1 diagram in section
