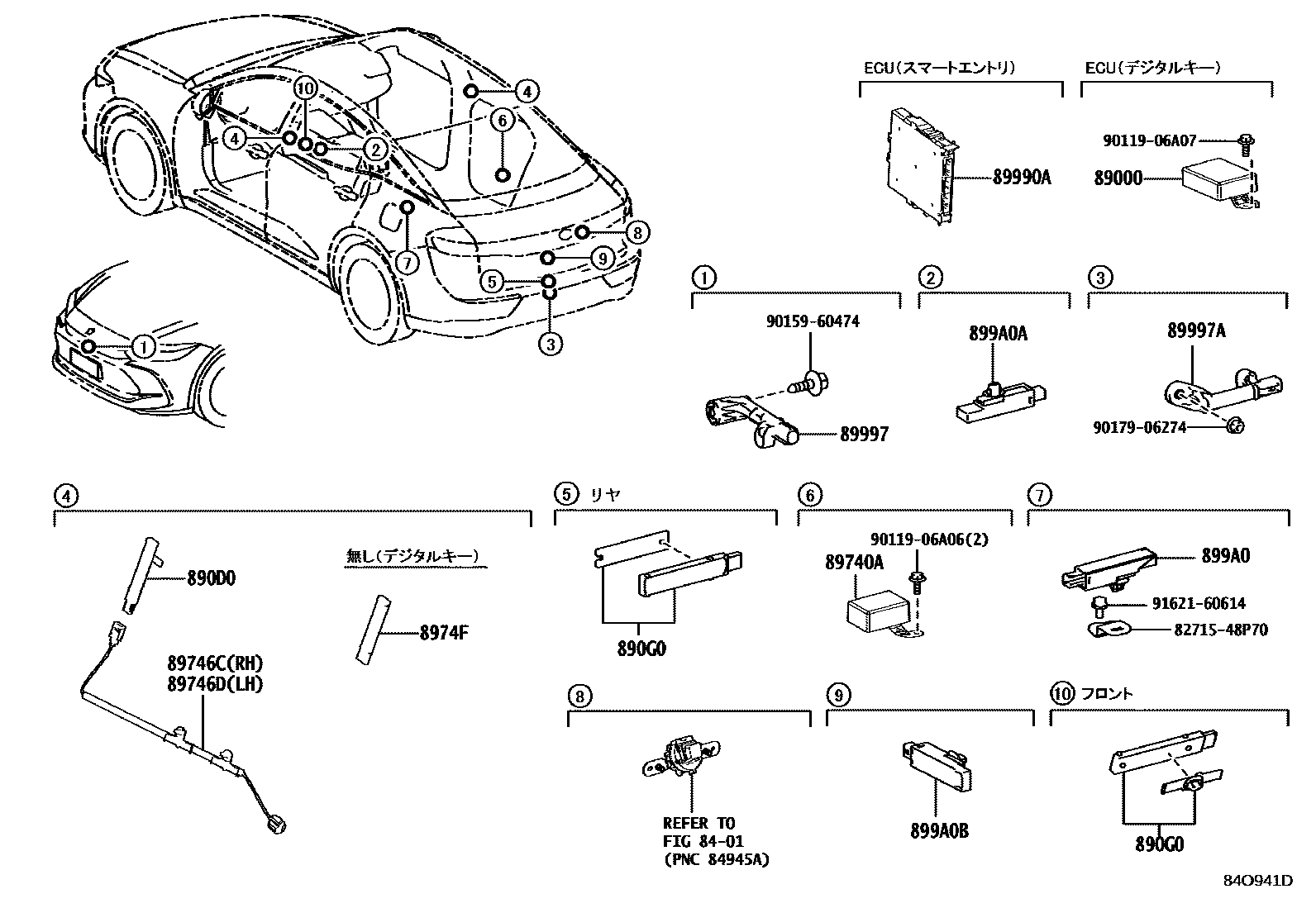

WIRELESS DOOR LOCK

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89000COMPUTER ASSY, DIGITAL KEY

main89000-30010

main89000-30011

main89000-30140

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78010

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-76010

main890G0-V1010

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-30140iAZSH35,TZSH35202209

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

8974FCASE, W/O DIGITAL KEY

main8974F-78010iAZSH35,TZSH35202209

89990ACOMPUTER ASSY, SMART KEY

main899H0-30070iAZSH35,TZSH35..G,RS,Z202209-202404

main899H0-30080iAZSH35..X202209-202404

main899H0-30180iAZSH35,TZSH35202404

89997ANTENNA, ELECTRICAL KEY

main89997-30100iAZSH35..X202209-202404

main89997-30100iAZSH35..X202209-202404

main89997-30100iAZSH35..Z202209

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iAZSH35,TZSH35..G,RS,Z202209

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-42030iAZSH35,TZSH35202209

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12130iAZSH35,TZSH35202209

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-12130iAZSH35,TZSH35202209

8271548P70BRACKET,WIRING HARNESS CLAMP

main82715-48P70

9011906A06

main90119-06A06

9011906A07

main90119-06A07

9015960474

main90159-60474

9017906274

main90179-06274

9162160614

main91621-60614

20 parts on this diagram · 1 diagram in section
