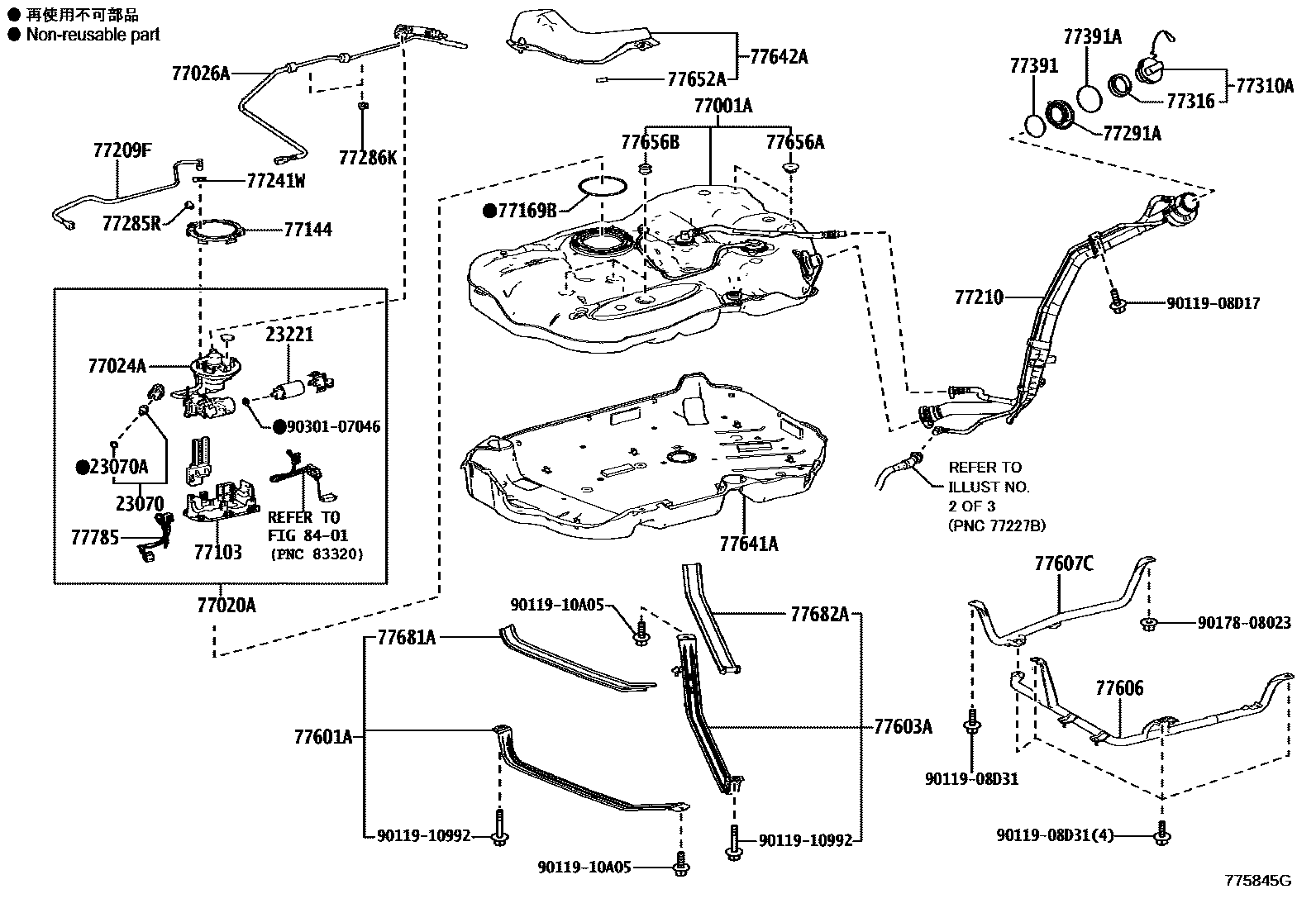

FUEL TANK & TUBE

0001 1�������� 0002 1�������� 0003 1���������� 0004 1���������� 0005 1��������������

23070VALVE ASSY, FUEL MAIN

main23070-24010iA25AFXS..AZSH35202209

main23070-25020iT24AFTS..TZSH35202209

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iA25AFXS,T24AFTS..AZSH35,TZSH35202209

23221PUMP, FUEL

main23221-24010iA25AFXS..AZSH35202209

main23221-25080iT24AFTS..TZSH35202209

77001ATANK SUB-ASSY, FUEL

main77001-30610iAZSH35,TZSH35202209

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-30460iTZSH35202209

main77020-42260iAZSH35202209-202211

main77020-42261iAZSH35202212

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-42130iAZSH35202209-202212

main77024-42131iAZSH35202212

main77024-48170iTZSH35202209

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-30130iAZSH35,TZSH35202209

77103SUB-TANK SUB-ASSY, FUEL

main77103-42090iAZSH35202209

main77103-48100iTZSH35202209

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iAZSH35,TZSH35202209

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47040iAZSH35,TZSH35202209

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-30430iAZSH35,TZSH35202209

77210PIPE ASSY, FUEL TANK FILLER

main77210-30230iAZSH35,TZSH35202209

77241WCLIP, TUBE JOINT

main77241-60550iAZSH35,TZSH35202209

77285RCLAMP, FUEL TUBE, NO.1

main77285-30350iAZSH35,TZSH35202209

77286KCLAMP, FUEL TUBE, NO.2

main77286-30180×2iAZSH35,TZSH35202209

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-33110iAZSH35,TZSH35202209

77310ACAP ASSY, FUEL TANK

main77300-12020iAZSH35,TZSH35202209

77316GASKET, FUEL TANK CAP

main77316-52040iAZSH35,TZSH35202209

77391RING, FUEL INLET BOX

main77391-12020iAZSH35,TZSH35202209

77391ARING, FUEL INLET BOX

main77391-33060iAZSH35,TZSH35202209

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-42120iAZSH35,TZSH35202209

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-30070iAZSH35,TZSH35202209

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-30230iAZSH35,TZSH35202209

77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2

main77607-30020iAZSH35,TZSH35202209

77641APROTECTOR, FUEL TANK, NO.1

main77606-42060iAZSH35,TZSH35202209

77642APROTECTOR, FUEL TANK, NO.2

main77642-42070iAZSH35,TZSH35202209

77652ACUSHION, FUEL TANK, NO.2

main77652-42040iAZSH35,TZSH35202209

77656ACUSHION, FUEL TANK, NO.4

main77656-30040×2iAZSH35,TZSH35202209

77656BCUSHION, FUEL TANK, NO.6

main77656-33010×3iAZSH35,TZSH35202209

77681ASEAT, FUEL TANK BAND

main77681-42040iAZSH35,TZSH35202209

77682ASEAT, FUEL TANK BAND, NO.2

main77682-42010iAZSH35,TZSH35202209

77785HARNESS, FUEL PUMP

main77785-42060iAZSH35202209-202212

main77785-42061iAZSH35202212

main77785-42070iTZSH35202209

8401

9011908D17

main90119-08D17

9011908D31

main90119-08D31

9011910992

main90119-10992

9011910A05

main90119-10A05

9017808023

main90178-08023

9030107046

main90301-07046

39 parts on this diagram · 5 diagrams in section
