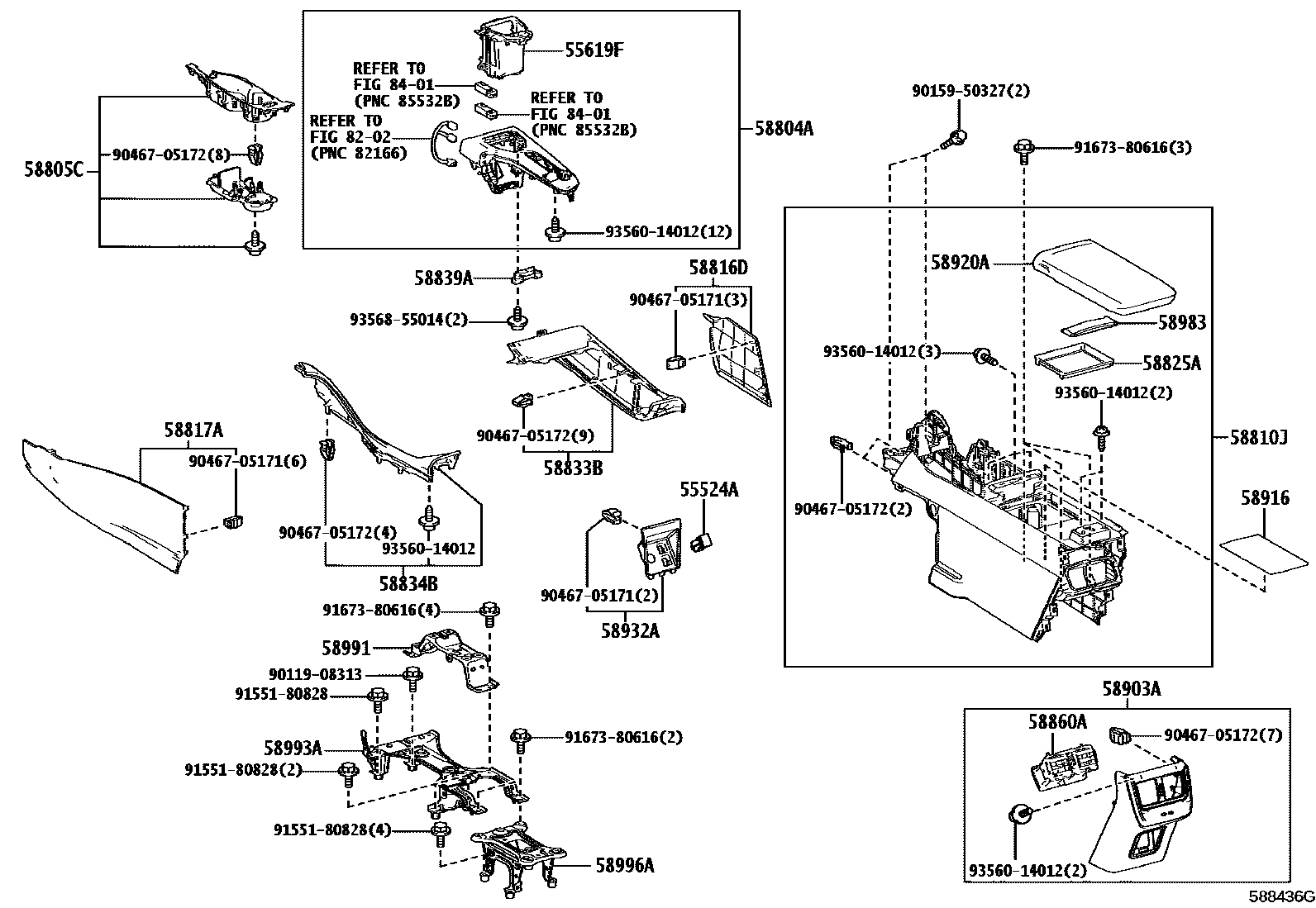

CONSOLE BOX & BRACKET

55524ACOVER, SWITCH BASE HOLE

main55524-12010-C0supersedes 55524-12010-C0iAZSH35..X202209

BLACK

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55630-30010iAZSH35..X202209

main55630-30020supersedes 55630-30010iAZSH35..X202404

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-30J00supersedes 58804-30G90iAZSH35..X202404

main58804-30880-B0supersedes 58804-30870-B0iAZSH35..X202209-202404

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-30A40iAZSH35,TZSH35202209-202404

main58805-30A81iAZSH35,TZSH35202404

main58805-30A50iTZSH35202209-202404

main58805-30A91iAZSH35,TZSH35..RS,Z202404

58810JBOX ASSY, CONSOLE

main58810-30C90-C0iAZSH35,TZSH35..G,RS,Z202209-202404

BLACK/FROMAGE,TRIM0#

main58810-30C90-C1iTZSH35202209-202404

BLACK/BLACK,TRIM20,21,22

main58810-30C90-C2iAZSH35,TZSH35..G,RS,Z202209-202404

BLACK/DK.CHESTNUT,TRIM23

main58810-30C90-C5iAZSH35,TZSH35..G,RS,Z202404

BLACK/FROMAGE,TRIM0#

main58810-30C90-C6iAZSH35..X202312-202404

BLACK,TRIM20

main58810-30C90-C7iAZSH35,TZSH35..G,RS,Z202404

BLACK/SADDLE TAN,TRIM24

main58810-30D80-C3iAZSH35..Z202404

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-30110-C0iAZSH35..X202209

BLACK,TRIM0#,2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-30050-C0iAZSH35..X202209

BLACK,TRIM0#,2#

58825APOCKET, CONSOLE BOX

main58825-30170iAZSH35,TZSH35202209

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-30190-A0iAZSH35,TZSH35..G,RS,Z202209-202404

FROMAGE,TRIM0#

main58833-30190-C0iAZSH35..X202209-202404

BLACK,TRIM20,21,22

main58833-30190-E0iAZSH35,TZSH35..G,RS,Z202209-202404

DK.CHESTNUT,TRIM23

main58833-30280-A0iAZSH35,TZSH35..G,RS,Z202404

FROMAGE,TRIM0#

main58833-30280-C0iAZSH35..X202404

BLACK,TRIM20,21

main58833-30280-E0iAZSH35,TZSH35..G,RS,Z202404

SADDLE TAN,TRIM24

main58833-30240-C1iTZSH35202404-202504

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-30120-A0iAZSH35,TZSH35..G,RS,Z202209-202404

FROMAGE,TRIM0#

main58834-30120-C0iAZSH35..X202209-202404

BLACK,TRIM20,21,22

main58834-30120-E0iAZSH35,TZSH35..G,RS,Z202209-202404

DK.CHESTNUT,TRIM23

main58834-30210-A0iAZSH35,TZSH35..G,RS,Z202404

FROMAGE,TRIM0#

main58834-30210-C0iAZSH35..X202404

BLACK,TRIM20,21

main58834-30210-E0iAZSH35,TZSH35..G,RS,Z202404

SADDLE TAN,TRIM24

main58834-30140-C1iAZSH35..Z202404

58839ACOVER, CONSOLE BOX HOLE

main58839-30090iAZSH35,TZSH35..G,RS202209-202404

58860AREGISTER ASSY, CONSOLE BOX

main58860-30150iAZSH35,TZSH35202209-202404

main58860-30180iAZSH35,TZSH35202404

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-30470-C1iAZSH35,TZSH35..RS,X202209-202404

DK.GRAY,TRIM2#

main58903-30510-C1iAZSH35..X202404

BLACK/DK.GRAY,TRIM2#

58916MAT, BOX BOTTOM

main58916-30230iAZSH35,TZSH35202209

58920AARMREST ASSY, REAR CONSOLE

main58920-30340-A0iAZSH35,TZSH35..G,RS,Z202404

FROMAGE/FROMAGE,TRIM00

main58920-30340-A1iAZSH35,TZSH35..G,RS,Z202404

FROMAGE/SATIN SILVER,TRIM00

main58920-30340-C0iAZSH35..X202209-202312

BLACK/BLACK,TRIM2#

main58920-30340-C1iAZSH35,TZSH35..G,RS,Z202312

BLACK/SATIN SILVER,TRIM20,21

main58920-30340-E0iAZSH35,TZSH35..G,RS,Z202209

DK.CHESTNUT/DK.CHESTNUT,TRIM23

main58920-30340-E4iAZSH35,TZSH35..G,RS,Z202404

SADDLE TAN/SATIN SILVER,TRIM24

main58920-30360-C1iTZSH35202404-202504

58932AGARNISH, REAR CONSOLE BOX

main58932-30070iAZSH35,TZSH35202209-202307

main58932-30100iAZSH35,TZSH35202308

58983RETAINER, UPPER CONSOLE

main58983-30190iAZSH35,TZSH35202209

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-30170iAZSH35,TZSH35202209

58993ABRACKET, CONSOLE BOX MOUNTING, LOWER

main58993-30100iAZSH35,TZSH35202209

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-30160iAZSH35,TZSH35202209-202404

main58996-30161iAZSH35,TZSH35202405

8202

8401

9011908313

main90119-08313

9015950327

main90159-50327

9046705171

main90467-05171

9046705172

main90467-05172

9155180828

main91551-80828

9167380616

main91673-80616

9356014012

main93560-14012

9356855014

main93568-55014

30 parts on this diagram · 1 diagram in section
