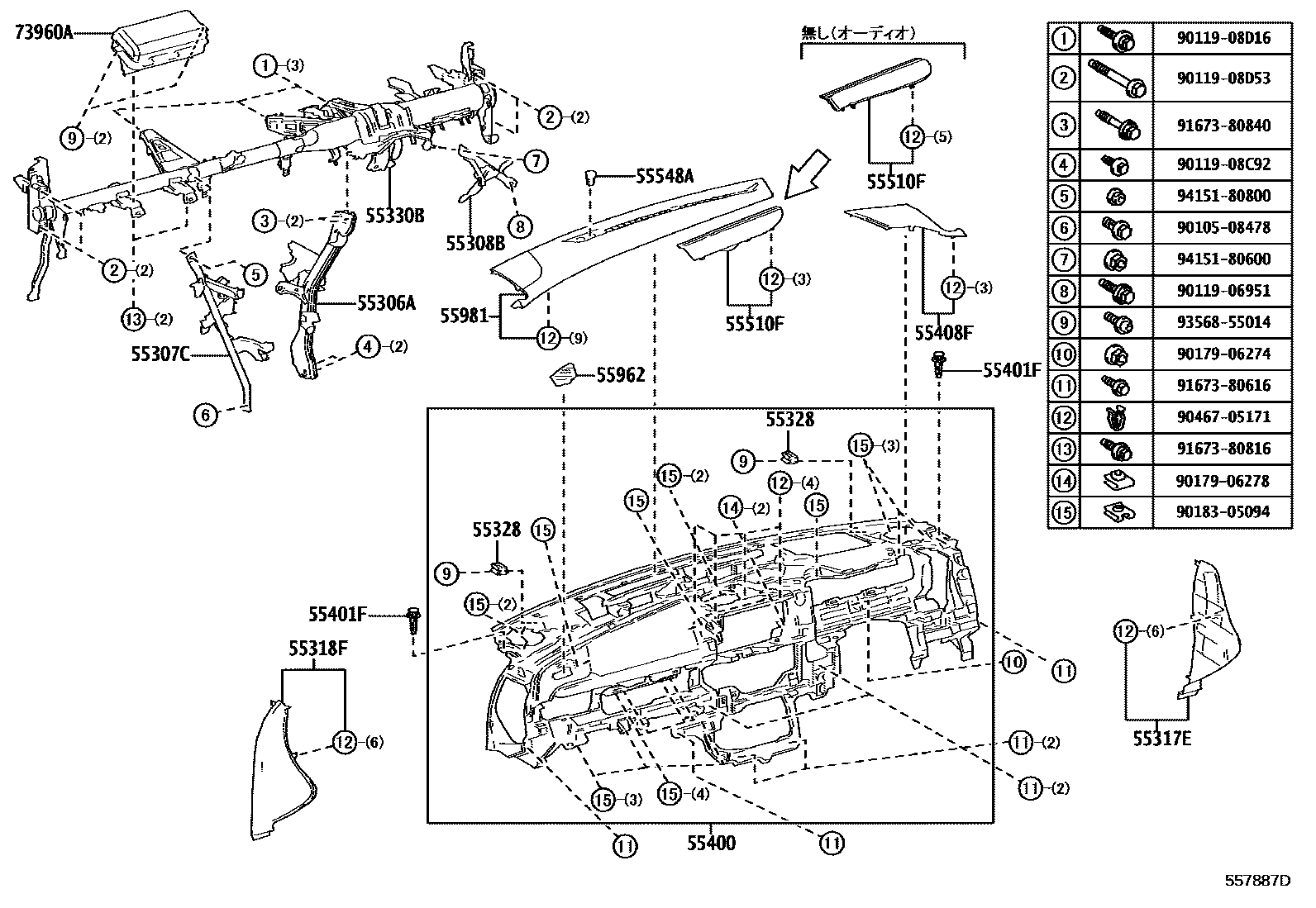

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-30350iAZSH35,TZSH35202209-202306

main55306-30351iAZSH35,TZSH35202307

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-30350iAZSH35,TZSH35202209

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-30250iAZSH35,TZSH35202209

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-30160-C0iAZSH35,TZSH35..G,RS,Z202209

BLACK,TRIM2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-30210-C0iAZSH35,TZSH35..G,RS,Z202209

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iAZSH35,TZSH35202209

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-30510iAZSH35,TZSH35202209-202211

main55330-30511iAZSH35,TZSH35202212-202307

main55330-30550iAZSH35,TZSH35202308

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-30320-C0supersedes 55400-30310-C0iTZSH35202209

SOFT BLACK,TRIM0#,20,23,24

main55400-30320-E0iAZSH35,TZSH35..G,RS,Z202209

OCHER,TRIM21

main55400-30360-C0iTZSH35202312

main55400-30370-C0iTZSH35202404-202504

55401FCLIP(FOR SAFETY PAD)

main52161-16010×2iAZSH35,TZSH35202209

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-30460iAZSH35,TZSH35202209

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-30270-C0iTZSH35202404

BLACK,TRIM0#,20,23,24

main55510-30270-E0iAZSH35,TZSH35..RS,Z202404

OCHER,TRIM21

main55510-30280-C0iTZSH35202209-202404

BLACK,TRIM0#,20,23,24

main55510-30280-E0iAZSH35,TZSH35..G,RS,Z202209-202404

OCHER,TRIM21

main55510-30360iAZSH35..X202209

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-26030iAZSH35,TZSH35202209-202307

main55548-30300iAZSH35,TZSH35..RS,Z202308-202404

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30140-C0iTZSH35202209

BLACK,TRIM0#,20,23,24

main55962-30140-E0iAZSH35,TZSH35..G,RS,Z202209

OCHER,TRIM21

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30190iAZSH35,TZSH35202209

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-30140iAZSH35,TZSH35202209

9010508478

main90105-08478

9011906951

main90119-06951

9011908C92

main90119-08C92

9011908D16

main90119-08D16

9011908D53

main90119-08D53

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9167380840

main91673-80840

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

30 parts on this diagram · 4 diagrams in section
