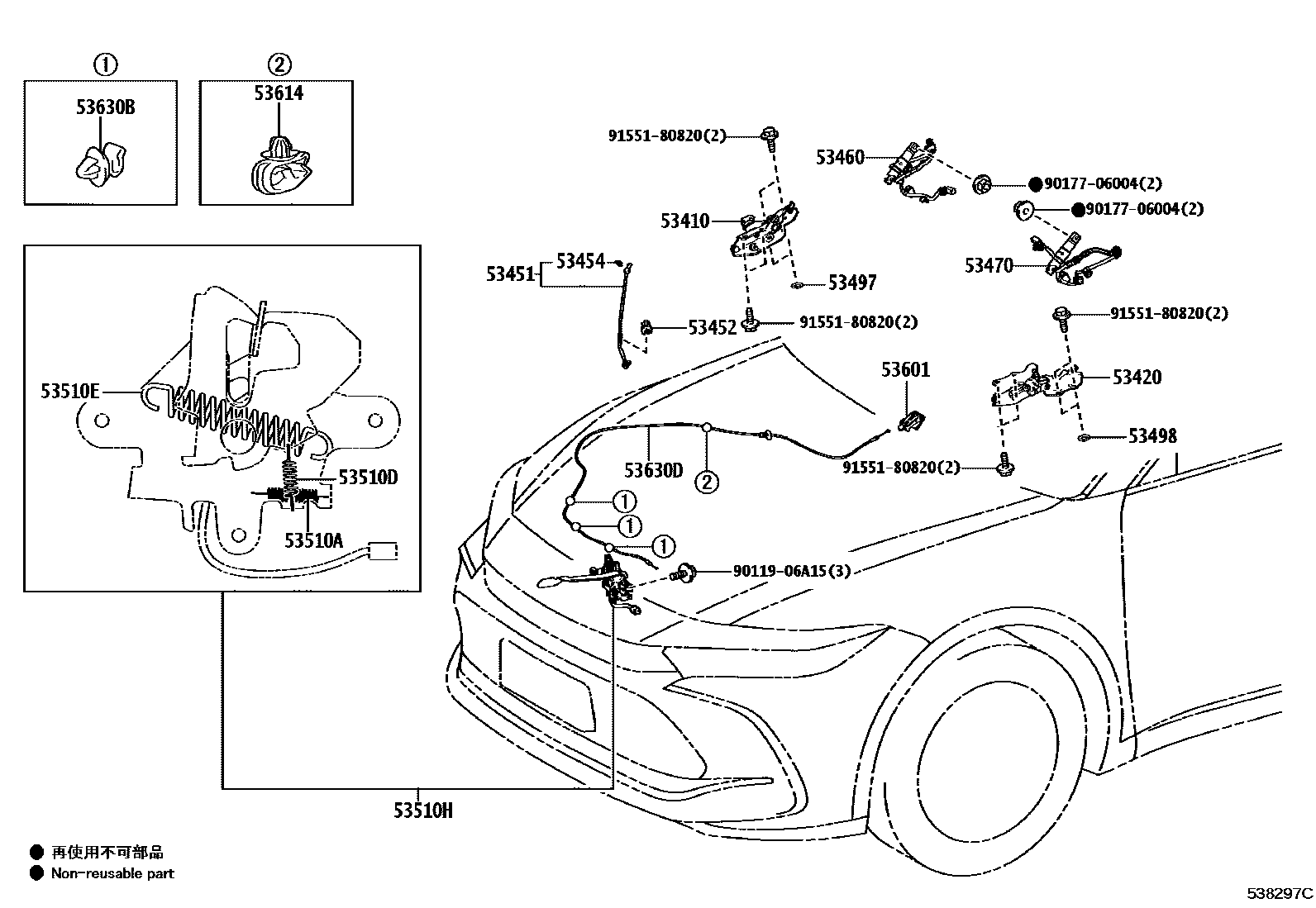

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-30370iAZSH35,TZSH35202209

53420HINGE ASSY, HOOD, LH

main53420-30380iAZSH35,TZSH35202209

53451ROD, HOOD SUPPORT

main53440-30210iAZSH35,TZSH35202209

53452HOLDER, HOOD STAY

main53452-10010iAZSH35,TZSH35202209

53454CLIP, HOOD SUPPORT ROD

main53454-12030iAZSH35,TZSH35202209

53460LIFTER ASSY, POP UP HOOD, RH

main53460-30160iAZSH35,TZSH35202209

53470LIFTER ASSY, POP UP HOOD, LH

main53470-30140iAZSH35,TZSH35202209

53497PAD, HOOD HINGE, NO.1

main53497-50020×2iAZSH35,TZSH35202209

53498PAD, HOOD HINGE, NO.2

main53497-50020×2iAZSH35,TZSH35202209

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAZSH35,TZSH35202209

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAZSH35,TZSH35202209

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iAZSH35,TZSH35202209

53510HLOCK ASSY, HOOD, RH, W/COURTESY LAMP SWITCH

main53510-30400iAZSH35,TZSH35202209

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iAZSH35,TZSH35..G,RS,Z; AZSH35..X202209

BLACK,TRIM0#,2#; BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-16790iAZSH35,TZSH35202209

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iAZSH35,TZSH35202209

53630DSET, CABLE & LEVER, HOODLOCK CONTROL

main53630-30380iAZSH35,TZSH35202209

9011906A15

main90119-06A15

9017706004

main90177-06004

9155180820

main91551-80820

20 parts on this diagram · 1 diagram in section
