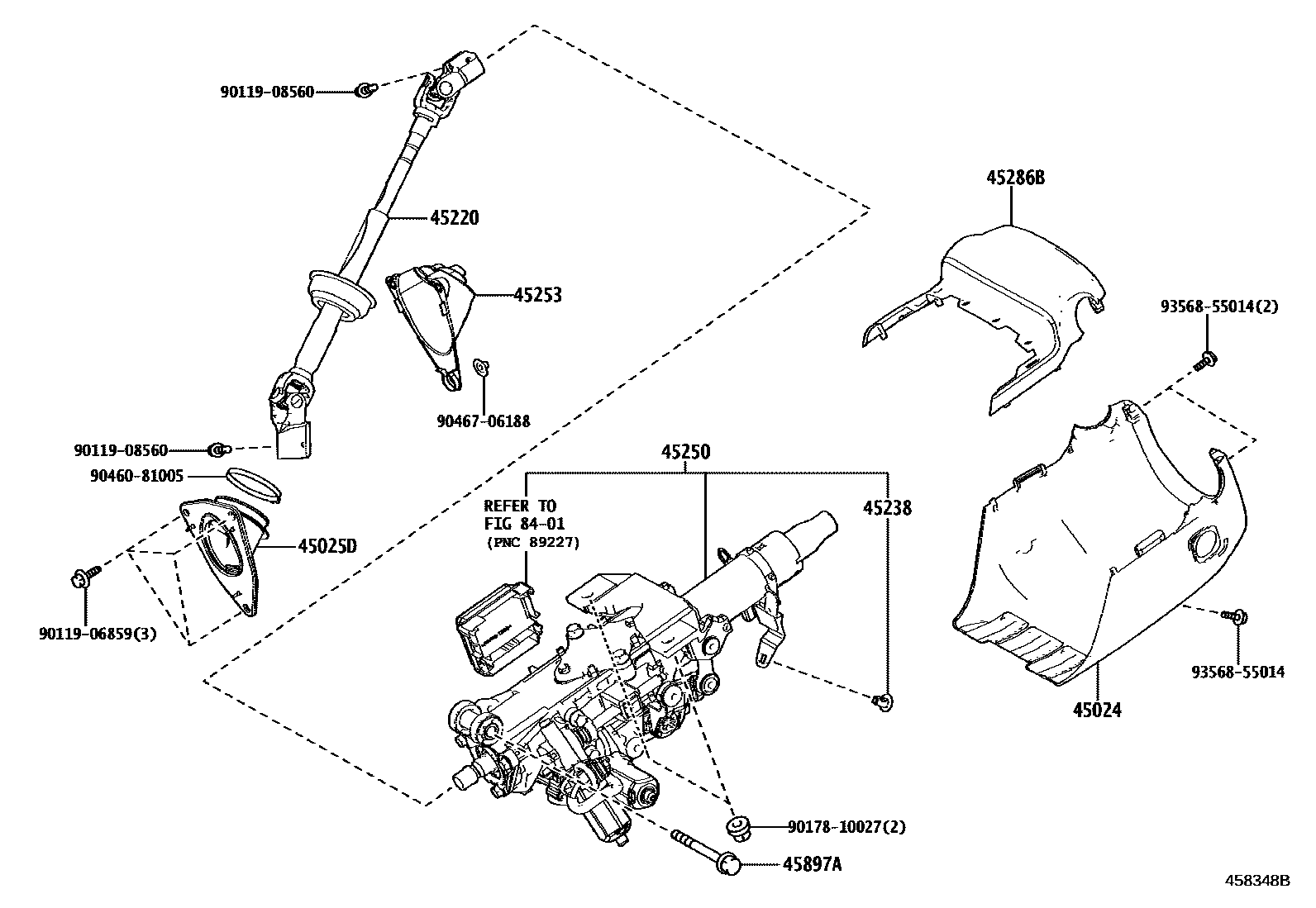

STEERING COLUMN & SHAFT

0001 1��������� & �������� 0002 1�������� & ��������

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-30130-C0iAZSH35,TZSH35..G,RS,Z202209

BLACK,TRIM0#,2#

main45024-30140-C0iAZSH35..X202209

BLACK,TRIM2#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-48110iAZSH35,TZSH35202209

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-42020iAZSH35,TZSH35202209

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iAZSH35,TZSH35..G,RS,Z202209

main45238-52010iAZSH35..X202209

45250COLUMN ASSY, STEERING

main45250-33D20iAZSH35..X202209-202404

main45250-46060iAZSH35,TZSH35..G,RS,Z202404

main45250-48420iAZSH35,TZSH35..G,RS,Z202209-202404

main45250-60D90iAZSH35..X202404

45253COVER, STEERING COLUMN HOLE

main45253-48070iAZSH35,TZSH35202209

45286BCOVER, STEERING COLUMN, UPR

main45286-30A70-C0supersedes 45286-30A80-C0iAZSH35..Z202209

BLACK,TRIM0#,2#

main45286-30A80-C0supersedes 45286-30A70-C0iAZSH35..G; AZSH35..X202209

BLACK,TRIM0#,2#; BLACK,TRIM2#

45897ABOLT, TILT STEERING PAWL SET

main90119-10A34iAZSH35,TZSH35202209

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906859

main90119-06859

9011908560

main90119-08560

9017810027

main90178-10027

9046081005

main90460-81005

9046706188

main90467-06188

9356855014

main93568-55014

15 parts on this diagram · 2 diagrams in section
