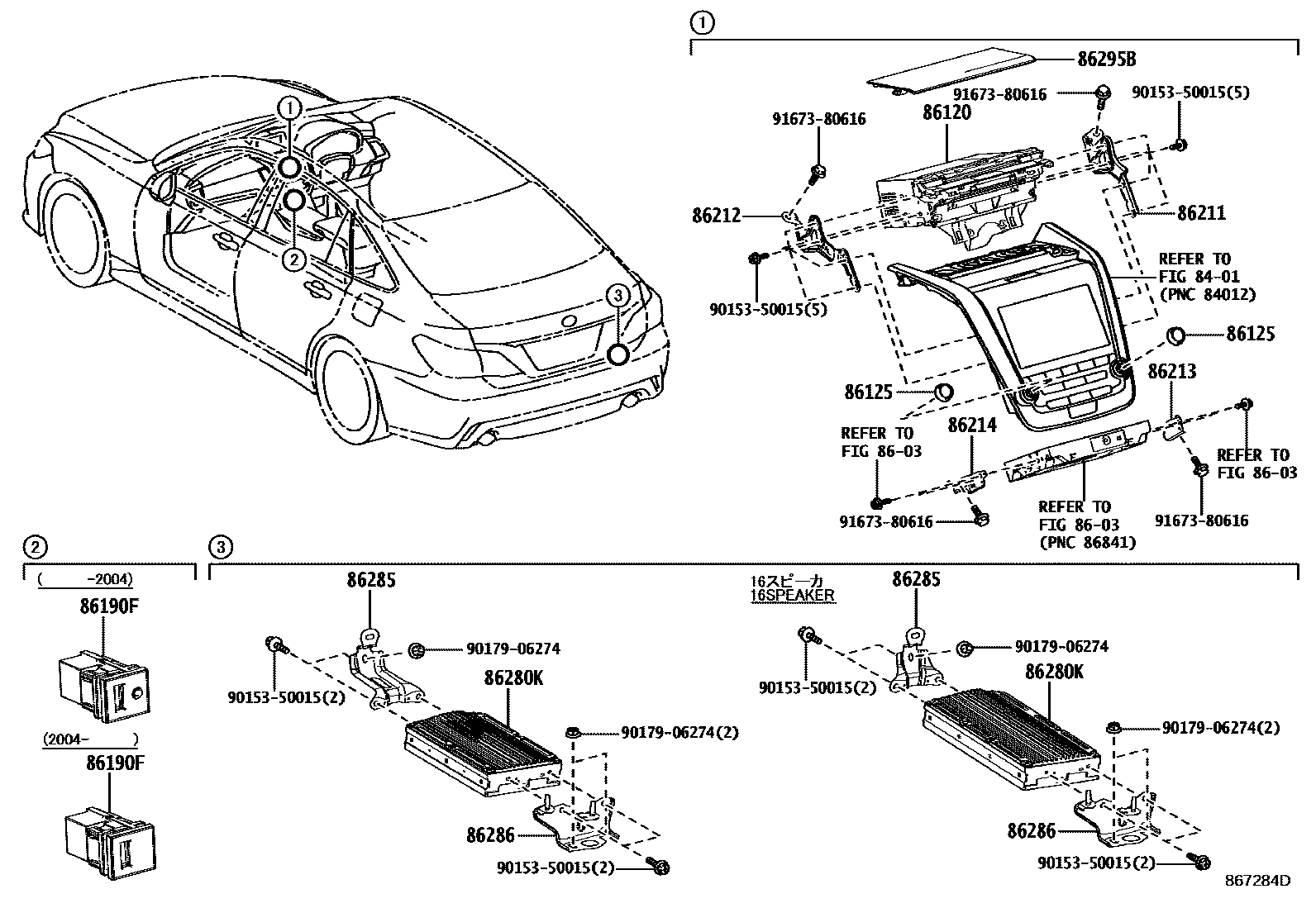

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1������

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-30P00iARS220,AZSH2#,GWS224201806-202004

main86120-30P20iARS220,AZSH2#,GWS224202004-202010

main86120-30P30iARS220,AZSH21..RS,RSB; AZSH21..RSB202011

86125KNOB, RADIO RECEIVER SWITCH

main86125-30090×2iARS220,AZSH2#,GWS224201806-202010

86190FADAPTER ASSY, STEREO JACK

main86190-12070iARS220,AZSH2#,GWS224202004-202010

main86190-33060iARS220,AZSH2#,GWS224201806-202004

main86190-52070iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

86211BRACKET, RADIO, NO.1

main86211-30420iARS220,AZSH2#,GWS224201806-202010

main86211-30460iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

main86211-30470iAZSH21..B;AZSH20..B,RSB202011-202204

86212BRACKET, RADIO, NO.2

main86212-30380iARS220,AZSH2#,GWS224201806-202010

main86212-30420iARS220,AZSH21..RS,RSB202011

main86212-30430iAZSH21..B;AZSH20..B,RSB202011-202204

86213BRACKET, RADIO, NO.3

main86211-30440iARS220,AZSH2#,GWS224201806-202010

86214BRACKET, RADIO, NO.4

main86212-30400iARS220,AZSH2#,GWS224201806-202010

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-30780iARS220,AZSH2#,GWS224201806-202003

main86280-30880iARS220,AZSH2#,GWS224202004-202010

main86280-30790iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF201806-202003

main86280-30890iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF202004-202010

main86280-30A00iAZSH21..RSB202011

86285BRACKET, AMPLIFIER, NO.1

main86285-30400iARS220,AZSH21..RS,RSB; AZSH21..RSB202011

main86285-30410iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF201806-202004

86286BRACKET, AMPLIFIER, NO.2

main86286-30150iARS220,AZSH2#,GWS224201806-202010

86295BBASE, TELEVISION

main86295-30030iARS220,AZSH2#,GWS224201806-202010

9015350015

main90153-50015

9017906274

main90179-06274

9167380616

main91673-80616

16 parts on this diagram · 3 diagrams in section
