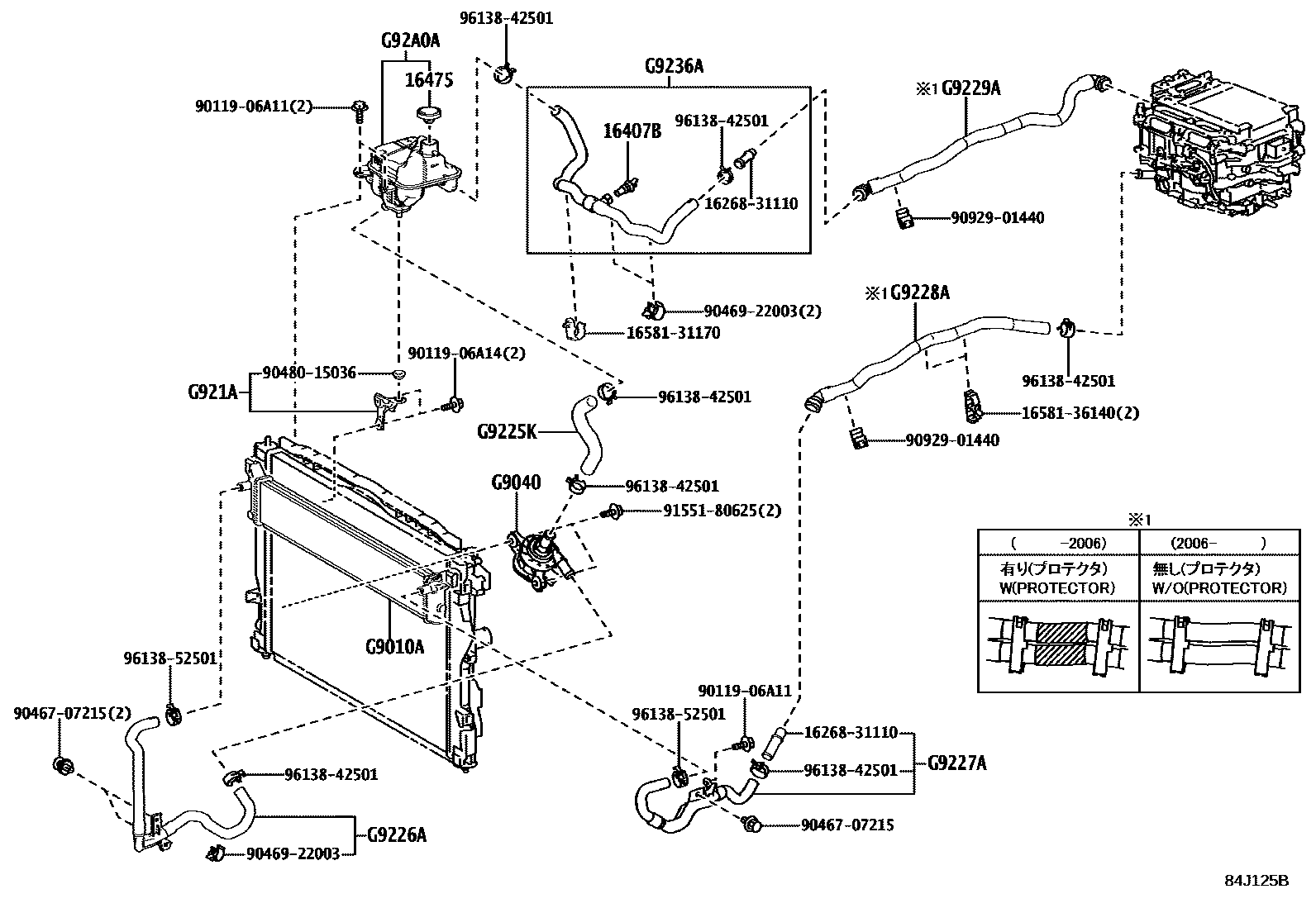

INVERTER COOLING

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25AFXS,8GRFXS..AZSH2#,GWS224201806-202010

16475CAP, RESERVE TANK

main16475-28140iA25AFXS,8GRFXS..AZSH2#,GWS224201806-202010

G9010ARADIATOR ASSY

mainG901030070iAZSH2#,GWS224201806-202010

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904033050iAZSH2#,GWS224201806-202010

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H230020iAZSH2#,GWS224201806-202010

G9225KHOSE, INVERTER COOLING, NO.1

mainG922530220iAZSH2#,GWS224201806-202010

G9226AHOSE, INVERTER COOLING, NO.2

mainG922611010iAZSH2#,GWS224201806-202010

G9227AHOSE, INVERTER COOLING, NO.3

mainG922730040iAZSH2#,GWS224201806-202010

G9228AHOSE, INVERTER COOLING, NO.4

mainG922811040iAZSH2#,GWS224201806-202006

mainG922811041iAZSH2#,GWS224202006-202010

G9229AHOSE, INVERTER COOLING, NO.5

mainG922911040iAZSH2#,GWS224201806-202006

mainG922911041iAZSH2#,GWS224202006-202010

G9236AHOSE, INVERTER COOLING, NO.6

mainG923630020iAZSH2#,GWS224201806-202010

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H030020iAZSH2#,GWS224201806-202010

1626831110PIPE, WATER BY-PASS, NO.1

main16268-31110

1658131170CLAMP, HOSE(FOR WATER HOSE)

main16581-31170

1658136140CLAMP, HOSE(FOR WATER HOSE)

main16581-36140

9011906A11

main90119-06A11

9011906A14

main90119-06A14

9046707215

main90467-07215

9046922003

main90469-22003

9048015036

main90480-15036

9092901440

main90929-01440

9155180625

main91551-80625

9613842501

main96138-42501

9613852501

main96138-52501

24 parts on this diagram · 1 diagram in section
