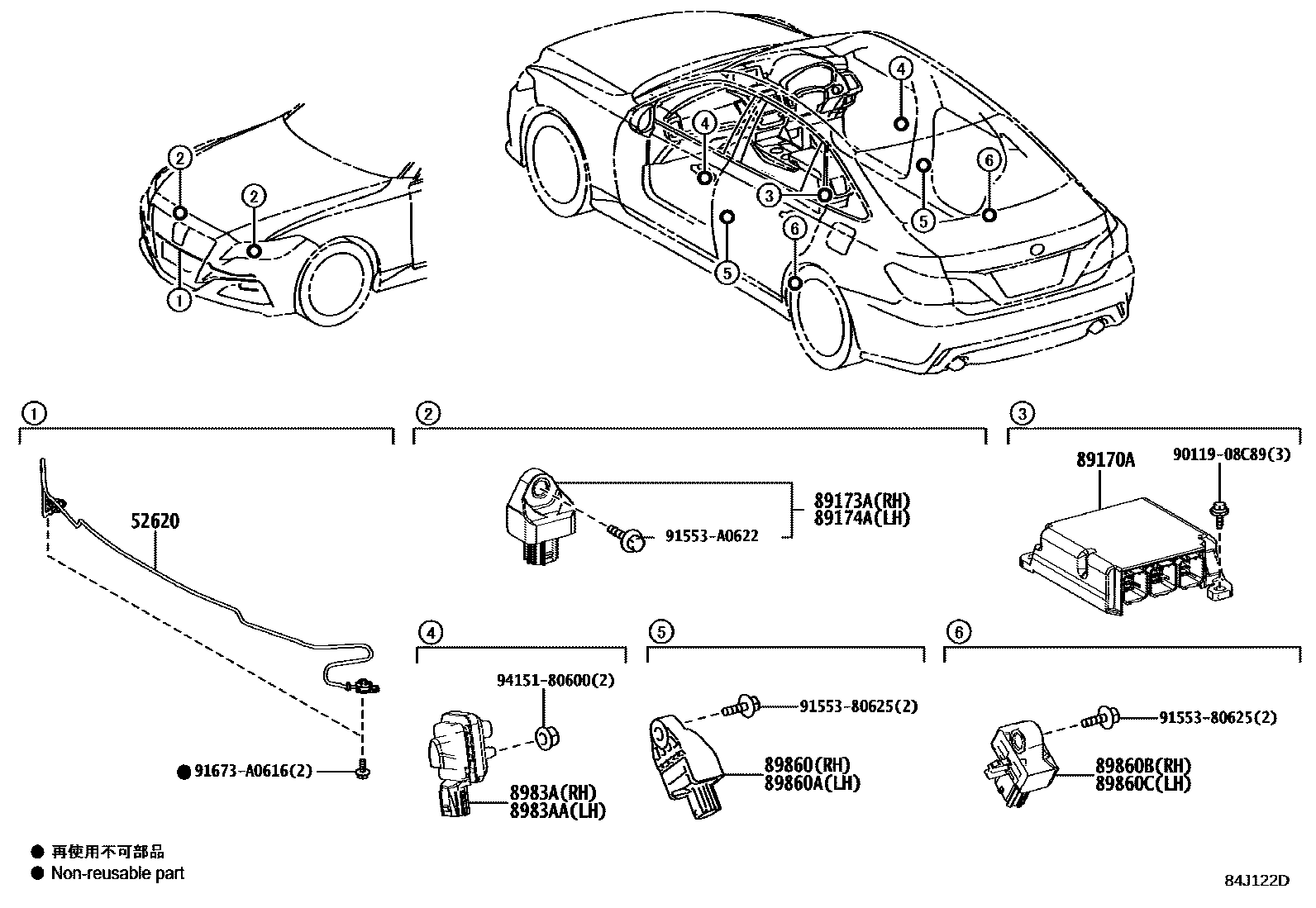

AIR BAG

52620CHAMBER ASSY, PEDESTRIAN DETECTION

main52620-30050iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

89170ACOMPUTER ASSY, AIRBAG

main89170-30F20iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

main89170-30G70iARS220,AZSH2#,GWS224201806-202010

89173ASENSOR, AIRBAG, FRONT RH

main89173-19505iARS220,AZSH21..RS,RSB202011

89174ASENSOR, AIRBAG, FRONT LH

main89173-19505iARS220,AZSH21..RS,RSB202011

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-33010iARS220,AZSH2#,GWS224202011-202012

main8983A-33011iARS220,AZSH21..RS,RSB202101

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-33010iARS220,AZSH2#,GWS224201806-202009

main8983A-33011iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202101-202204

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28050iARS220,AZSH2#,GWS224201806-202010

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28050iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-28030iARS220,AZSH2#,GWS224201806-202010

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-28030iARS220,AZSH2#,GWS224201806-202010

9011908C89

main90119-08C89

9155380625

main91553-80625

91553A0622

main91553-A0622

91673A0616

main91673-A0616

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section
