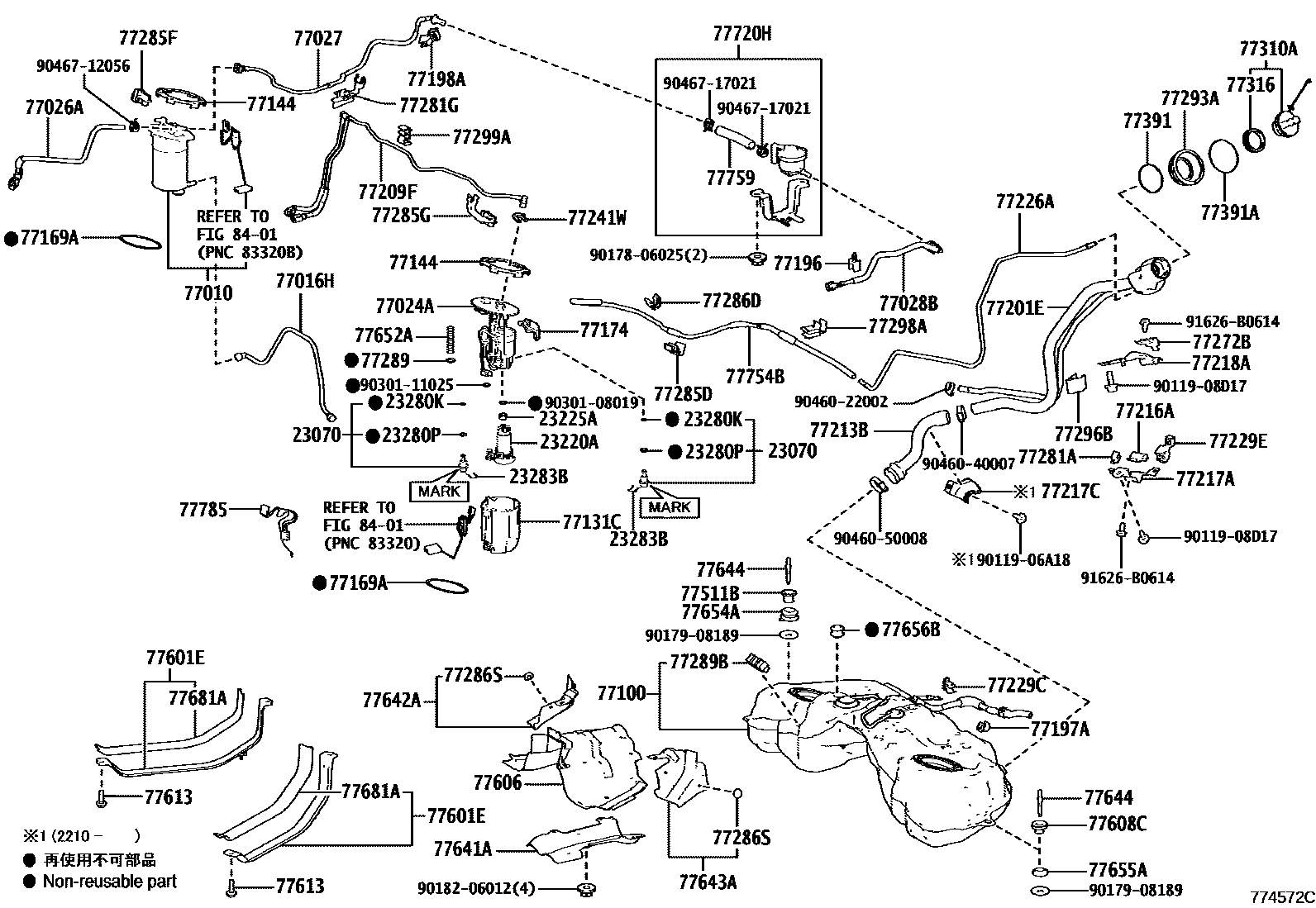

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
main23070-31030iA25AFXS..AZSH20;A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23280PRING, O(FOR FUEL PRESSURE REGULATOR), NO.3
23283BHOLDER, FUEL PRESSURE REGULATOR
main23283-36010×2iA25AFXS..AZSH20;A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204
77010TUBE ASSY, FUEL TANK VENT
77016HTUBE SUB-ASSY, FUEL RETURN VENT
77024APLATE SUB-ASSY, FUEL SUCTION
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77028BTUBE SUB-ASSY, FUEL EVAPORATION, NO.3
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77198ACLAMP, EVAPORATION VENT TUBE, NO.3
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77272BSUPPORT, BREATHER TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77281GCLAMP, FUEL HOSE
77285DCLAMP, FUEL TUBE, NO.1
77285FCLAMP, FUEL TUBE, NO.1
77285GCLAMP, FUEL TUBE, NO.1
77286DCLAMP, FUEL TUBE, NO.2
77286SCUSHION, FUEL TANK PROTECTOR
77289HOLDER, FUEL TANK PIPE SETTING
77289BCLAMP, FUEL TUBE, NO.3
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77298ACLAMP, FUEL TUBE, NO.4
77299ACLAMP, FUEL TUBE, NO.5
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77511BBRACKET, FUEL TANK
77601EBAND SUB-ASSY, FUEL TANK
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608CCUSHION SET, FUEL TANK
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77643APROTECTOR, FUEL TANK, NO.3
77644BOLT, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
77654ACUSHION, FUEL TANK, NO.4
77655ACUSHION, FUEL TANK, NO.5
77656BCUSHION, FUEL TANK, NO.6
77681ASEAT, FUEL TANK BAND
77720HVALVE ASSY, FUEL OUTLET
77754BHOSE, CHARCOAL CANISTER OUTLET
77759HOSE, CHARCOAL CANISTER
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
9011906A18
main90119-06A18
9011908D17
main90119-08D17
9017806025
main90178-06025
9017908189
main90179-08189
9018206012
main90182-06012
9030108019
main90301-08019
9030111025
main90301-11025
9046022002
main90460-22002
9046040007
main90460-40007
9046050008
main90460-50008
9046712056
main90467-12056
9046717021
main90467-17021
91626B0614
main91626-B0614
82 parts on this diagram · 7 diagrams in section
