MUDGUARD & SPOILER

53851LPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-30140iARS220,AZSH2#,GWS224201806-202010

main53851-30160iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

53852LPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-30140iARS220,AZSH2#,GWS224201806-202010

main53852-30160iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

53879FRETAINER, FRONT FENDER LINER

main53879-47020×2iARS220,AZSH2#,GWS224201806-202010

53879VRETAINER, FRONT FENDER LINER

main53879-47020×2iARS220,AZSH2#,GWS224201806-202010

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-30010iARS220,AZSH2#,GWS224201806-202010

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-30010iARS220,AZSH2#,GWS224201806-202010

75867BCLIP, ROCKER PANEL MOULDING

main75867-33050iARS220,AZSH2#,GWS224201806-202010

75868ECLIP, ROCKER PANEL MOULDING, NO.2

main75867-33050iARS220,AZSH2#,GWS224201806-202010

76085SPOILER SUB-ASSY, REAR

main76085-30110-A0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF201806-202010

WHITE PEARL CS.,062

main76085-30110-A1iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF202011

PRECIOUS WHITE PEARL,090

main76085-30110-B0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF202011

SILVER ME.,1F7

main76085-30110-B1iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF201806-202010

PRECIOUS SILVER,1J6

main76085-30110-B2iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF201806-202010

PRECIOUS GALENA,1K5

main76085-30110-B3iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF202011

PRECIOUS METAL,1L5

main76085-30110-C0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF201806-202010

BLACK,202

main76085-30110-C1iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF202011

PRECIOUS BLACK,219

main76085-30110-D0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201809-202010

DEEP RED M.M.,3R9

main76085-30110-D1iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201809-202010

RICH RED CS. GF.,3U2

main76085-30110-D3iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF202011

EMOTIONAL RED 2,3U5

main76085-30110-E0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

ORANGE ME.,4R8

main76085-30110-G0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-201910

ALUMINA JADE ME.,6W4

main76085-30110-J0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF202011

DK.BLUE MC.,8S6

main76085-30110-J1iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201809-202010

DK.BLUE M.M.,8W7

main76085-30110-J2iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

PURE BLUE ME.,8Y1

76085ACAP(FOR REAR SPOILER)

main90467-09206×6iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF201806-202010

76621FSCREW, NO.1

main90159-60477×6iARS220,AZSH2#,GWS224201806-202010

76781TAPE, REAR SPOILER, UPPER RH

main76781-30020iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF201806-202010

76781ATAPE, REAR SPOILER, UPPER NO.1

main76781-30010iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF201806-202010

76782TAPE, REAR SPOILER, UPPER LH

main76782-30010iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF201806-202010

76783ATAPE, REAR SPOILER, LOWER NO.1

main76783-30010iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF201806-202010

76865BRETAINER, REAR SPOILER

main76865-30010×2iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF201806-202010

76887SEAL, REAR SPOILER

main76887-30030×2iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF201806-202010

9010506333

main90105-06333

9015960431

main90159-60431

9015960477

main90159-60477

9018906006

main90189-06006

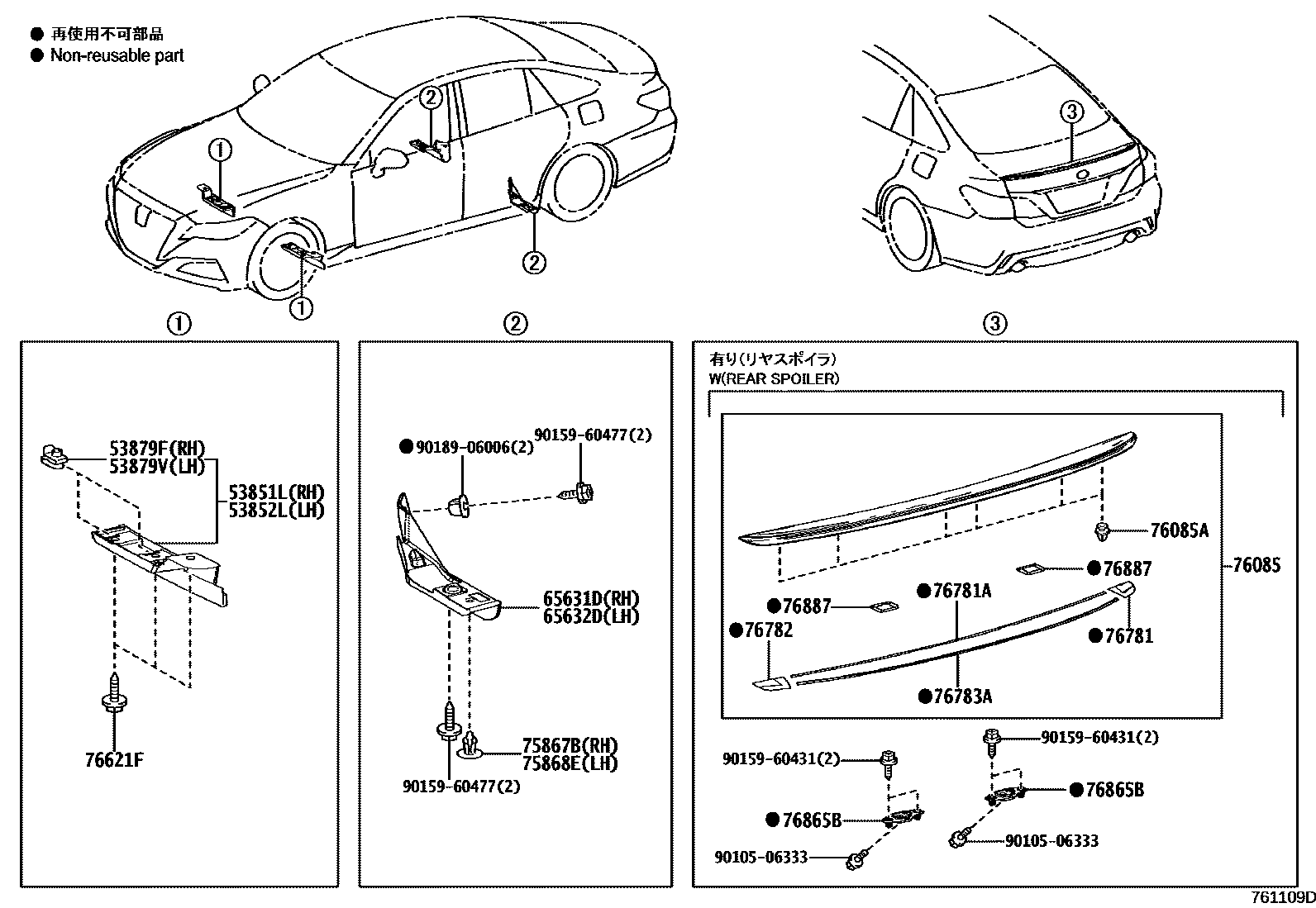

21 parts on this diagram · 1 diagram in section
