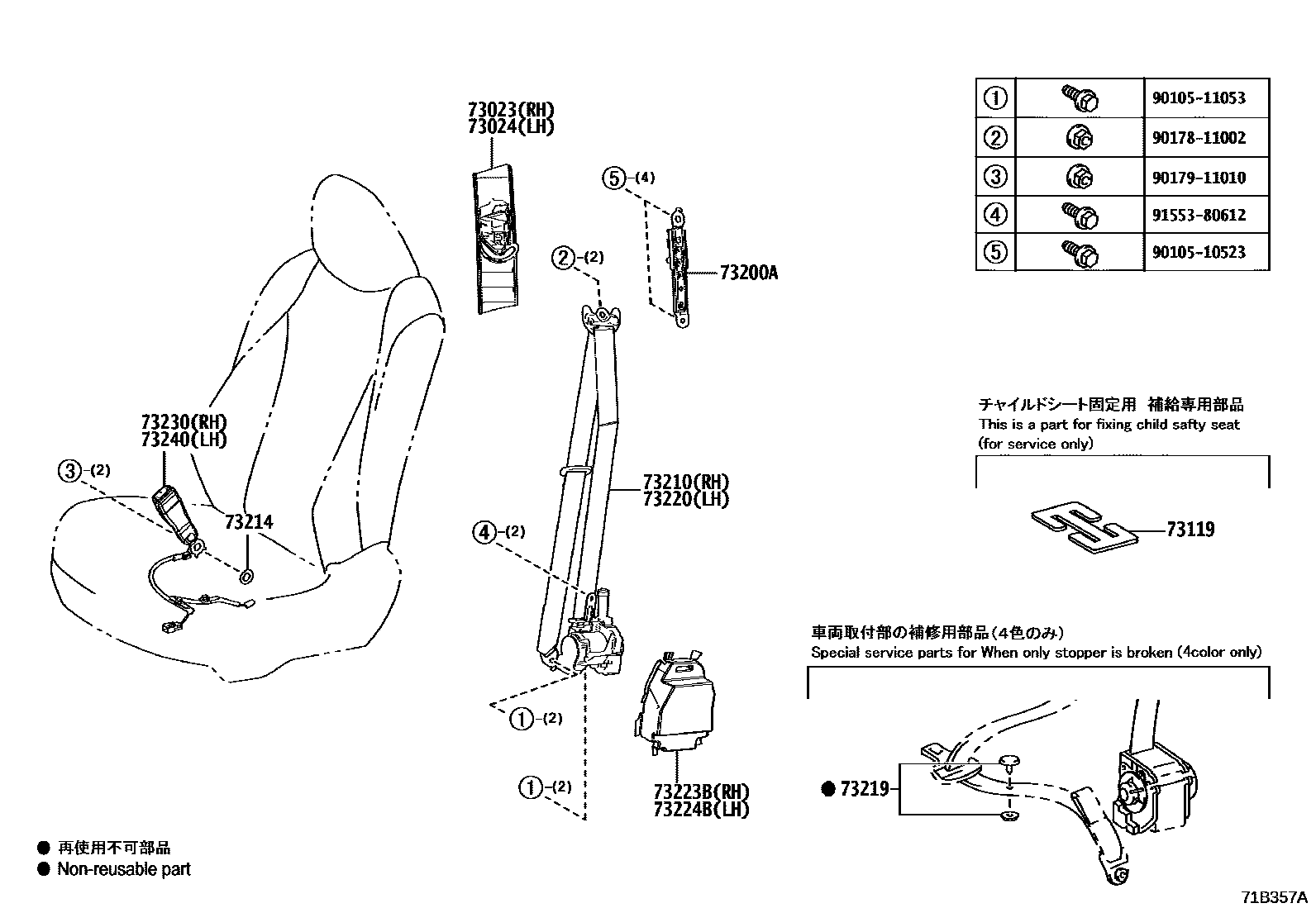

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM1#
main73023-58010-C1iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF; ARS220,AZSH2#..S,SF; AZSH21,GWS224..GEXEC,GEXEF; GWS224..S;ARS220,AZSH2#..B,G,GF,RSB201806-202010
BLACK,TRIM0#,2#,3#,4#,8#; BLACK,TRIM1#,2#,3#,41; BLACK,TRIM2#; BLACK,TRIM2#,3#
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM1#
main73024-58010-C1iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF; ARS220,AZSH2#..S,SF; AZSH21,GWS224..GEXEC,GEXEF; GWS224..S;ARS220,AZSH2#..B,G,GF,RSB201806-202010
BLACK,TRIM0#,2#,3#,4#,8#; BLACK,TRIM1#,2#,3#,41; BLACK,TRIM2#; BLACK,TRIM2#,3#
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-30F70-C0iARS220,AZSH2#,GWS224..RSADF,RSADV; ARS220,AZSH2#..RS,RSF; ARS220,AZSH2#..S,SF; ARS220..RSB; AZSH21,GWS224..GEXEC,GEXEF; GWS224..S;ARS220,AZSH2#..B,G,GF201806-202010
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#,8#; BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK/BLACK,TRIM2#
main73220-50500-C4iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF; ARS220,AZSH2#..S,SF; ARS220..RSB; AZSH21,GWS224..GEXEC,GEXEF; GWS224..S;ARS220,AZSH2#..B,G,GF201806-202010
BLACK,TRIM0#,2#,3#,4#,8#; BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-30C50-C0iARS220,AZSH2#..RS,RSF; ARS220,AZSH2#..S,SF; ARS220..B;GWS224..S; ARS220..RSB201806-202010
BLACK,TRIM0#,2#,3#,4#,8#; BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#
main73230-30C70-C0supersedes 73230-30C50-C0iARS220,AZSH2#,GWS224..RSADF,RSADV; ARS220,AZSH2#..G,GF; ARS220,AZSH2#..RS,RSF; AZSH21,GWS224..GEXEC,GEXEF201806-202010
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-30530-C0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF; ARS220,AZSH2#..S,SF; ARS220..RSB; AZSH21,GWS224..GEXEC,GEXEF; GWS224..S;ARS220,AZSH2#..B,G,GF201806-202010
BLACK,TRIM0#,2#,3#,4#,8#; BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
9010510523
main90105-10523
9010511053
main90105-11053
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612
17 parts on this diagram · 2 diagrams in section
