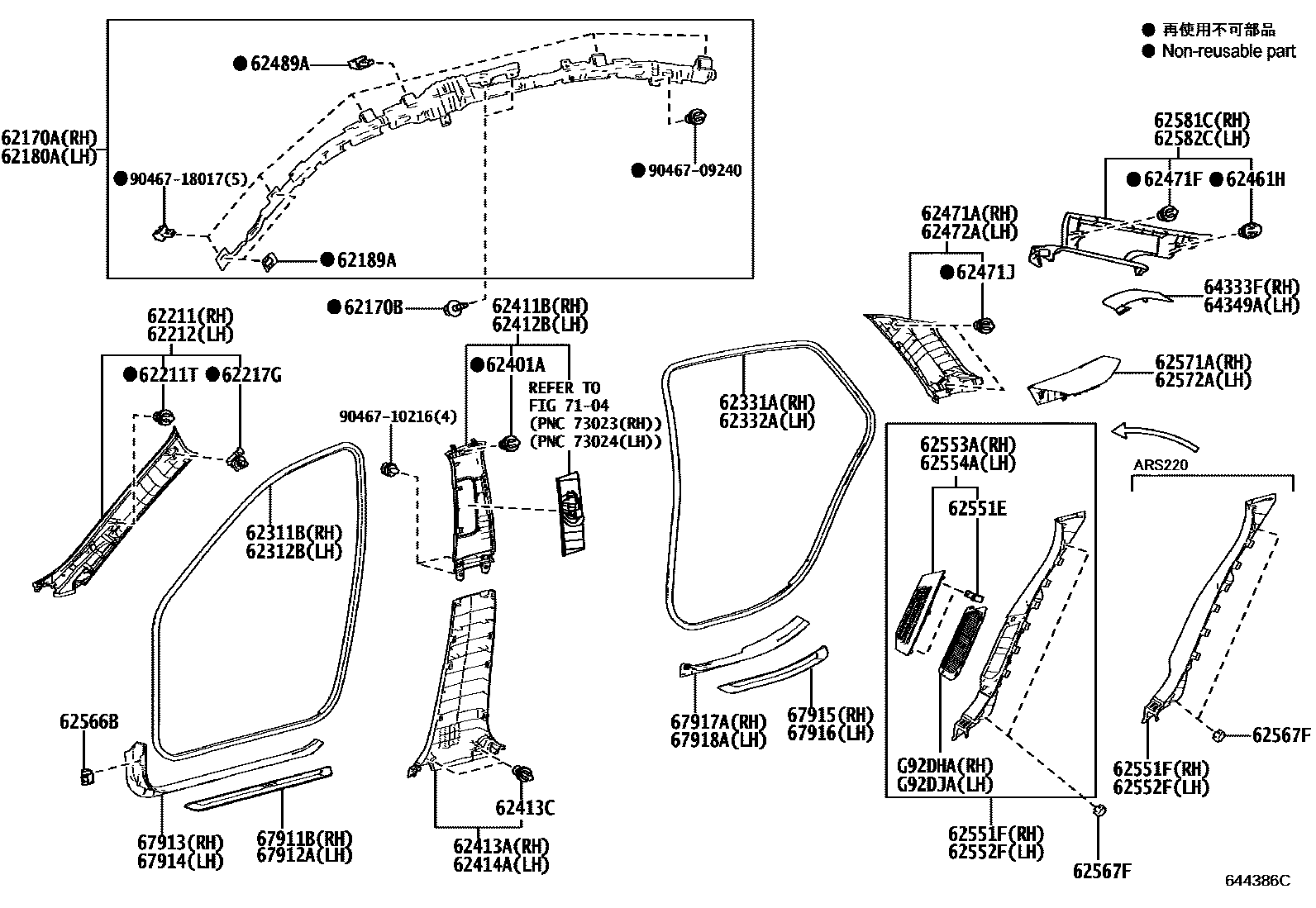

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-30180iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

62170BBOLT, W/WASHER

main90119-06869iARS220,AZSH21..RS,RSB201806-202204

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-30180iARS220,AZSH21..RS,RSB201806-202204

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iARS220,AZSH2#,GWS224201806-202204

62211GARNISH, FRONT PILLAR, RH

main62210-30160-C2iARS220,AZSH2#..S,SF201806-202004

BLACK,TRIM2#,3#

main62210-30160-C2iGWS224..S;ARS220,AZSH2#..B,G,GF,RSB201806-202004

BLACK,TRIM2#

main62210-30160-C2iGWS224..S;ARS220,AZSH2#..B,G,GF,RSB201806-202004

BLACK,TRIM0#,2#,3#,4#,8#

main62210-30160-C2iGWS224..S;ARS220,AZSH2#..B,G,GF,RSB201806-202004

BLACK,TRIM2#,3#,41

main62210-30160-E1iARS220,AZSH2#..S,SF201806-202004

NEUTRAL BEIGE,TRIM40

main62210-30160-E1iARS220,AZSH2#..S,SF201806-202004

NEUTRAL BEIGE,TRIM4#

main62210-30170-B0iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

LT.GRAY,TRIM1#

main62210-30170-C1iARS220,AZSH2#..S,SF202004-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62210-30170-C1iAZSH21,GWS224..GEXEC,GEXEF202004-202204

BLACK,TRIM2#

main62210-30170-C1iAZSH21,GWS224..GEXEC,GEXEF202004-202010

BLACK,TRIM1#,2#,3#,41

main62210-30170-C1iAZSH21,GWS224..GEXEC,GEXEF202004-202010

BLACK,TRIM2#,3#

main62210-30170-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main62210-30170-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#,4#

main62210-30170-E1iARS220,AZSH2#..S,SF202004-202010

NEUTRAL BEIGE,TRIM4#

main62210-30170-E1iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF202004-202010

NEUTRAL BEIGE,TRIM40

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iARS220,AZSH21..RS,RSB201806-202204

62212GARNISH, FRONT PILLAR, LH

main62220-30160-C2iAZSH21,GWS224..GEXEC,GEXEF201806-202004

BLACK,TRIM2#

main62220-30160-C2iAZSH21,GWS224..GEXEC,GEXEF201806-202004

BLACK,TRIM0#,2#,3#,4#,8#

main62220-30160-C2iAZSH21,GWS224..GEXEC,GEXEF201806-202004

BLACK,TRIM2#,3#,41

main62220-30160-C2iAZSH21,GWS224..GEXEC,GEXEF201806-202004

BLACK,TRIM2#,3#

main62220-30160-E1iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF201806-202004

NEUTRAL BEIGE,TRIM4#

main62220-30160-E1iARS220,AZSH2#..S,SF201806-202004

NEUTRAL BEIGE,TRIM40

main62220-30170-B0iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

LT.GRAY,TRIM1#

main62220-30170-C1iARS220,AZSH2#..S,SF202004-202204

BLACK,TRIM2#

main62220-30170-C1iARS220,AZSH2#..S,SF202004-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62220-30170-C1iARS220,AZSH2#..S,SF202004-202010

BLACK,TRIM1#,2#,3#,41

main62220-30170-C1iARS220,AZSH2#..S,SF202004-202010

BLACK,TRIM2#,3#

main62220-30170-C1iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

BLACK,TRIM0#,2#

main62220-30170-C1iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

BLACK,TRIM2#,4#

main62220-30170-E1iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF202004-202010

NEUTRAL BEIGE,TRIM40

main62220-30170-E1iARS220,AZSH2#..S,SF202004-202010

NEUTRAL BEIGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-24020iARS220,AZSH21..RS,RSB201806-202204

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-30190iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-30260iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-30200iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-30200iARS220,AZSH21..RS,RSB201806-202204

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-30370-C1iGWS224..S;ARS220,AZSH2#..B,G,GF,RSB201806-202004

BLACK,TRIM0#,2#,3#,4#,8#

main62410-30370-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202004

BLACK,TRIM2#

main62410-30370-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202004

BLACK,TRIM2#,3#,41

main62410-30370-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202004

BLACK,TRIM2#,3#

main62410-30370-E0iARS220,AZSH2#..S,SF201806-202004

NEUTRAL BEIGE,TRIM4#

main62410-30370-E0iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF201806-202004

NEUTRAL BEIGE,TRIM40

main62410-30380-B0iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

LT.GRAY,TRIM1#

main62410-30380-C1iARS220,AZSH2#..S,SF202004-202204

BLACK,TRIM2#

main62410-30380-C1iARS220,AZSH2#..S,SF202004-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62410-30380-C1iARS220,AZSH2#..S,SF202004-202010

BLACK,TRIM1#,2#,3#,41

main62410-30380-C1iARS220,AZSH2#..S,SF202004-202010

BLACK,TRIM2#,3#

main62410-30380-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main62410-30380-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#,4#

main62410-30380-E1iARS220,AZSH2#..S,SF202004-202010

NEUTRAL BEIGE,TRIM4#

main62410-30380-E1iARS220,AZSH2#..S,SF202004-202010

NEUTRAL BEIGE,TRIM40

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-30350-C1iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202004

BLACK,TRIM2#,3#

main62420-30350-C1iARS220,AZSH2#..S,SF201806-202004

BLACK,TRIM2#

main62420-30350-C1iARS220,AZSH2#..S,SF201806-202004

BLACK,TRIM0#,2#,3#,4#,8#

main62420-30350-C1iARS220,AZSH2#..S,SF201806-202004

BLACK,TRIM2#,3#,41

main62420-30350-E0iARS220,AZSH2#..S,SF201806-202004

NEUTRAL BEIGE,TRIM4#

main62420-30350-E0iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF201806-202004

NEUTRAL BEIGE,TRIM40

main62420-30360-B0iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

LT.GRAY,TRIM1#

main62420-30360-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#,4#

main62420-30360-C1iAZSH21,GWS224..GEXEC,GEXEF202004-202204

BLACK,TRIM2#

main62420-30360-C1iAZSH21,GWS224..GEXEC,GEXEF202004-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62420-30360-C1iAZSH21,GWS224..GEXEC,GEXEF202004-202010

BLACK,TRIM1#,2#,3#,41

main62420-30360-C1iAZSH21,GWS224..GEXEC,GEXEF202004-202010

BLACK,TRIM2#,3#

main62420-30360-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main62420-30360-E1iARS220,AZSH2#..S,SF202004-202010

NEUTRAL BEIGE,TRIM40

main62420-30360-E1iARS220,AZSH2#..S,SF202004-202010

NEUTRAL BEIGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-30280-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main62413-30280-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main62413-30280-C0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

BLACK,TRIM2#,4#

main62413-30280-C0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62413-30280-C0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

BLACK,TRIM2#,3#

main62413-30280-C0iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

BLACK,TRIM2#

main62413-30280-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main62413-30280-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iARS220,AZSH21..RS,RSB201806-202204

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-30200-C0iGWS224..S;ARS220,AZSH2#..B,G,GF201806-202010

BLACK,TRIM2#,3#,4#

main62414-30200-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main62414-30200-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62414-30200-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main62414-30200-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main62414-30200-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main62414-30200-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main62414-30200-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-09240iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF201806-202204

62471AGARNISH, ROOF SIDE, INNER RH

main62471-30600-B0iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

LT. GRAY,TRIM1#

main62471-30600-C1iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202204

BLACK,TRIM2#

main62471-30600-C1iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62471-30600-C1iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

BLACK,TRIM1#,2#,3#,41

main62471-30600-C1iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

BLACK,TRIM2#,3#

main62471-30600-C1iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

BLACK,TRIM0#,2#

main62471-30600-C1iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

BLACK,TRIM2#,4#

main62471-30600-E0iARS220,AZSH2#..S,SF201806-202010

NEUTRAL BEIGE,TRIM4#

main62471-30600-E0iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF201806-202010

NEUTRAL BEIGE,TRIM40

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-10161iARS220,AZSH2#,GWS224201806-202204

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iARS220,AZSH2#,GWS224201806-202204

62472AGARNISH, ROOF SIDE, INNER LH

main62472-30570-B0iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

LT. GRAY,TRIM1#

main62472-30570-C1iGWS224..S;ARS220,AZSH2#..B,G,GF,RSB201806-202010

BLACK,TRIM2#,3#

main62472-30570-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202204

BLACK,TRIM2#

main62472-30570-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62472-30570-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,41

main62472-30570-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main62472-30570-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#,4#

main62472-30570-E0iARS220,AZSH2#..S,SF201806-202010

NEUTRAL BEIGE,TRIM40

main62472-30570-E0iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF201806-202010

NEUTRAL BEIGE,TRIM4#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010iARS220,AZSH2#,GWS224201806-202204

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-05171iAZSH2#,GWS224201806-202204

62551FGARNISH, REAR SEAT SIDE, RH

main62551-30420-C0iAZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

BLACK,TRIM2#,4#

main62551-30420-C0iAZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

BLACK,TRIM1#,2#,3#,4#

main62551-30420-C0iAZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62551-30420-C0iAZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

BLACK,TRIM2#,3#,4#

main62551-30420-C0iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

BLACK,TRIM1#,2#,4#

main62551-30420-C0iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

BLACK,TRIM2#

main62551-30420-C0iAZSH21..B,RSF;AZSH20..B,RS,RSB202011-202204

BLACK,TRIM0#,2#

main62551-30430-C0iARS220..B,G201806-202010

BLACK,TRIM2#,3#

main62551-30430-C0iARS220..B,G201806-202010

BLACK,TRIM1#,2#,3#,4#

main62551-30430-C0iARS220..B,G201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62551-30430-C0iARS220..B,G201806-202010

BLACK,TRIM2#,3#,4#

main62551-30430-C0iARS220..RS202011

BLACK,TRIM2#

main62551-30430-C0iARS220..RSADV202011-202204

BLACK,TRIM0#,2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-30340-C0iGWS224..S;AZSH2#..G,GF201806-202010

BLACK,TRIM2#,3#,4#

main62552-30340-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main62552-30340-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main62552-30340-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62552-30340-C0iAZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main62552-30340-C0iAZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main62552-30340-C0iAZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

main62552-30350-C0iARS220..B,G201806-202010

BLACK,TRIM1#,2#,3#,4#

main62552-30350-C0iARS220..B,G201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62552-30350-C0iARS220..B,G201806-202010

BLACK,TRIM2#,3#,4#

main62552-30350-C0iARS220..RSB201806-202010

BLACK,TRIM2#,3#

main62552-30350-C0iARS220..RSADV202011-202204

BLACK,TRIM0#,2#

main62552-30350-C0iARS220..RS202011

BLACK,TRIM2#

62553AGARNISH, REAR SEAT SIDE, NO.2 RH

main62553-30280-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main62553-30280-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main62553-30280-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62553-30280-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main62553-30280-C0iAZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main62553-30280-C0iAZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main62553-30280-C0iAZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

62554AGARNISH, REAR SEAT SIDE, NO.2 LH

main62554-30160-C0iGWS224..S;AZSH2#..G,GF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62554-30160-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main62554-30160-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main62554-30160-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main62554-30160-C0iAZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main62554-30160-C0iAZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main62554-30160-C0iAZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-30010iARS220,AZSH2#,GWS224201806-202204

62567FCLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-30010iARS220,AZSH2#,GWS224201806-202204

62571AGARNISH, ROOF SIDE, INNER LOWER RH

main62571-30010-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main62571-30010-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62571-30010-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main62571-30010-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main62571-30010-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main62571-30010-C0iARS220,AZSH21..RS,RSB202011-202204

BLACK,TRIM2#

main62571-30010-C0iAZSH21..B,RSF;AZSH20..B,RS,RSB202011-202204

BLACK,TRIM1#,2#,4#

main62571-30010-C0iAZSH21..B,RSF;AZSH20..B,RS,RSB202011-202204

BLACK,TRIM0#,2#

62572AGARNISH, ROOF SIDE INNER LOWER LH

main62572-30010-C0iARS220..RSB201806-202010

BLACK,TRIM2#,3#

main62572-30010-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main62572-30010-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62572-30010-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main62572-30010-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main62572-30010-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main62572-30010-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main62572-30010-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

62581CGARNISH, REAR WINDOW SIDE, RH

main62581-30090-C2iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202004

BLACK,TRIM0#,2#,3#,4#,8#

main62581-30090-C2iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202004

BLACK,TRIM2#,3#

main62581-30090-C2iARS220,AZSH2#..S,SF201806-202004

BLACK,TRIM2#

main62581-30090-C2iARS220,AZSH2#..S,SF201806-202004

BLACK,TRIM2#,3#,41

main62581-30090-E1iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF201806-202004

NEUTRAL BEIGE,TRIM4#

main62581-30090-E1iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF201806-202004

NEUTRAL BEIGE,TRIM40

main62581-30110-B0iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

LT. GRAY,TRIM1#

main62581-30110-C1iARS220,AZSH21..RS,RSB202004-202204

BLACK,TRIM2#

main62581-30110-C1iAZSH21,GWS224..GEXEC,GEXEF202004-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62581-30110-C1iAZSH21,GWS224..GEXEC,GEXEF202004-202010

BLACK,TRIM1#,2#,3#,41

main62581-30110-C1iAZSH21,GWS224..GEXEC,GEXEF202004-202010

BLACK,TRIM2#,3#

main62581-30110-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#,4#

main62581-30110-C1iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

BLACK,TRIM0#,2#

main62581-30110-E1iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF202004-202010

NEUTRAL BEIGE,TRIM40

main62581-30110-E1iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF202004-202010

NEUTRAL BEIGE,TRIM4#

62582CGARNISH, REAR WINDOW SIDE, LH

main62582-30080-C2iARS220,AZSH2#..S,SF201806-202004

BLACK,TRIM2#,3#

main62582-30080-C2iAZSH21,GWS224..GEXEC,GEXEF201806-202004

BLACK,TRIM2#

main62582-30080-C2iAZSH21,GWS224..GEXEC,GEXEF201806-202004

BLACK,TRIM0#,2#,3#,4#,8#

main62582-30080-C2iAZSH21,GWS224..GEXEC,GEXEF201806-202004

BLACK,TRIM2#,3#,41

main62582-30080-E1iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF201806-202004

NEUTRAL BEIGE,TRIM40

main62582-30080-E1iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF201806-202004

NEUTRAL BEIGE,TRIM4#

main62582-30100-B0iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

LT. GRAY,TRIM1#

main62582-30100-C1iARS220,AZSH2#..S,SF202004-202204

BLACK,TRIM2#

main62582-30100-C1iARS220,AZSH2#..S,SF202004-202010

BLACK,TRIM0#,2#,3#,4#,8#

main62582-30100-C1iARS220,AZSH2#..S,SF202004-202010

BLACK,TRIM1#,2#,3#,41

main62582-30100-C1iARS220,AZSH2#..S,SF202004-202010

BLACK,TRIM2#,3#

main62582-30100-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#,4#

main62582-30100-C1iAZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF202011-202204

BLACK,TRIM0#,2#

main62582-30100-E1iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF202004-202010

NEUTRAL BEIGE,TRIM40

main62582-30100-E1iGWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF202004-202010

NEUTRAL BEIGE,TRIM4#

64333FCOVER, PACKAGE TRAY TRIM SIDE, RH

main64333-30110-C1iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main64333-30110-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main64333-30110-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main64333-30110-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main64333-30110-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main64333-30110-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main64333-30110-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main64333-30110-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

64349ACOVER, PACKAGE TRAY TRIM SIDE, LH

main64349-30010-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main64349-30010-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main64349-30010-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main64349-30010-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main64349-30010-C1iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main64349-30010-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main64349-30010-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main64349-30010-C1iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-30280-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main67911-30280-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main67911-30280-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main67911-30280-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main67911-30280-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main67911-30280-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main67911-30280-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main67911-30280-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-30290-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

main67912-30290-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main67912-30290-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main67912-30290-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main67912-30290-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main67912-30290-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main67912-30290-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main67912-30290-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-30300-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main67913-30300-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main67913-30300-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main67913-30300-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main67913-30300-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main67913-30300-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main67913-30300-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main67913-30300-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-30300-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main67914-30300-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main67914-30300-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main67914-30300-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main67914-30300-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main67914-30300-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main67914-30300-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main67914-30300-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-30210-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main67915-30210-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main67915-30210-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main67915-30210-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main67915-30210-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main67915-30210-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main67915-30210-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main67915-30210-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-30210-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main67916-30210-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main67916-30210-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main67916-30210-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main67916-30210-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main67916-30210-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main67916-30210-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main67916-30210-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-30270-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main67917-30270-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main67917-30270-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main67917-30270-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main67917-30270-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main67917-30270-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main67917-30270-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main67917-30270-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-30250-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main67918-30250-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main67918-30250-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main67918-30250-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main67918-30250-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main67918-30250-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main67918-30250-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main67918-30250-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

7104

G92DHAFILTER, HV BATTERY INTAKE, NO.1

mainG92DH30100iAZSH2#,GWS224201806-202204

G92DJAFILTER, HV BATTERY INTAKE, NO.2

mainG92DJ30010iAZSH2#,GWS224201806-202204

9046709240

main90467-09240

9046710216

main90467-10216

9046718017

main90467-18017

51 parts on this diagram · 1 diagram in section
