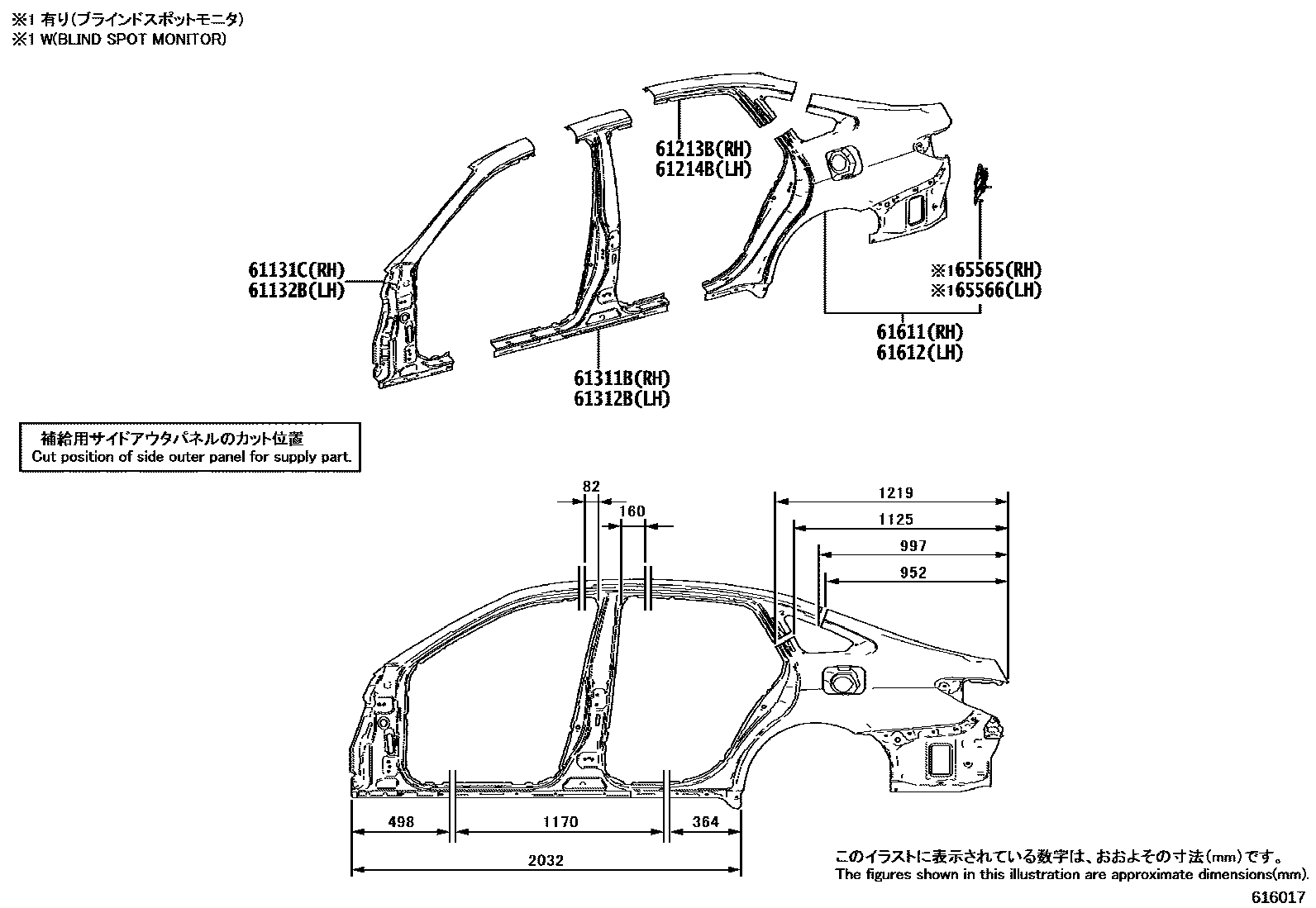

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61131CPILLAR, FRONT BODY, OUTER RH

main61106-30230iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

61132BPILLAR, FRONT BODY, OUTER LH

main61107-30210iARS220,AZSH2#,GWS224201806-202010

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-30030iARS220,AZSH2#,GWS224201806-202010

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-30030iARS220,AZSH2#,GWS224201806-202010

61311BPILLAR, CENTER BODY, OUTER RH

main61311-30320iARS220,AZSH21..RS,RSB202011

61312BPILLAR, CENTER BODY, OUTER LH

main61312-30420iARS220,AZSH21..RS,RSB202011

61611PANEL, QUARTER, RH

main61601-30A10supersedes 61601-30A00iAZSH20..G,RS,RSADV,S;ARS220,AZSH21,GWS224..GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF; AZSH21..B;AZSH20..B,RSB202011-202204

61612PANEL, QUARTER, LH

main61602-30A00supersedes 61602-3A390iARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF; ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV; ARS220,AZSH2#..RS,RSF201806-202010

65565PATCH, SIDE PANEL REAR END, RH

main65565-50010iARS220..RS; AZSH21..RSB202011

65566PATCH, SIDE PANEL REAR END, LH

main65565-50010iARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF; ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV; ARS220,AZSH2#..RS,RSF201806-202010

10 parts on this diagram · 3 diagrams in section
