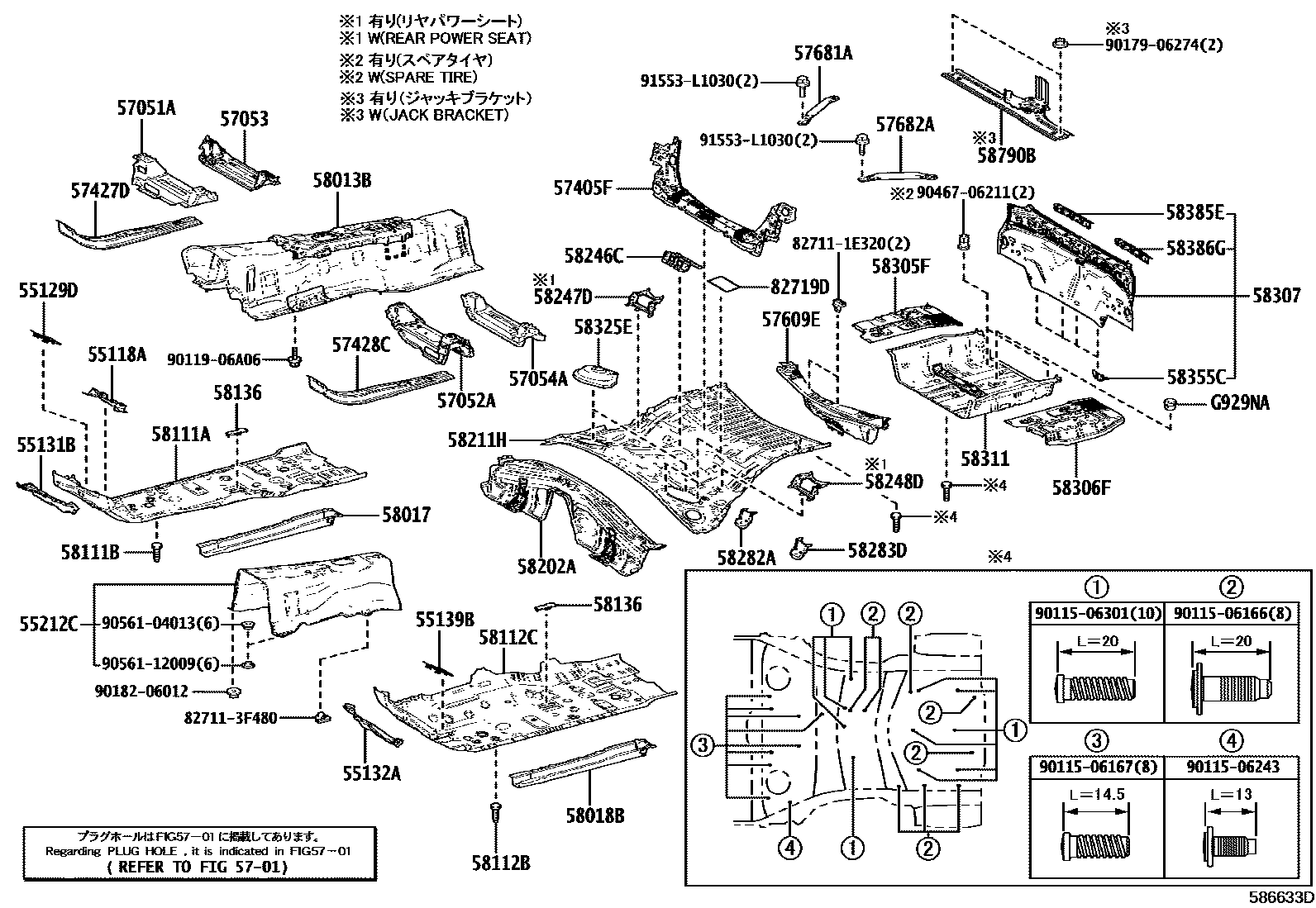

FLOOR PAN & LOWER BACK PANEL

0001 1������&����������� 0002 1������&����������� 0003 1������&����������� 0004 1�����������

55118AEXTENSION, DASH PANEL, RH

main55118-11011iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

55129DCOVER, DASH PANEL HOLE, RH

main55129-11010iARS220,AZSH2#,GWS224201806-202010

55131BREINFORCEMENT, TOE BOARD, RH

main55131-30120iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

55132AREINFORCEMENT, TOE BOARD, LH

main55132-30050iARS220,AZSH2#,GWS224201806-202010

55139BCOVER, DASH PANEL HOLE, LH

main55139-11010iARS220,AZSH2#,GWS224201806-202010

55212CSILENCER, FRONT PANEL, LOWER

main55212-30230iARS220,AZSH20,GWS224201806-202010

main55212-30240iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

5701HOLE PLUG

→ Go to FIG 57-01

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-30120iARS220,AZSH2#,GWS224201806-202010

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-30120iARS220,AZSH20,GWS224201806-202010

main57052-30130iAZSH21201806-202010

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30090iARS220,AZSH2#,GWS224201806-202010

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30090iARS220,AZSH20,GWS224201806-202010

main57054-30100iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

57405FMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-30081iARS220,AZSH2#,GWS224201806-202010

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-11010iARS220,AZSH2#,GWS224201806-202010

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57428-11010iARS220,AZSH2#,GWS224201806-202010

57609EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH

main57609-30060iAZSH20;AZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

main57609-30070iARS220,GWS224201806-202010

57681ABRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER

main57681-53010iARS220..RS,RSB201806-202004

57682ABRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER LH

main57681-53010iAZSH21..RSB202011

58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER

main58013-30500iARS220,AZSH20,GWS224201806-202010

main58013-30510iAZSH21201806-202010

58017PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH

main58017-30020iARS220,AZSH2#,GWS224201806-202010

58018BPANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH

main58017-30020iARS220,AZSH2#,GWS224201806-202010

58111APAN, FRONT FLOOR, RH

main58111-30915iARS220..RS202011

main58111-30916iAZSH21..B,GEXEF,GF,RSADF,RSF,SF202011-202204

58111BBOLT, WELD(FOR FRONT FLOOR PAN)

main90115-06166×14iARS220,AZSH2#,GWS224201806-202010

58112BBOLT, WELD(FOR FRONT FLOOR PAN, LH)

main90115-06166×16iARS220..RS; AZSH21..RSB202011

58112CPAN, FRONT FLOOR, LH

main58112-30911iAZSH20;ARS220,GWS224..GEXEC,RSADV202011-202204

main58112-30912iAZSH21201806-202010

58136COVER, FRONT FLOOR HOLE

main58136-11010×2iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-30140iARS220,AZSH2#,GWS224201806-202010

58211HPAN, CENTER FLOOR

main58211-30411iARS220,AZSH2#,GWS224..B,G,GF,RS,RSADF,RSADV,RSB,RSF,S,SF201806-202010

main58211-30420iARS220,AZSH2#,GWS224..G,GF,RSADF,RSADV; AZSH21,GWS224..GEXEC,GEXEF202011-202204

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-30020iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

58247DBRACKET, REAR SEAT HINGE, OUTER RH

main58247-30030iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF201806-202010

58248DBRACKET, REAR SEAT HINGE, OUTER LH

main58248-30040iARS220,AZSH2#,GWS224..G,GF,RSADF,RSADV; AZSH21,GWS224..GEXEC,GEXEF202011-202204

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-30040iARS220,AZSH2#,GWS224201806-202010

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-30030iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-30250iARS220,AZSH21..RS,RSB202011

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-30250iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30840iARS220..RS202011

main58307-30850iAZSH21..RSB202011

58311PAN, REAR FLOOR

main58311-30911iAZSH21..RSB202011

main58311-30912iARS220..RS202011

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30060×2iARS220,AZSH2#,GWS224201806-202010

58355CBRACKET, REAR BUMPER ARM

main58355-53030×4iARS220,AZSH2#,GWS224201806-202010

58385EBRACKET, REAR BUMPER COVER, RH

main58385-33060iARS220,AZSH2#,GWS224201806-202010

58386GBRACKET, REAR BUMPER COVER, LH

main58385-33060iARS220,AZSH2#,GWS224201806-202010

58790BCARRIER ASSY, JACK

main58790-30070iARS220201806-202010

82719DCOVER, WIRE HANRESS SERVICE HOLE

main82719-30010×2iARS220,AZSH2#,GWS224201806-202010

G929NAPLUG, BATTERY DRAIN

mainG929N52010iARS220,GWS224201806-202010

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

827113F480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F480

9011506166

main90115-06166

9011506167

main90115-06167

9011506243

main90115-06243

9011506301

main90115-06301

9011906A06

main90119-06A06

9017906274

main90179-06274

9018206012

main90182-06012

9046706211

main90467-06211

9056104013

main90561-04013

9056112009

main90561-12009

91553L1030

main91553-L1030

56 parts on this diagram · 4 diagrams in section
