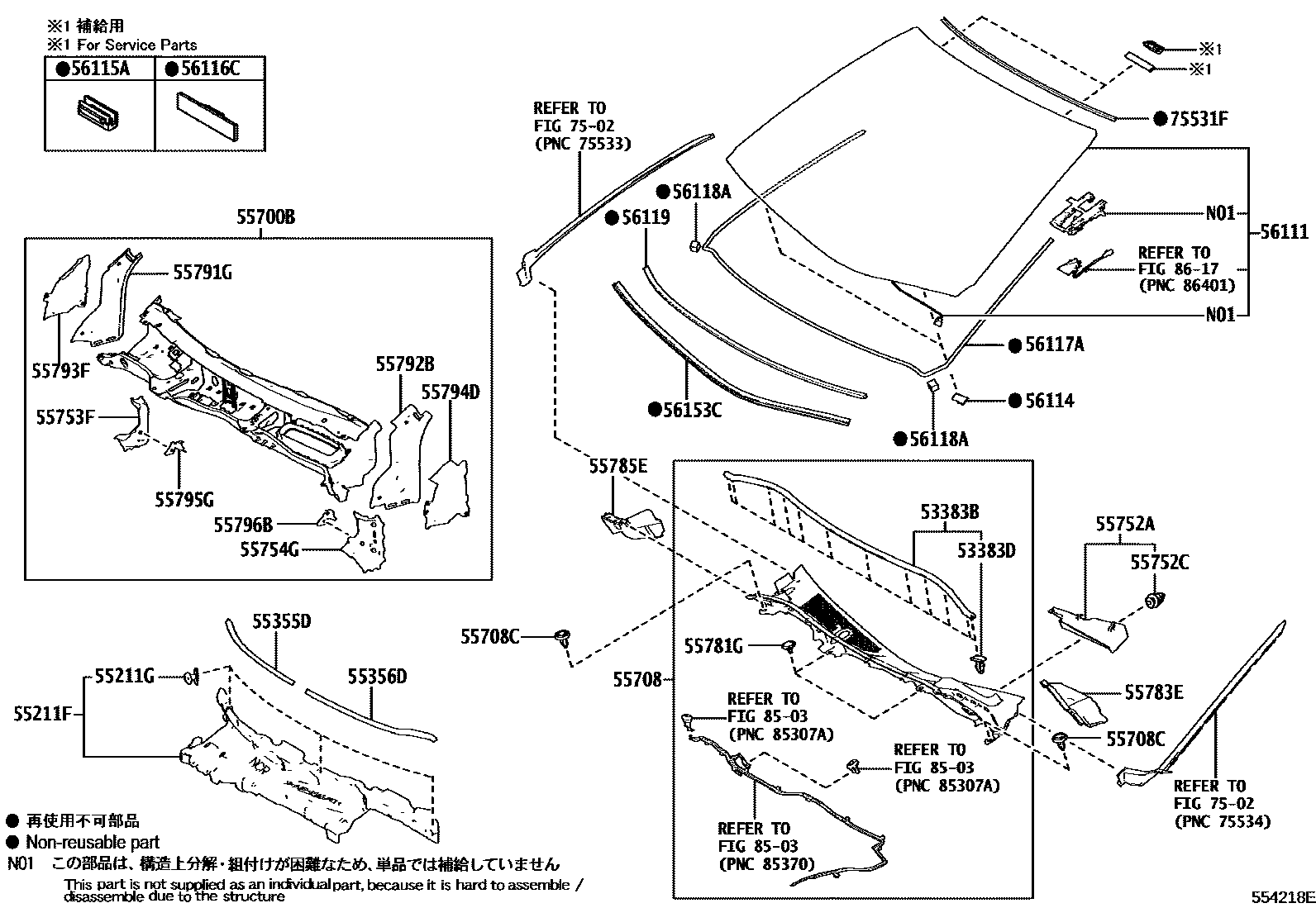

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55211FCOVER, DASH PANEL INSULATOR
55211GCLIP, DASH PANEL INSULATOR COVER
55355DCUSHION, INSTRUMENT PANEL, NO.1
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55752ASHIELD, COWL VENTILATOR SPLASH, LH
55752CCLIP, COWL VENTILATOR SPLASH SHIELD
55753FBRACKET, INSTRUMENT PANEL TO COWL, NO.1
55754GBRACKET, INSTRUMENT PANEL TO COWL, NO.2
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55785EREINFORCEMENT, COWL TOP VENTILATOR LOUVER
55791GCOVER, COWL REINFORCEMENT, UPPER RH
55792BCOVER, COWL REINFORCEMENT, UPPER LH
55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH
55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH
55795GCOVER, COWL REINFORCEMENT, UPPER NO.3 RH
55796BCOVER, COWL REINFORCEMENT, UPPER NO.3 LH
56111GLASS, WINDSHIELD
main56101-3A962iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV; ARS220,AZSH2#..RS,RSF,S,SF; ARS220,AZSH2#..S,SF; GWS224..S201806-201908
main56101-3A963supersedes 56101-3F918iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV; ARS220,AZSH2#..RS,RSF,S,SF; ARS220,AZSH2#..S,SF; GWS224..S201806-201908
main56101-3F912supersedes 56101-3F910iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV; ARS220,AZSH2#..RS,RSF,S,SF; ARS220,AZSH2#..S,SF; GWS224..S201908-201910
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
main56117-64010iARS220,AZSH2#,GWS224; ARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF; ARS220,AZSH2#..RS,RSF,S,SF201806-202010
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
56119SEAL, WINDSHIELD GLASS
56153CMOULDING, FRONT WINDOW, INNER CENTER
7502FRONT MOULDING
75531FMOULDING, WINDSHIELD, OUTSIDE UPPER
8503WINDSHIELD WASHER
8617PRE-COLLISION SYSTEM
34 parts on this diagram · 1 diagram in section
