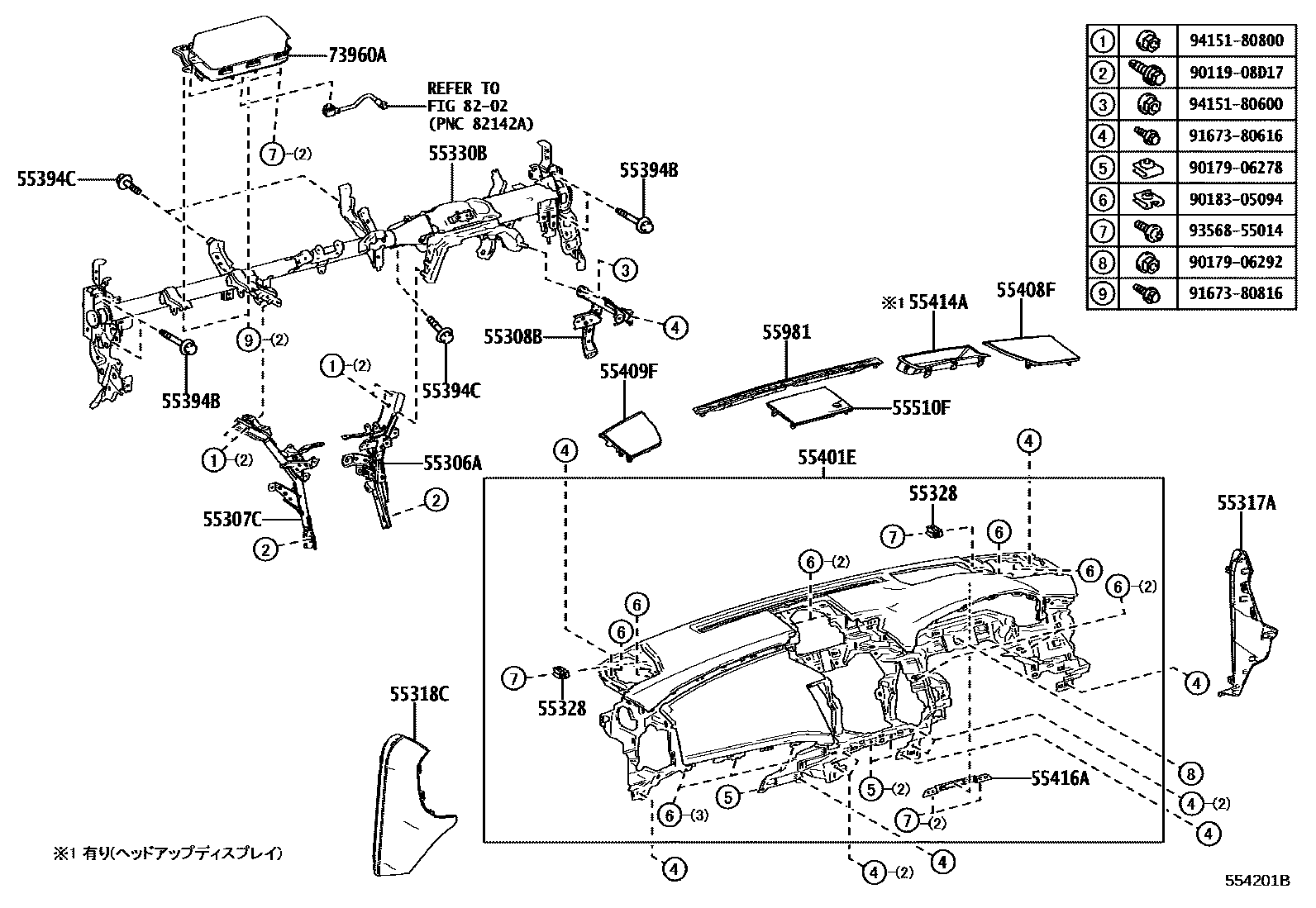

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1���������� 0005 1 0006 1��������� 0007 1����� 0008 1����������

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-30330iARS220,AZSH2#,GWS224201806-202010

main55306-30340iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-30330iARS220,AZSH2#,GWS224201806-202010

main55307-30340iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-30240iARS220,AZSH2#,GWS224201806-202204

55317APANEL, INSTRUMENT SIDE, RH

main55317-30100-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main55317-30100-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,4#

main55317-30100-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main55317-30100-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main55317-30100-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM1#,2#,3#,4#

main55317-30100-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main55317-30100-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main55317-30100-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-30120-C0iGWS224..S;ARS220,AZSH2#..B,G,GF201806-202010

BLACK,TRIM1#,2#,3#,4#

main55318-30120-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM0#,2#,3#,4#,8#

main55318-30120-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#

main55318-30120-C0iAZSH21,GWS224..GEXEC,GEXEF201806-202010

BLACK,TRIM2#,3#,4#

main55318-30120-C0iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF201806-202010

BLACK,TRIM2#,4#

main55318-30120-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM0#,2#

main55318-30120-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM1#,2#,4#

main55318-30120-C0iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iARS220,AZSH2#,GWS224201806-202010

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-30460iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

main55330-30500iARS220,AZSH2#,GWS224201806-202010

55394BBOLT, INSTRUMENT PANEL

main90105-08473iARS220,AZSH2#,GWS224201806-202204

55394CBOLT, INSTRUMENT PANEL

main90105-08406iARS220,AZSH2#,GWS224201806-202204

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-30230-20iGWS224..S;ARS220..B,RSB201806-202010

SOFT BLACK/SOFTBLACK/GRAY,TRIM2#

main55400-30230-20iARS220,AZSH2#..S,SF201806-201910

SOFT BLACK/SOFTBLACK/GRAY,TRIM1#,2#

main55400-30230-20iARS220,AZSH2#..RS,RSF201806-202010

SOFT BLACK/SOFTBLACK/GRAY,TRIM20

main55400-30230-20iARS220,AZSH2#..S,SF201910-202010

SOFT BLACK/SOFTBLACK/GRAY,TRIM1#,20

main55400-30230-21iARS220,AZSH2#..RS,RSF201806-202010

SOFTBLACK/SOFTBLACK/R.BRN,TRIM4#

main55400-30230-21iARS220,AZSH2#..RS,RSF201806-202010

SOFTBLACK/SOFTBLACK/R.BRN,TRIM41

main55400-30230-22iARS220,AZSH2#..RS,RSF201806-202010

SOFT BLACK/N.W.GRAY/GRAY,TRIM0#

main55400-30230-23iARS220..B;GWS224..S201806-202010

SOFTBLACK/NOBLE BRN/TOUPE,TRIM4#

main55400-30230-23iARS220..B;GWS224..S201806-202010

SOFTBLACK/NOBLE BRN/TOUPE,TRIM40

main55400-30230-24iARS220,AZSH2#..RS,RSF201806-202010

SOFT BLACK/BLUE/GRAY,TRIM8#

main55400-30230-25iARS220,AZSH2#..RS,RSF,S,SF201910-202010

SOFT BLACK/SOFT BLACK/RED,TRIM20

main55400-30230-C8iARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF201806-202010

SOFTBLACK/TERRAROSSA/GRAY,TRIM3#

main55400-30230-C9iARS220,AZSH2#..RS,RSF201806-202010

SOFT BLACK/DK.ROSE/GRAY,TRIM21

main55400-30240-20iARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF201806-202010

main55400-30240-20iARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF201806-202010

SOFTBLACK/TERRAROSSA/GRAY,TRIM3#

main55400-30240-21iARS220,AZSH2#,GWS224..RSADF,RSADV201806-202010

main55400-30240-21iARS220,AZSH2#,GWS224..RSADF,RSADV201806-202010

SOFT BLACK/DK.ROSE/GRAY,TRIM21

main55400-30240-22iGWS224..S;ARS220..B,RSB201806-202010

SOFT BLACK/SOFTBLACK/GRAY,TRIM2#

main55400-30240-22iGWS224..S;ARS220..B,RSB201806-202010

SOFT BLACK/SOFTBLACK/GRAY,TRIM20

main55400-30240-22iGWS224..S;ARS220..B,RSB201806-202010

main55400-30240-22iGWS224..S;ARS220..B,RSB201806-202010

main55400-30240-23iARS220,AZSH2#..S,SF201806-202010

main55400-30240-23iARS220,AZSH2#..RS,RSF201806-202010

SOFTBLACK/SOFTBLACK/R.BRN,TRIM4#

main55400-30240-23iARS220,AZSH2#..RS,RSF201806-202010

main55400-30240-24iARS220,AZSH2#,GWS224..RSADF,RSADV201806-202010

SOFT BLACK/N.W.GRAY/GRAY,TRIM0#

main55400-30240-24iARS220,AZSH2#,GWS224..RSADF,RSADV201806-202010

main55400-30240-25iARS220,AZSH2#..S,SF201806-202010

main55400-30240-25iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF201806-202010

SOFTBLACK/NOBLEBROWN/TOUP,TRIM4#

main55400-30240-25iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF201806-202010

main55400-30240-26iARS220,AZSH2#..RS,RSF201806-202010

main55400-30240-26iARS220,AZSH2#,GWS224..RSADF,RSADV201806-202010

SOFT BLACK/BLUE/GRAY,TRIM8#

main55400-30250-C0iAZSH2#..B,RSB,S,SF202011

BLACK/BLACK/BLACK,TRIM2#

main55400-30250-C1iARS220,AZSH2#..RS,RSF202011

BLACK/BLACK/RED,TRIM21

main55400-30250-C2iARS220,AZSH2#..RS,RSF202011

BLACK/BLACK/GRAY,TRIM20,22

main55400-30250-C3iAZSH2#..S,SF202105-202204

BLACK/BLACK/BROWN,TRIM40

main55400-30250-C3iAZSH2#..S,SF202011-202105

BLACK/BLACK/BROWN,TRIM4#

main55400-30250-C4iAZSH2#..S,SF202011-202204

BLACK/BROWN/GRAY,TRIM1#

main55400-30250-C5iAZSH2#..S,SF202105-202204

BLACK/SOFT BLACK/BROWN,TRIM41

main55400-30260-C0iAZSH21,GWS224..GEXEC,GEXEF202011-202204

BLACK/BLACK/BLACK,TRIM2#

main55400-30260-C0iAZSH21,GWS224..GEXEC,GEXEF202011-202204

BLACK/BLACK/BLACK,TRIM10,2#,4#

main55400-30260-C2iAZSH21,GWS224..GEXEC,GEXEF202011-202204

BLACK/BLACK/GRAY,TRIM10

main55400-30260-C3iAZSH2#..G,GF202011-202204

BLACK/BLACK/BROWN,TRIM4#

main55400-30260-C4iARS220,AZSH2#,GWS224..RSADF,RSADV202011-202204

BLACK/GRAY/TOUPE,TRIM0#

main55400-30260-C5iAZSH2#..G,GF202011-202204

BLACK/BROWN/GRAY,TRIM1#

main55400-30260-C5iAZSH2#..S,SF202011-202204

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-30350iARS220,AZSH2#,GWS224201806-202204

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-30350iARS220,AZSH2#,GWS224201806-202204

55414APANEL, INSTRUMENT CLUSTER FINISH, END

main55414-30260iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV201806-202010

main55414-30260iARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV202011-202204

55416ARETAINER, METER HOOD, NO.1

main55416-30210iARS220,AZSH2#,GWS224201806-202010

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-30160iAZSH20..G,RS,RSADV,S;ARS220,AZSH21,GWS224..GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

main55510-30260iAZSH21..RSB202011-202204

main55510-30310iARS220,AZSH2#,GWS224201806-202010

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30180iARS220,AZSH21..RS,RSB201806-202204

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-30120iARS220,AZSH2#,GWS224201806-202204

8202

9011908D17

main90119-08D17

9017906278

main90179-06278

9017906292

main90179-06292

9018305094

main90183-05094

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

27 parts on this diagram · 8 diagrams in section
