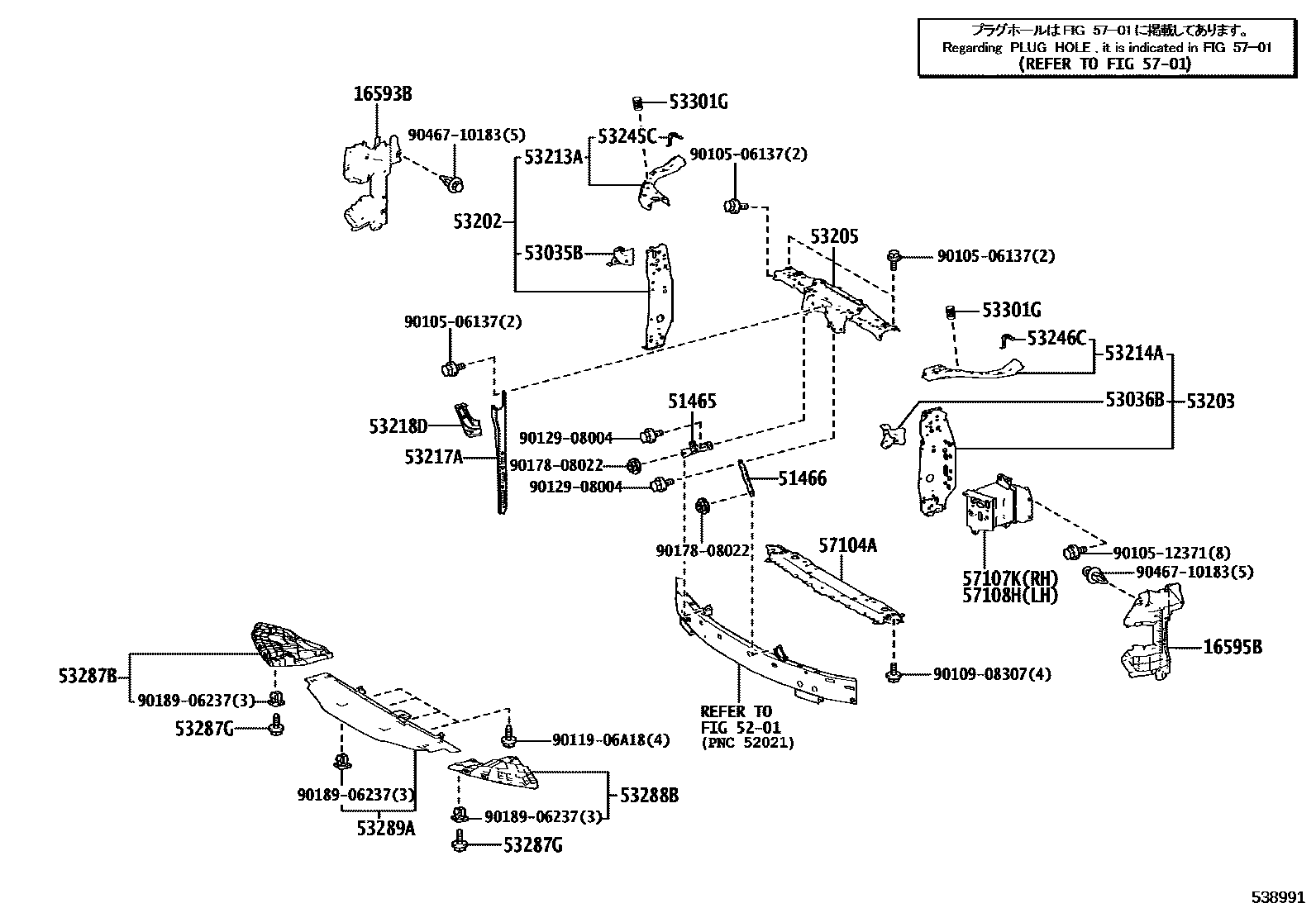

FRONT FENDER APRON & DASH PANEL

0001 1�������&����������� 0002 1���������� 0003 1���������� 0004 1���������� 0005 1���������

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-31040iA25AFXS..AZSH20;A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-31030iA25AFXS..AZSH20;A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

51465BRACE, RADIATOR SUPPORT, UPPER RH

main51465-30010iARS220,AZSH2#,GWS224201806-201902

main51503-30040iARS220..RSADV202110-202204

51466BRACE, RADIATOR SUPPORT, UPPER LH

main51465-30010iARS220,AZSH2#,GWS224201806-202010

main51503-30040iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202110-202204

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53035BBRACKET SUB-ASSY, HEADLAMP MOUNTING, RH

main53035-30070iARS220,AZSH2#,GWS224201806-202010

53036BBRACKET SUB-ASSY, HEADLAMP MOUNTING, LH

main53036-30070iARS220,AZSH2#,GWS224201806-202010

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-30907iARS220,AZSH2#,GWS224201806-202010

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-30907iARS220,AZSH2#,GWS224201806-202010

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-30110iARS220,AZSH2#,GWS224201806-201905

main53205-30111iARS220,AZSH2#,GWS224201905-202010

53213ASUPPORT, RADIATOR, UPPER RH

main53213-30905iARS220,AZSH2#,GWS224201806-202010

53214ASUPPORT, RADIATOR, UPPER LH

main53214-30906iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

53217ABRACE, HOOD LOCK SUPPORT

main53217-30330iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

53218DEXTENSION, HOOD LOCK BRACE

main53218-30190iARS220,AZSH2#,GWS224201806-202010

53245CBRACKET, HEADLAMP MOUNTING, UPPER RH

main53245-30040iARS220,AZSH2#,GWS224201806-202010

53246CBRACKET, HEADLAMP MOUNTING, UPPER LH

main53246-30030iARS220,AZSH2#,GWS224201806-202010

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-30160iARS220,AZSH2#,GWS224201806-202010

53287GBOLT, NO.1

main90119-06A18×6iARS220,AZSH2#,GWS224201806-202010

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-30160iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-30230iARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF201806-202010

main53289-30260iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF201806-202010

53301GCUSHION, HOOD BUMPER

main53384-50010×2iARS220,AZSH2#,GWS224201806-201809

main90541-15033×2iARS220,AZSH2#,GWS224201810-202010

5701HOLE PLUG

→ Go to FIG 57-01

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-11010iARS220,AZSH2#,GWS224201806-202010

57107KREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-30140iARS220,AZSH2#,GWS224201806-202010

57108HREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-30170iARS220,AZSH2#,GWS224201806-202010

9010506137

main90105-06137

9010512371

main90105-12371

9010908307

main90109-08307

9011906A18

main90119-06A18

9012908004

main90129-08004

9017808022

main90178-08022

9018906237

main90189-06237

9046710183

main90467-10183

33 parts on this diagram · 5 diagrams in section
